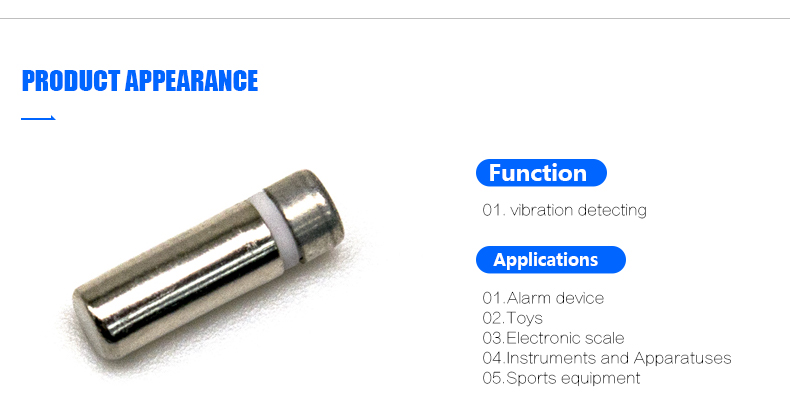

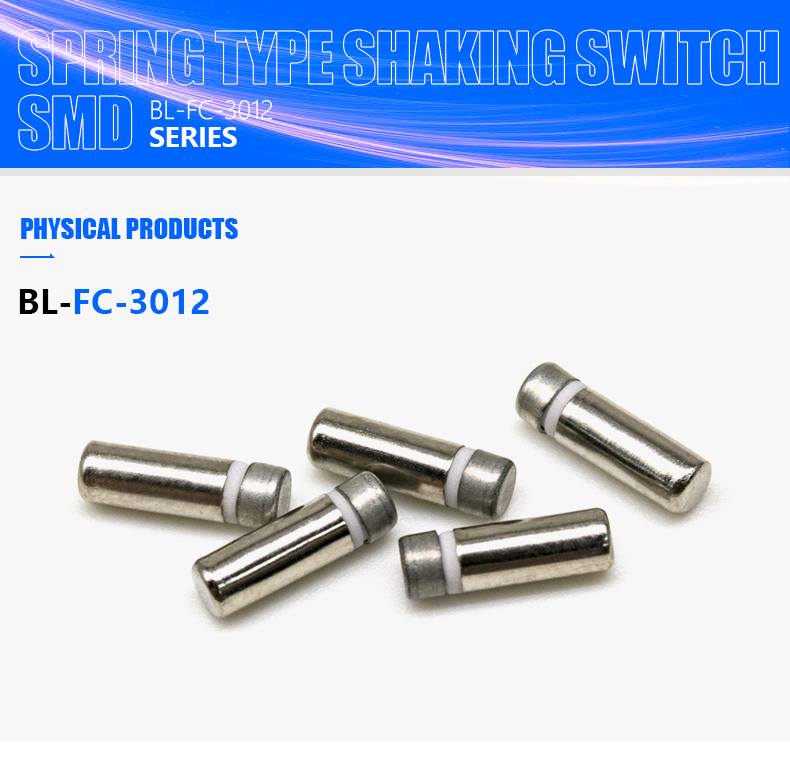

SMD vibration sensor BL-FC-3012 high sensitivity vibration detecting type Switch for power bank, alarm devices

• Model Number:BL-FC-3012
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Contact capacity:5mA 12V DC
• Contact resistance:10 Ω max at initial stage/20 Ω max after service life
• Conductive time:about 2ms
• Closed resistance:>10MΩ
• Insulation resistance:1000MΩ min.
• Temperature range:Operating: -35℃ - 100℃
• Pull force of terminal:500gf for 1 minute
• Conductivity:90% min, 95% Av
• Operating lifespan:500,000 cycles

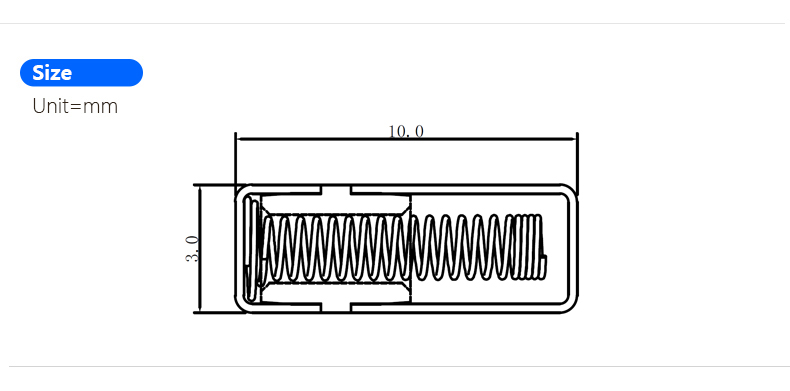

01.BL-FC-3012 series is a small size, spring type, non-directional vibration induction trigger switch, which can be triggered at any angle
02.This series of switches are in an open-circuit OFF state when they are at rest. When they are touched by an external force and reach the corresponding vibration force, or when the moving speed reaches an appropriate off (eccentric) force, the conductive pins will produce instant conduction and become an instant ON state; when external force When it disappears, the switch returns to the open-circuit OFF state. 03.The materials of this series of switches are made of environment-friendly raw materials and meet ROHS requirements.
04The switch life can reach 500,000 times under normal use.

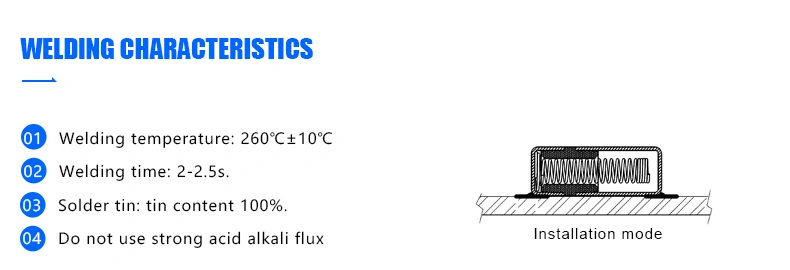

05.The model of this series of switches is the patch type sealing of pins at both ends, which can be waterproof and dustproof and improve the service life.
