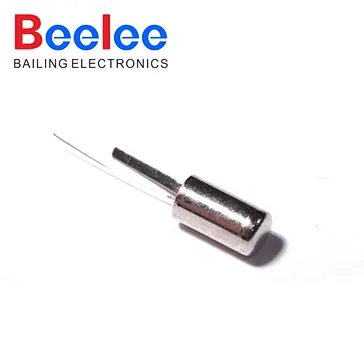

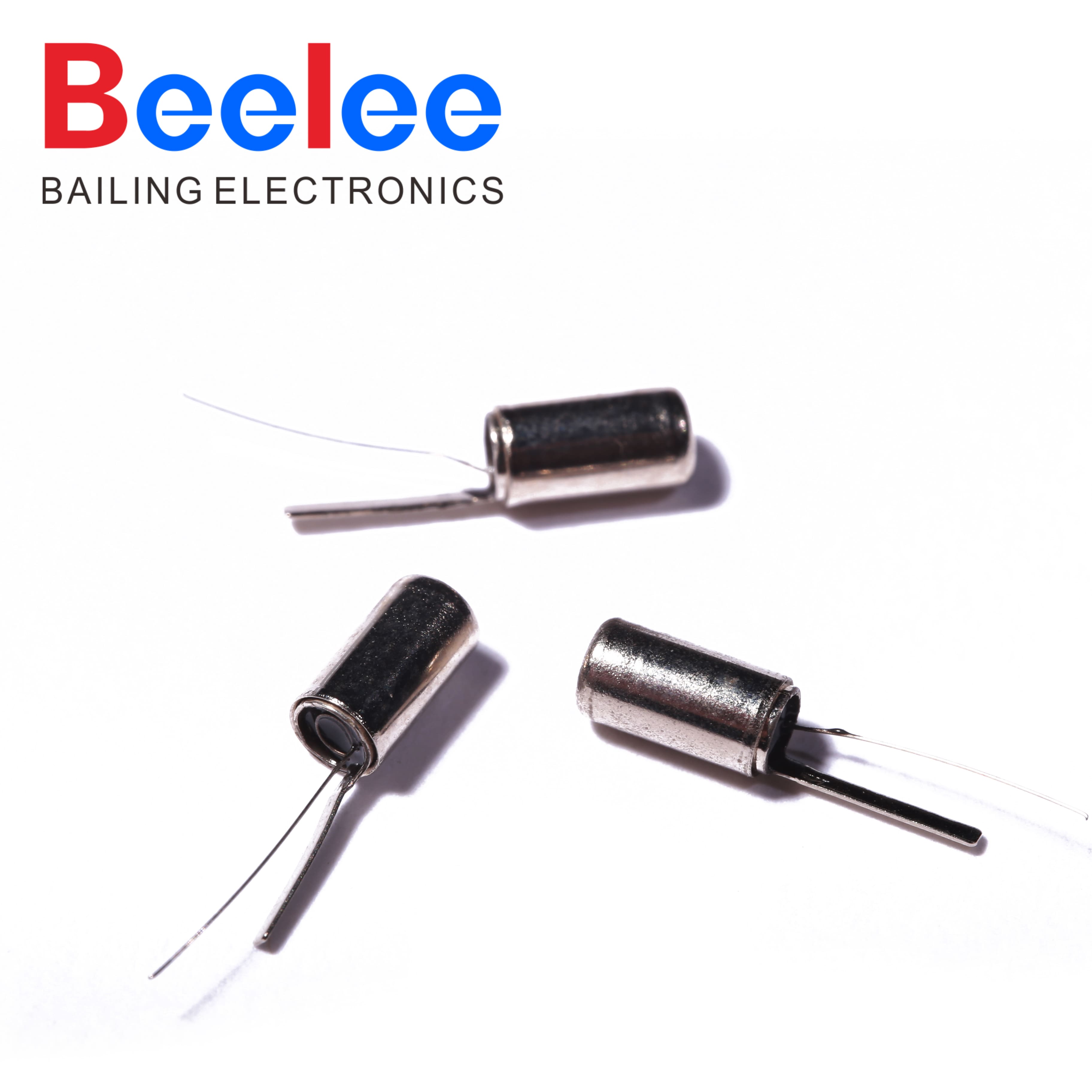

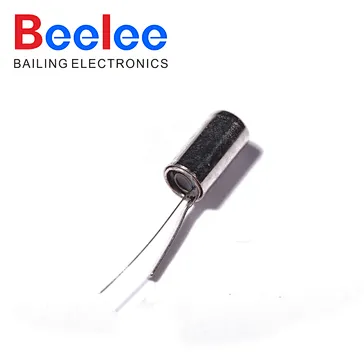

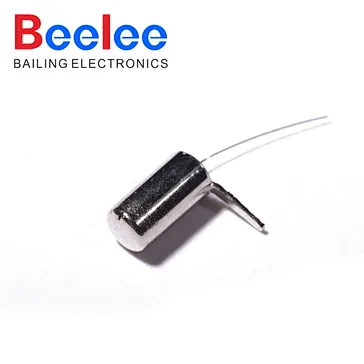

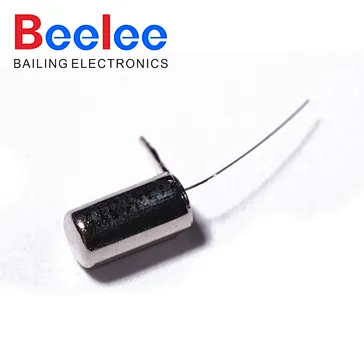

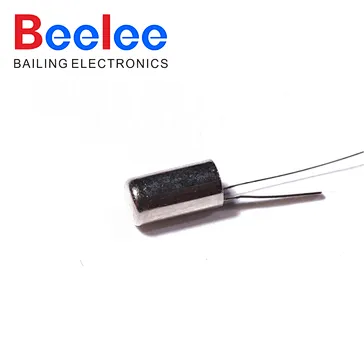

SW-36010 Vibration Switch Tilt Sensor Spring Switch

General products only have sensitivity requirements and no directional requirements. Therefore, you must first understand the user's product purpose before recommending the user to use that type of spring vibration switch. The biggest difference between the ball switch and the spring switch is that: the spring switch senses the magnitude of vibration or centrifugal force, and it is best to be used upright. The ball switch senses the change of angle, so it is best to use it flat. The sensitivity of the ball switch is the size of the sensing angle, and the sensing result is transmitted to the circuit device to start the circuit. In actual devices, there will be differences in the sensing angles of different products. This difference is called sensitivity. Because of the needs of different products, users will require ball switches with different sensing angles to meet the sensitivity of the product. For example, when you pick up a cup with your hand and tilt it at a slight angle, the circuit device must make the IC start the LED to flash or make a sound. Customers will require different induction ball switches to sense the angle and match the electronic circuit. The directivity of the ball vibration switch refers to the direction of the tilt angle, and the direction is roughly the left and right sides.

• SW-36010 vibration switch with shocking trigger function for toys, electronics scales and security devices to trigger in all angle.
• Product name:Vibration switch
• Model:SW-36010
• Max. Current::50MA
• Max. Voltage::12V
• Contact Resistance::<10 ohm
• Insulation Resistance::>10M ohm
• Temperature Range::-40to 80°C
• Pull force of terminal::500gf for 1 minute
• Humidity::95% RH, 40°C for 96 hours
• Operating lifespan::100,000 cycles
• Place of Origin:CN;GUA
• Brand Name:Beelee
• Model Number:SW-36010
