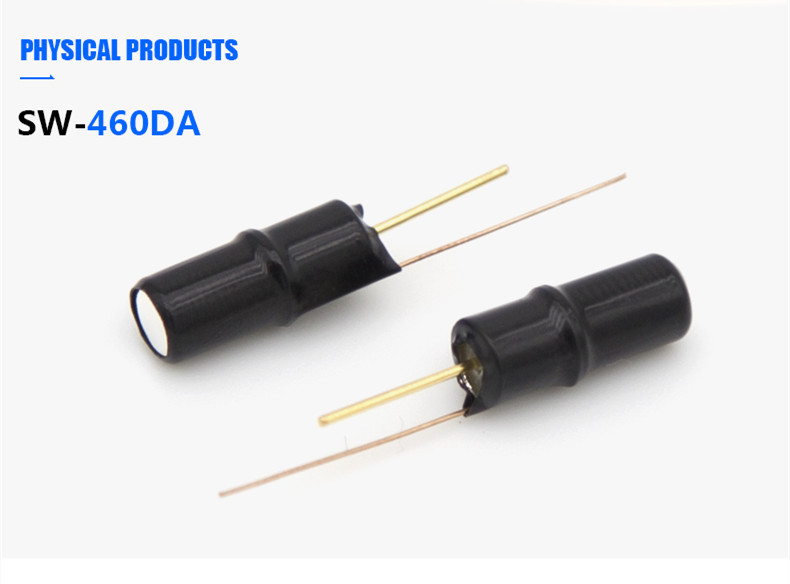

SW-460DA rolling ball tilt switch sensor vibration tilt switch detect

• Model Number:SW-460DA
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Voltage:1-6V
• Current:2uA-10mA
• Closed resistance:<30 Ω
• Insulation resistance:>10 MΩ
• Temperature range:Operating: -40℃ to 85℃
• Salt mist test:95% RH, 40℃ for 24 hours
• Pull force of terminal:500gf for 1 minute

BeeLee Vibration Tilt Switch

Product Description

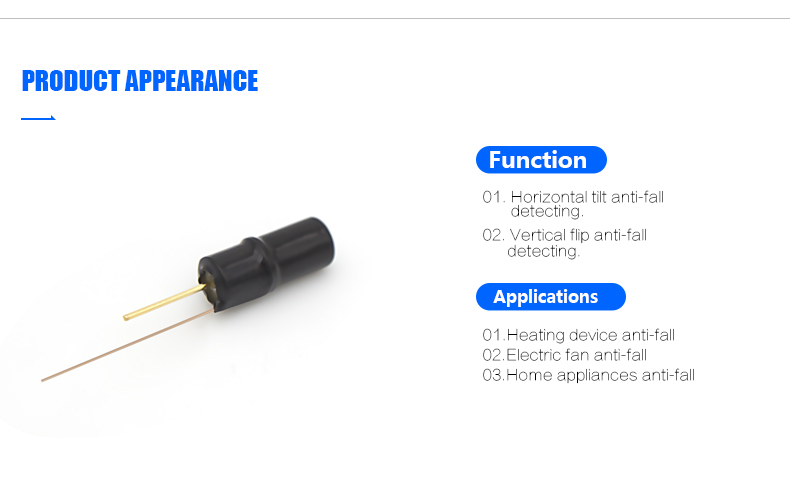

Features & Advantage:

1.SW-460DA is 15° tilt sensitive triggger swtich,in horizontal position shaking easy to trigger.

2.Product completely airtight, waterproof, dustproof.

3.The material compliant with RoHS directive,replace the mercury switch.

Electrical Characteristics

Bill of material

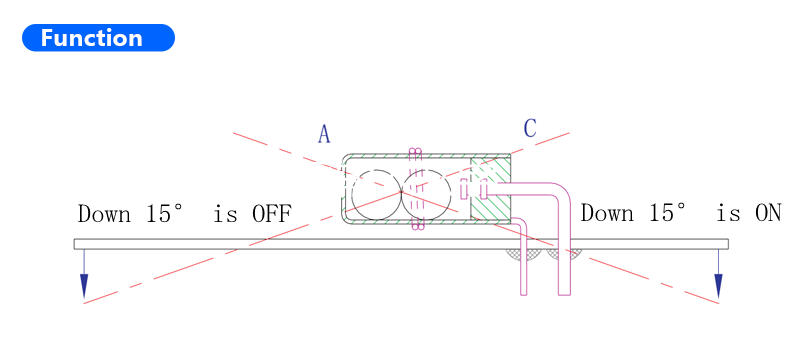

When the products tilt to the cap terminal and the tilt angle is more than 15degree, it will be a openedcircuit “OFF-stated”. When the products of horizontal placed tilt change, the trigger lead terminal is below the horizontal and tilt angle is more than 15degree, it will be a closed circuit “ON-stated”.

Q1:Do you accept OEM or ODM?
A1:Yes,OEM&ODM both acceptable,please contact our salesman for more information.

Q2:Can you send the sample for test?

A2:Yes,we can provide samples for you to test,If you don't know how to get the sample, please contact our sales staff.

Q3:Can you provide help for technical issues?

A3:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

Q4:What are the advantages of your photoelectric switch?

A4:Our photoelectric switch has high resolution,low noise and wide operating temperature range,precision built-in angle guide structure,high triggering angle consistency.

Q5:How many types of switches do you have,and what about your quality?

A5:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
