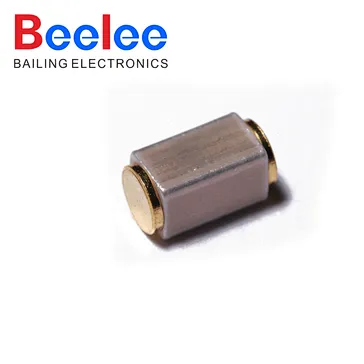

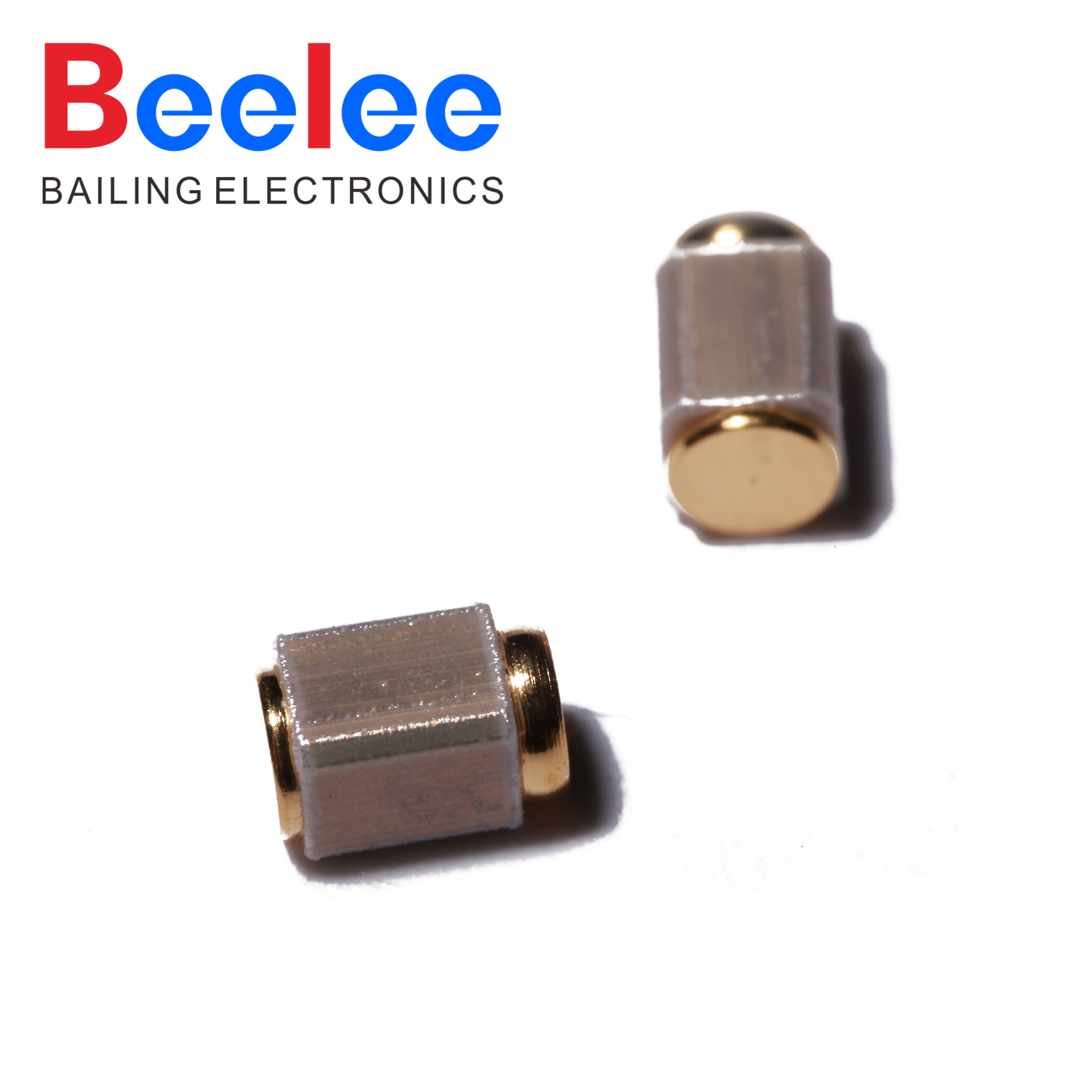

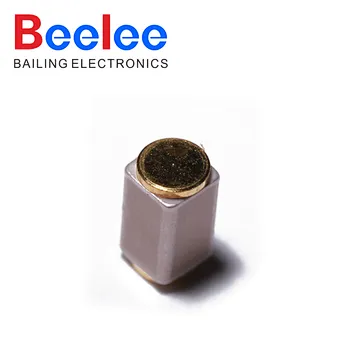

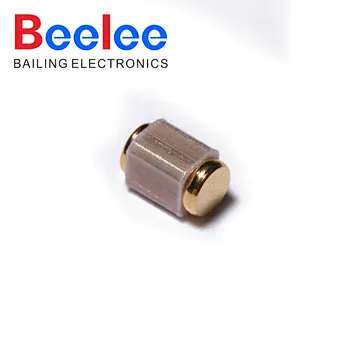

Beelee sensor BL-2500N/BL-3150 SMD Micro Smart installation vibration sensor

BL-3150

Quantity:

Contact Now

add to cart

BL-2500/3150 is Omni vibration trigger component,it can be sensing the different direction of vibration and tilting,
Product compl;etelyh airtight, waterproof ,dustproof .
Switch is sutable for electric car alarms,and all kinds of product need the high sensitive to trigger to arrive the function.
Type:Vibration sensor
Contact Resistance:<10 ohm
Insulation Resistance:>10M ohm
Temperature Range:-40 to 80°C
Pull force of terminal:500gf for 1 minute
Humidity:95% RH, 40°C for 96 hours
Operating lifespan:100,000 cycles
Solder Ability:After flux 260±10°C for 2±0.5 seconds 95% coverage
Differential angle:please refer to the specification
Working lifespan:20,000 cycles
Place of Origin:CN;GUA
Brand Name:BeeLee
Model Number:BL-3150
Max. Current:20MA
Max. Voltage:12V
