Sw-200 BeeLee Tilt Switch series angle tilt switch uv germicidal lamp gravity switch uv disinfection lamp reed pipe

When the tilt switch is subjected to an external force in the horizontal state or the deviation angle reaches a certain angle, the beads inside the tilt switch will tilt and roll, change the original state mode and contact the contact, thereby changing the state of the circuit and outputting an on or off signal (initial state Normally closed becomes open; the initial state is long open becomes closed).

When the external force disappears or the tilt angle returns to the original initial state, the bead contact inside the tilt switch returns to the initial state (normally closed or normally open).

We can judge the working condition of the equipment according to the gravity principle of the center of gravity of the beads inside the tilt switch, and make the beads and the contact point open or close the signal changes to judge the working condition of the equipment, so as to take corresponding measures in time to protect the equipment, and to perform better and safer production operations.

Therefore, we usually call tilt switches as angle switches. Rolling switches, wave-ball switches, steel-ball switches, and balance switches can also be called sensors or sensors.

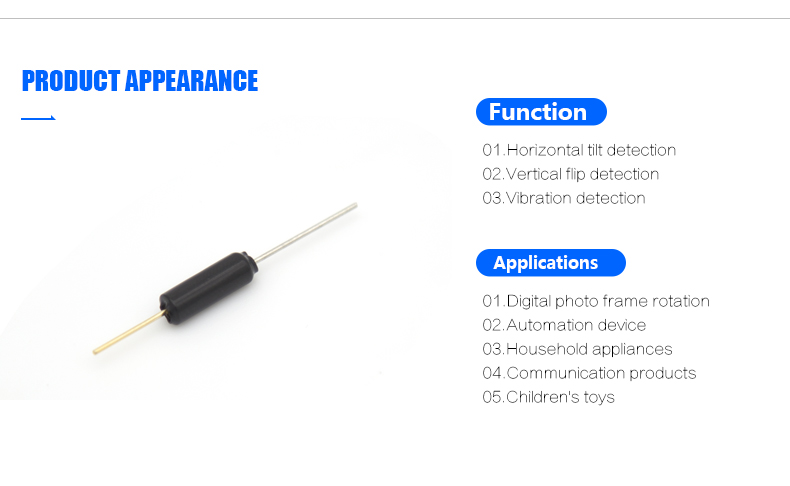

Tilt switches are widely used in electronic products, digital photo frames, household appliances, mice, pedometers, medical equipment and other electronic equipment and consumer electronics products.

• Product name:Tilt sensor
• Color:Black
• Function:Tilt detecting
• Voltage:6V
• Certificate:ISO9001
• Application:Toys
• Model:SW200
• Payment:T/T in advance before shipping
• Current:20mA
• Lead TIme:10days
• Place of Origin:CN
• Certification:ISO9001
• Brand Name:BEELEE
• Model Number:SW200
• Max. Current:20mA
• Max. Voltage:6V

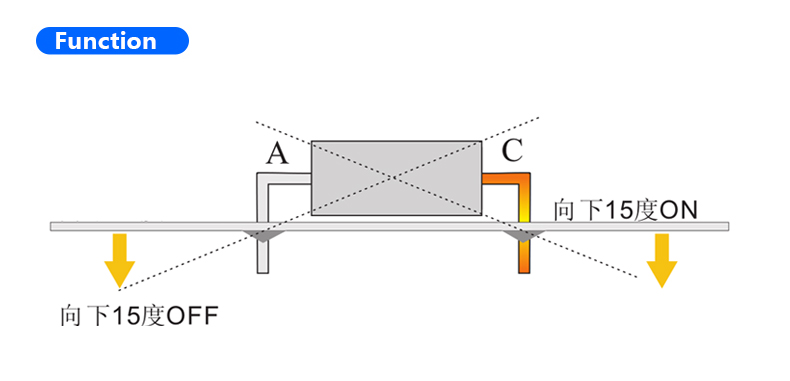

When the product is inclined to the conductive end (silver pin end A) and the inclination angle is greater than 15 degrees, it is in an open-circuit OFF state. When the horizontal state of the product changes, the trigger end (gold-plated pin end C) is lower than the horizontal and the inclination angle is greater When the angle is 15 degrees, the closed circuit is ON.

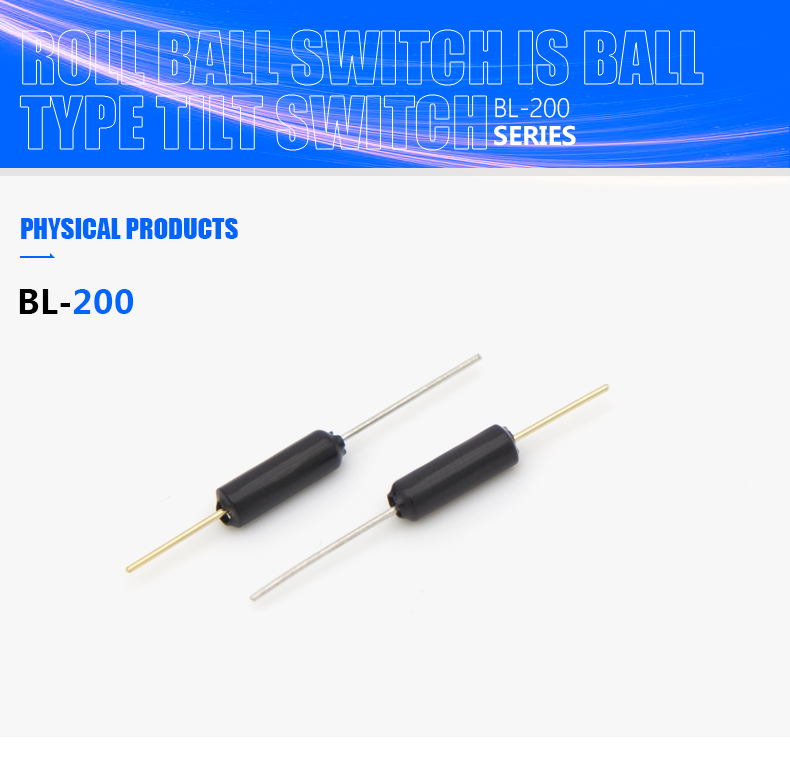

1. SW-200 is a ball-type tilt-sensing unidirectional trigger switch.
2. When the product is inclined to the conductive end (silver pin end A) and the inclination angle is greater than 15 degrees, it is in an open-circuit OFF state. When the horizontal state of the product changes inclination, the trigger end (gold-plated pin end C) is lower than the horizontal inclination angle When the angle is greater than 15 degrees, the closed circuit is ON.
3. When placed horizontally, shaking can be easily triggered. When the silver foot is down, the shaking is not easy to trigger.
4. The product of this specification is a completely sealed package, which is waterproof and dustproof.
5. Under normal use, the switch life can reach 100,000 times.
6. The switch material is ROHS environmentally friendly, which completely replaces the mercury switch.
7. The switch signal is simple, the circuit design is simple, and the price is economical.
