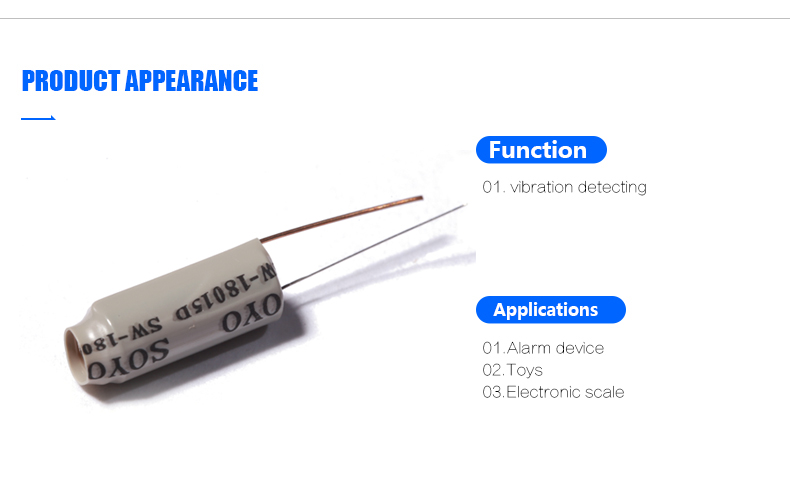

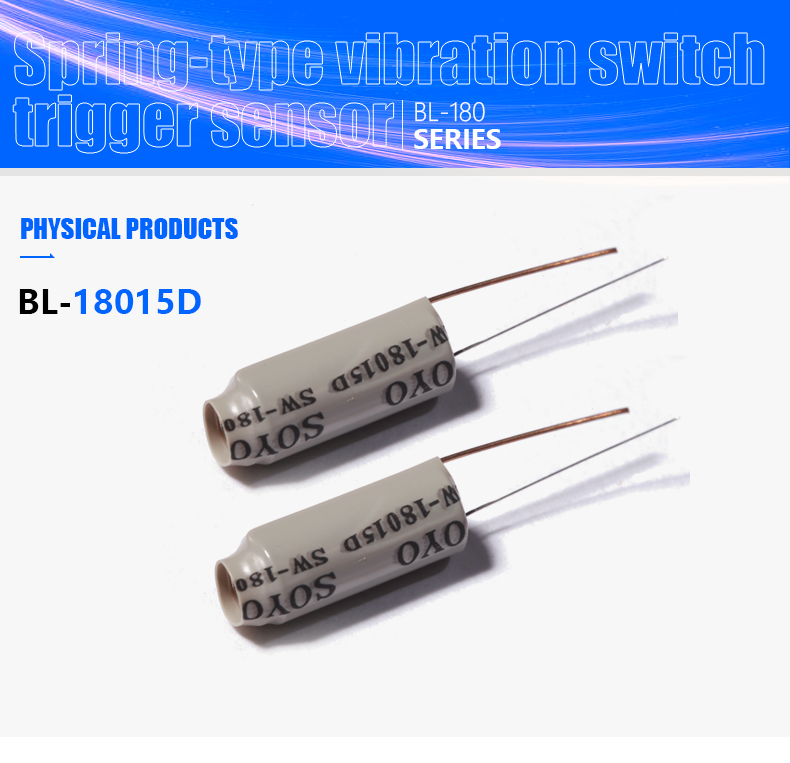

SW-18015D SMD Vibration Switch Miniature Shaking Switch Motion Wake Up Switch

•  SW-18015D vibration switch with motion wake up function for Mosquito killer lamp shake, which is the high sensitive and miniature shaking switch.
• Operating lifespan:200,000 cycles
• Supplier Type:Original manufacturer
• Supplier Type:ODM
• Media Available:datasheet
• Media Available:Photo
• Place of Origin:CN
• Application:vibration detecting
• Brand Name:Beelee
• Operating Temperature:Operating: -40℃ to 80℃
• Current Rating (Amps):20mA
• Voltage Rating:12V
• Rated Voltage:12V

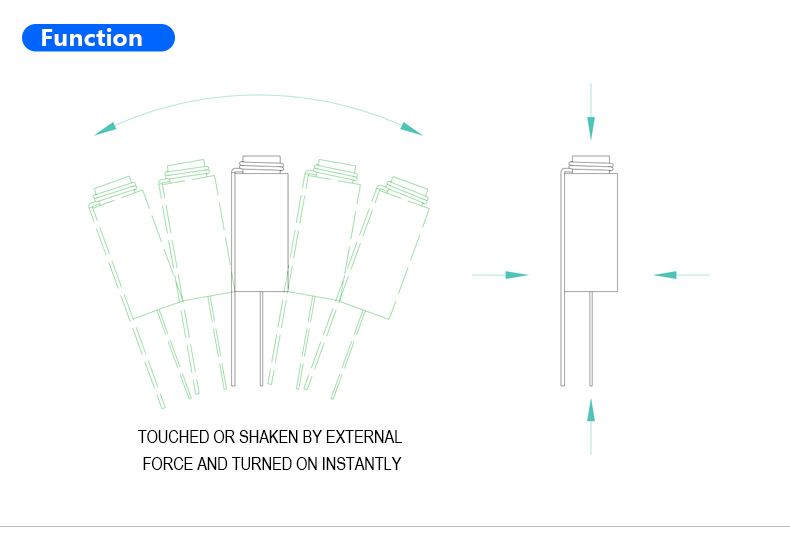

SW-18015D vibration switch miniature shaking switch motion wake up switch

switch is open circuit OFF-state, when it is static, when external force to touch
and corresponding vibration, or movement speed achieve adequate (partial)
centrifugal force, conductive pick feet will produce instant conductivity is instant
ON-state, when external force disappear, switch back to open circuit OFF-state.

01.SW-18015 series are spring type, no directional vibration sensor trigger switch,
any angle can trigger
02.switch is open circuit OFF-state, when it is static, when external force to touch
and corresponding vibration, or movement speed achieve adequate (partial)
centrifugal force, conductive pick feet will produce instant conductivity is instant
ON-state, when external force disappear, switch back to open circuit OFF-state.
03.Switch have the identification P at the bottom, for completely airtight;
04.Material compliant with ROSH directive, replace the mercury switch
05.Trigger high-slowness sensitivity.
