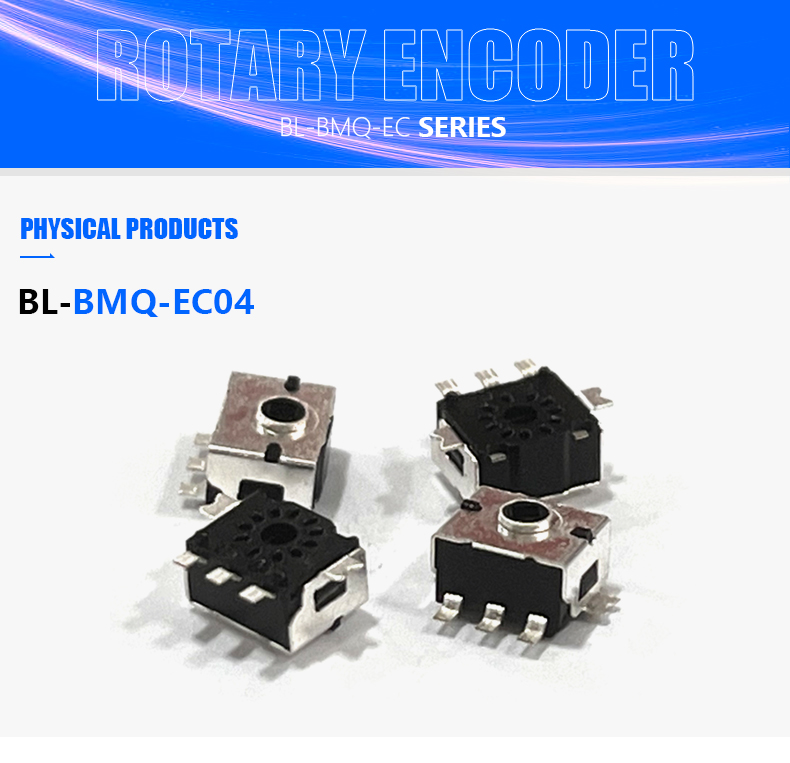

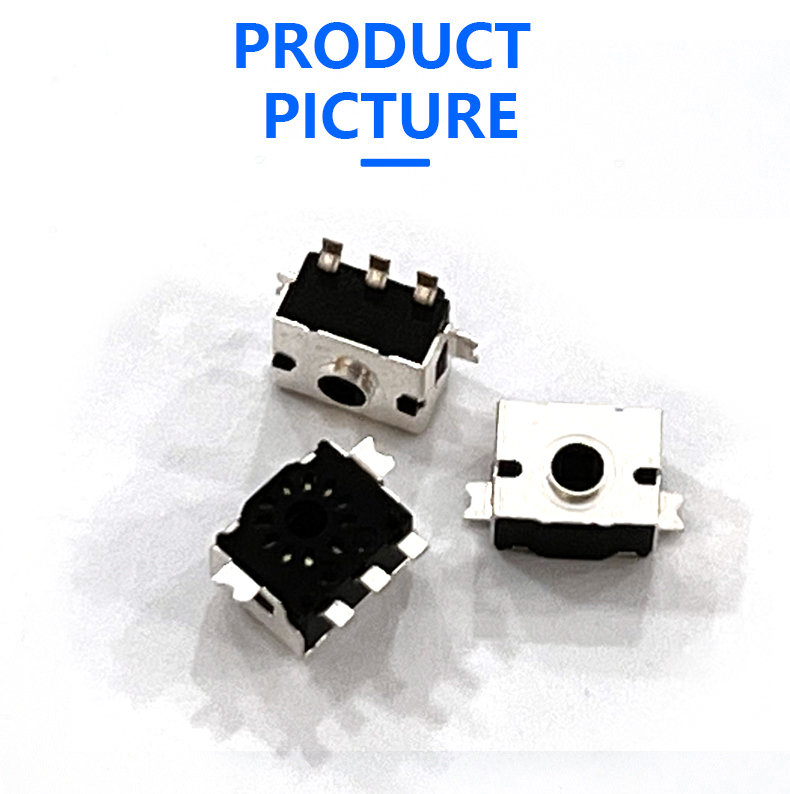

Smart watch special encoder BL-BMQ-EC04 Autonics Encoder 5mm soilid shaft DC 5V 1000ppr incremental rotary Optical Encoder

• Model Number:BL-BMQ-EC04
• Type:ROTARY ENCODER
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Usage:Location
• Theory:Pulse output
• Output:Number of pulses in 360° rotation
• Description:BL-BMQ-EC11A0-031 Rotary Encoder
• Contact Resistance:≤100MΩ at DC 5V 1mA
• Insulation Resistance:100MΩ min at 250VAC
• Operation fore:500±200gf
• Rated voltage:DC 5V
• Operating current:10mA
• Ambient Temperature:15℃ to35 ℃
• Air pressure:Air pressure
• Travel of switch:0.5±0.3mm
• Push-life:30000±200cycles.(0.5 Travel)
• Humidity:25-85%

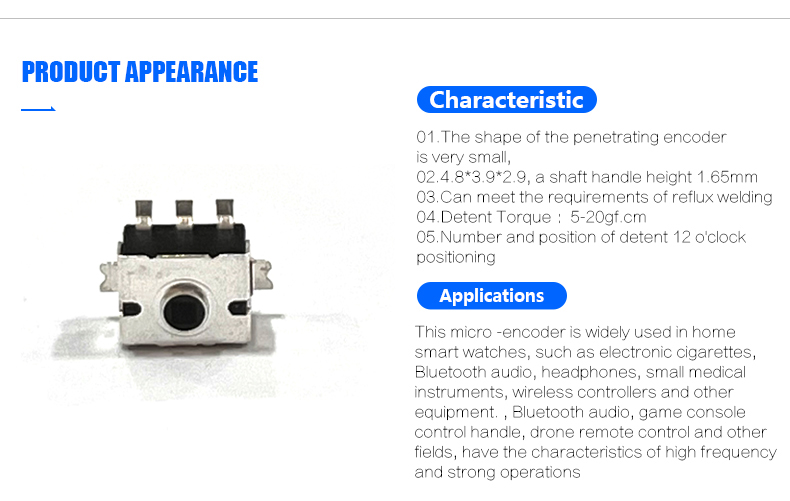

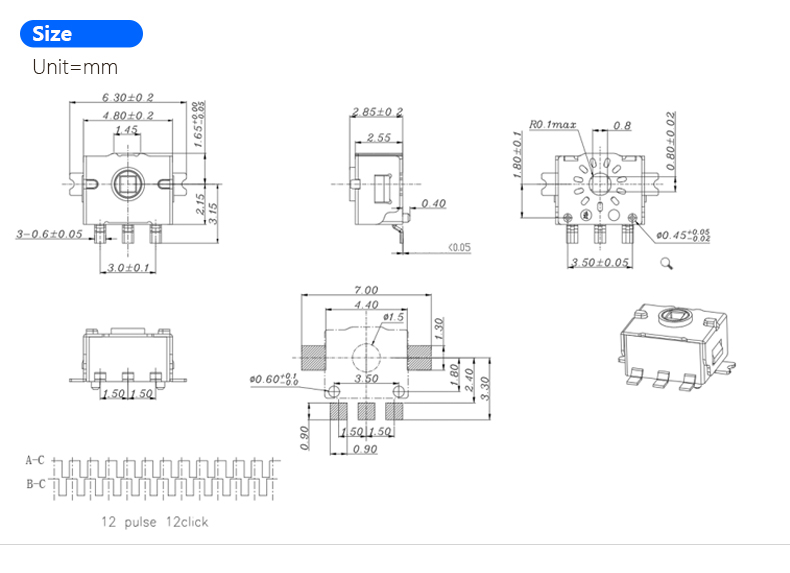

01.The shape of the penetrating encoder is very small, 4.8*3.9*2.9, and 1.65mm height, which can meet the reflow welding requirements;

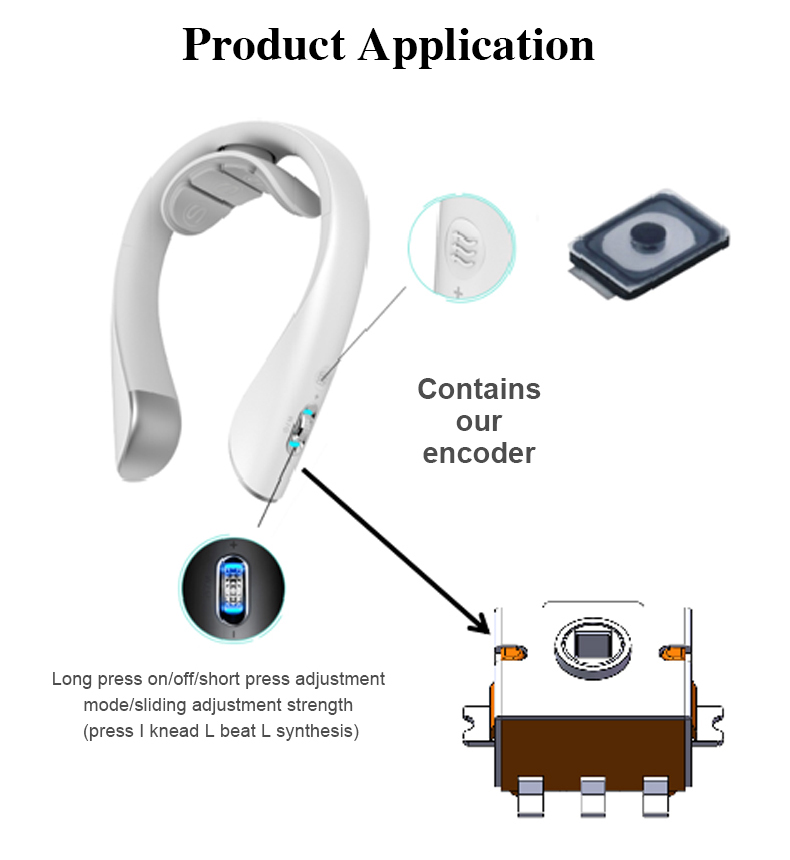

02.This micro -encoder is widely used in home smart watches, such as electronic cigarettes, headphones, small medical instruments, wireless controllers and other equipment. game console control handle, drone remote control and other fields, have the characteristics of high frequency and strong operations

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
