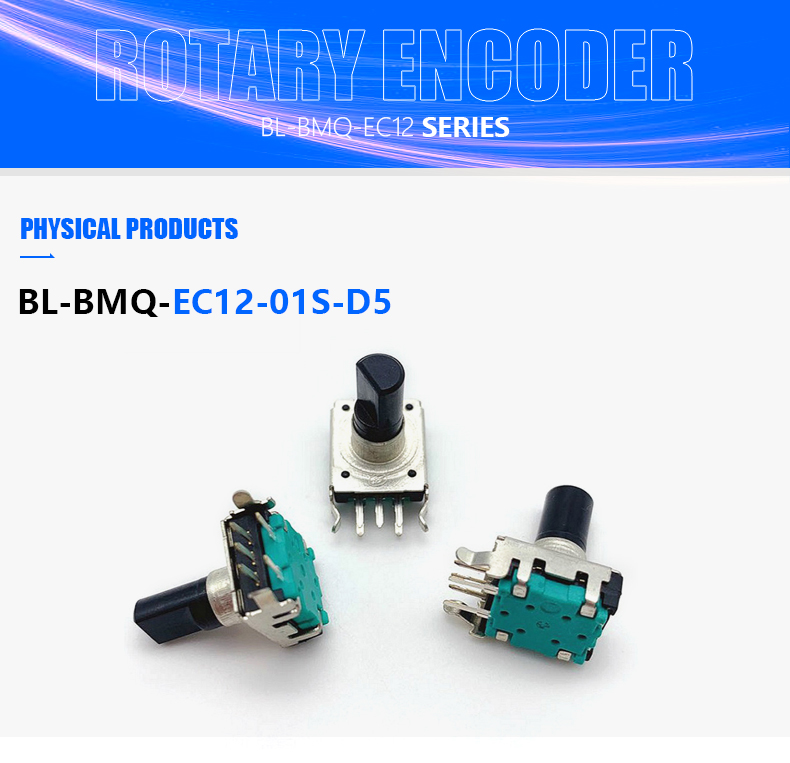

Beelee EC12-01S-D5 rotary encoder switch incremental Encoder
- Model Number:EC12-01S-D5
- Type:Incremental Encoder
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Output:Other
- Description:EC12-01S-D5 ROTARY ENCODER
- Rating Power:DC5V10mA
- Fluttering:T1,T3≤5ms
- Sliding Nosie(Bounce):T2≤2ms
- Dielectric Voltage:For 1 minute or more AC 300V
- Phase Difference:0.15T±0.1T

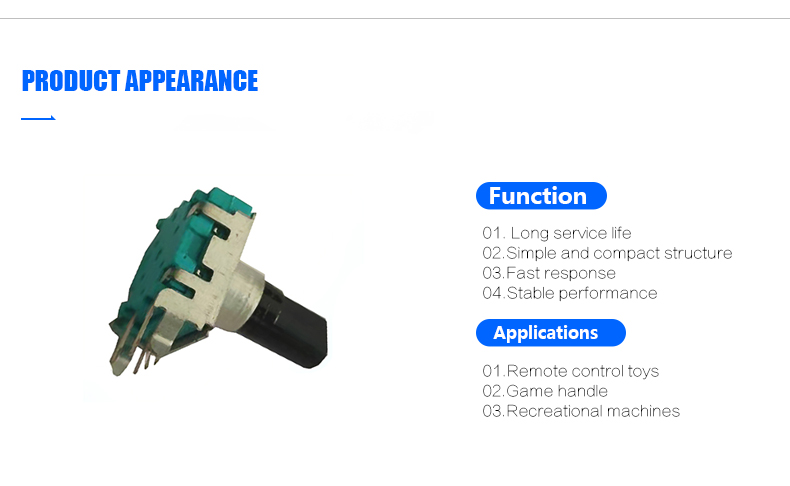

01.12mm size low-profile rotary encoder(incremental type) for microscopic current circuits , used in electronic equipment.
02.Can effectively 10mA current.
03.Operating temperature range -30 ℃ to 80 ℃.
| Rating Power | DC5V10mA |
| Fluttering | T1,T3≤5ms |
| Sliding Nosie(Bounce) | T2≤2ms |
| Dielectric Voltage | For 1 minute or more AC 300V |
| Insulation resistance | More than 10MΩ at DC250 |
| Phase Difference | 0.15T±0.1T |
