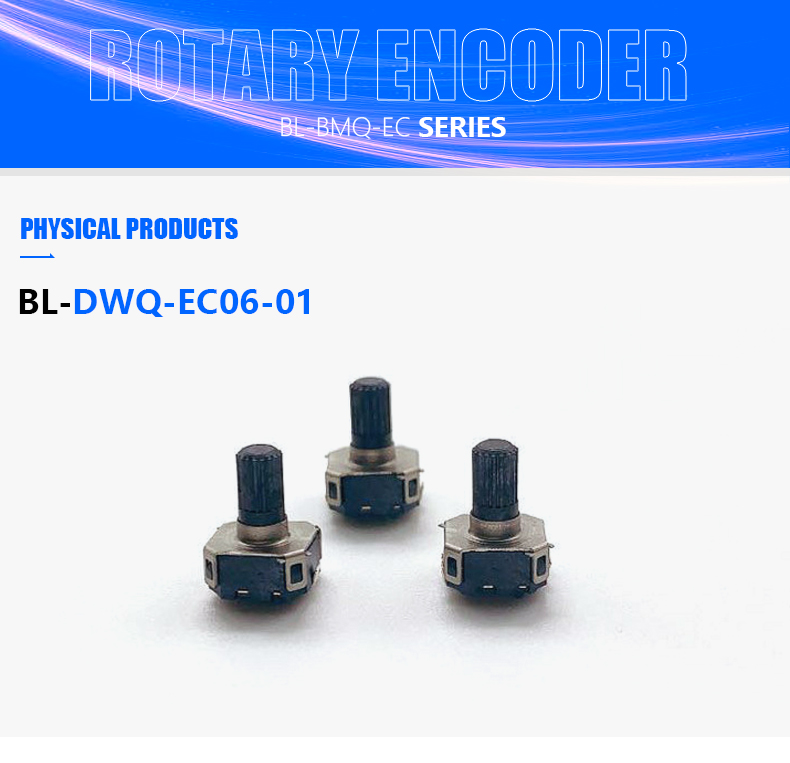

Beelee 10mA rotary encoder EC06-01 incremental rotary encoder for electronic equipment.
- Model Number:EC06-01
- Type:ROTARY ENCODER
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Output:Other
- Description:EC06-01 ROTARY ENCODER
- Rating Power:DC5V10mA
- Fluttering:T1,T3≤5ms
- Sliding Nosie(Bounce):T2≤2ms
- Dielectric Voltage:For 1 minute or more AC 300V
- Phase Difference:0.15T±0.1T
01. low-profile rotary encoder(incremental type) for microscopic current circuits , used in electronic equipment.
02.Can effectively 10mA current.
03.Operating temperature range -30 ℃ to 80 ℃.
| Rating Power | DC5V10mA |
| Fluttering | T1,T3≤5ms |
| Sliding Nosie(Bounce) | T2≤2ms |
| Dielectric Voltage | For 1 minute or more AC 300V |
| Insulation resistance | More than 10MΩ at DC250 |
| Phase Difference | 0.15T±0.1T |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
