Metal ball tilt switch

Rolling ball tilt angle sensor with 45 degree metal ball tilt switch

BL-3300-45
minimum order
1 piece
Quantity:
Contact Now
add to cart

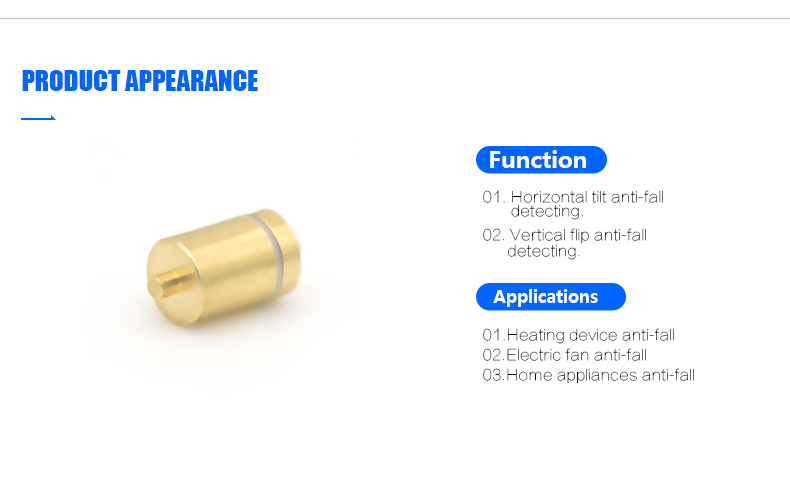

BL-3300-45 is a rolling-ball tilt switch. In the upright position the ball rests away from the contacts and the circuit is open; when the body is tilted in any direction beyond 45°, the ball rolls into position and closes the contact. The housing is fully sealed against water and dust, and the switch contains no mercury — it is a direct replacement for the mercury tilt switches still used in older designs.

Key Specifications

  • Trigger angle: beyond 45° from upright, in any direction
  • Contact state: open when upright, closed when tilted
  • Circuit voltage: 1.5–12 V; current < 20 mA
  • Conduction time: approx. 2 ms
  • Closed-circuit resistance: < 10 Ω
  • Insulation resistance: > 10 MΩ
  • Operating life: 100,000 cycles
  • Cap: brass, silver-plated
  • Ball: stainless steel, silver-plated
  • Body: temperature-resistant nylon

Key Features

  • Single defined threshold at 45°; the BL-3300-25 in the same series switches at 25 ± 10°
  • Fully sealed construction — waterproof and dustproof
  • Passive contact: no supply voltage and no standby current
  • Mercury-free and RoHS compliant
  • Two-wire circuit, simple to design in and inexpensive to assemble

Typical Applications

  • Tilt and tip-over detection on portable equipment
  • Anti-theft and tamper indication on cases, bags and enclosures
  • Attitude sensing in toys, models and educational kits
  • Position feedback on lids, hatches and folding mechanisms

Why Buy from GBeelee

GBeelee is the export brand of Dongguan Bailing Electronics, a national high-tech enterprise with more than 18 years in tilt, vibration and magnetic sensors and over 20,000 customers. The BL-3300 series is produced to RoHS standards, and other trigger angles can be engineered for OEM volumes.

Related product lines:Rolling-ball tilt switches·Full tilt switch range

FAQ

At what angle does it switch?
Beyond 45° of tilt in any direction from upright. The BL-3300-25 in the same series switches at 25 ± 10°, so the two models cover the common thresholds.

Does it contain mercury?
No. It is a rolling-ball type, offered as a mercury-free replacement.

Does it need a power supply?
No. It is a passive mechanical contact — when triggered it simply closes the circuit, so there is no standby current.

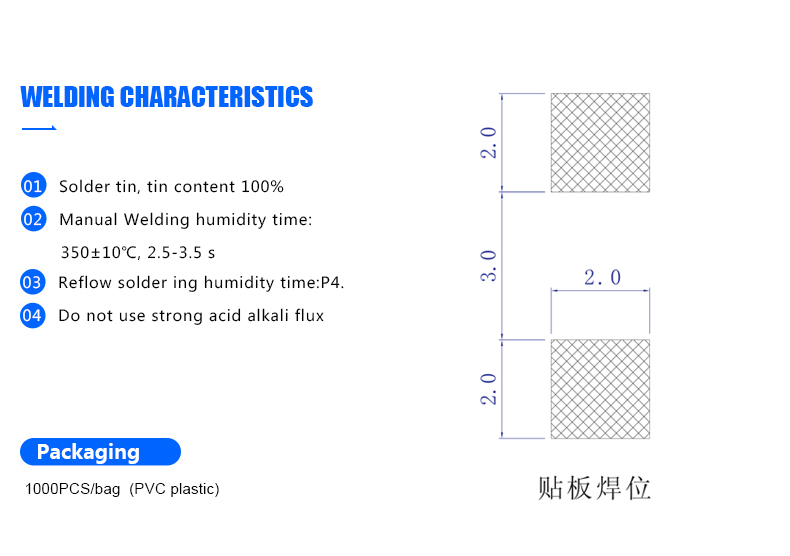

  • Model Number:BL-3300-45
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Voltage:1.5-12V
  • Current:<20mA
  • Conductive time:about 2ms
  • Closed resistance:<10 ohm
  • Open resistance:>10M ohm
  • Copper cap:Brass ,silver-plated
  • Plastic:Temperature resistance nylon
  • Ball:Stainless steel, silver-plated
  • Guide cup:Brass ,silver-plated

When the product upright is in OFF-state, as the products tilt to any direction and exceed 25degrees, switch stay in a disconnect ON-state.

01.BL-3300 is Ball type tilt vibration sensitive switch.
02.When the product upright is in OFF-state, as the products tilt to any direction and exceed 25±10 degrees, switch stay in a disconnect ON-state. 03.Product completely airtight, waterproof, dustproof.
04.In the normal, switch life can reach 100,000 cycles lifespan.
05.Material compliant with ROSH directive, replace the mercury switch.
06.Simple for switch signals and circuit , and economic price.

1Voltage1-6V
2Current<20mA
3Conductive timeabout 2ms
4Closed resistance<30 Ω
5Insulation resistance>10 MΩ
OperatingTemperature-25℃ to 85℃
6Storage Temperature-40℃ to 85℃
7Pull force of terminal500gf for 1 minute
8Humidity95% RH, 40℃ for 96 hours
9Operating lifespan1,00,000 times

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10days
Q6:How long for samples order?
A7: Usually within 24hour
