PCB tilt switch

PCB tilt switch sensor vibration 10 degree tilt angle sensor for outdoor lighting

BL-108H-10, BL-108H-10
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-108H-10, BL-108H-10
  • Place of Origin:Guangdong, China
  • Brand Name:BeeLee
  • Voltage:1-6V
  • Current:2uA-10mA
  • Closed resistance:<30 Ω
  • Insulation resistance:>10 MΩ
  • Copper cap:Brass ,silver-plated
  • Ball:Brass / steel, silver-plated

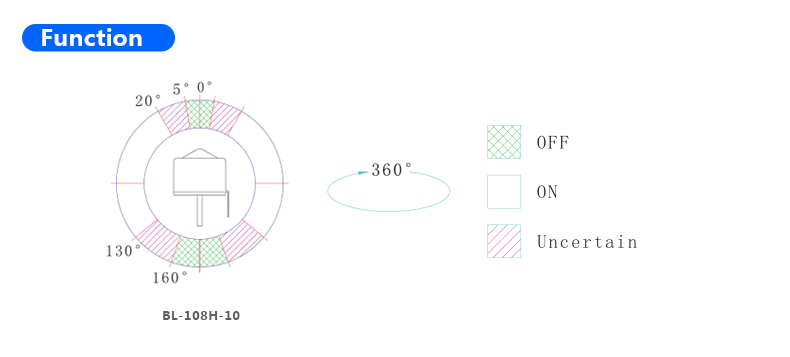

When the product upright is in OFF-state,
as the products tilt to any direction
and exceed 10 +10/-5 degrees, switch stay in a disconnect ON-state.





File NoOFF-STATETilt directionTilt angleON-STATE
BL-108H-5upright/OFFtilt to any
direction		Exceed5 +10/-2°ON
BL-108H-10upright/OFFtilt to any
direction		Exceed10 +10/-5°ON
BL-108H-15upright/OFFtilt to any
direction		Exceed15 +10°ON
BL-108H-20upright/OFFtilt to any
direction		Exceed20 +10°ON
BL-108H-25-x45upright/OFFtilt to any
direction		Exceed25 +10°ON
BL-108H-35upright/OFFtilt to any
direction		Exceed35 +10°ON
BL-108H-45upright/OFFtilt to any
direction		Exceed45 +10°ON
BL-108H-60upright/OFFtilt to any
direction		Exceed60 +10°ON
BL-108H-80upright/OFFtilt to any
direction		Exceed80 +10°ON
BL-108H-90upright/OFFtilt to any
direction		Exceed90 +10°ON

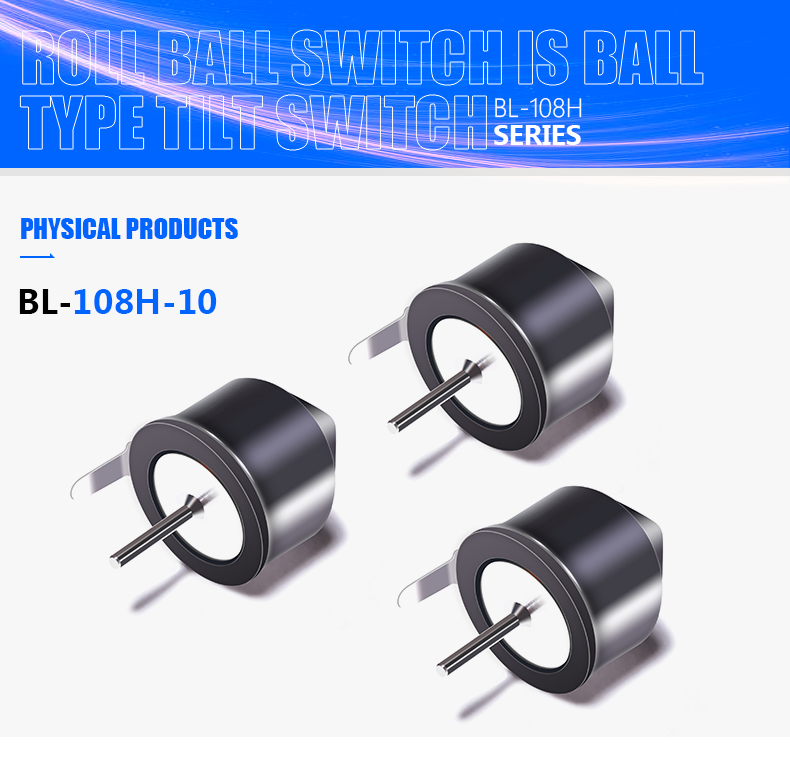

01.BL-108 Series Roll ball switch is ball type tilt switch.
02.When the product is upright, it will be in “OFF-stated”. When the product tilt to any direc
03.tion and more than some degree, the switch will be “ON”.
04.The product totally sealed, waterproof, dustproof.
05.In the normal, Switch lifespan can reach 200,000 cycles.



1Voltage1-6V
2Current<20mA
3Conductive timeabout 2ms
4Closed resistance<30 Ω
5Insulation resistance>10 MΩ
6Temperature rangeOperating: -40℃ to 80℃
7Pull force of terminal500gf for 1 minute
8Salt mist test95% RH, 40℃ for 24 hours
9Operating lifespan100,000 cycles
