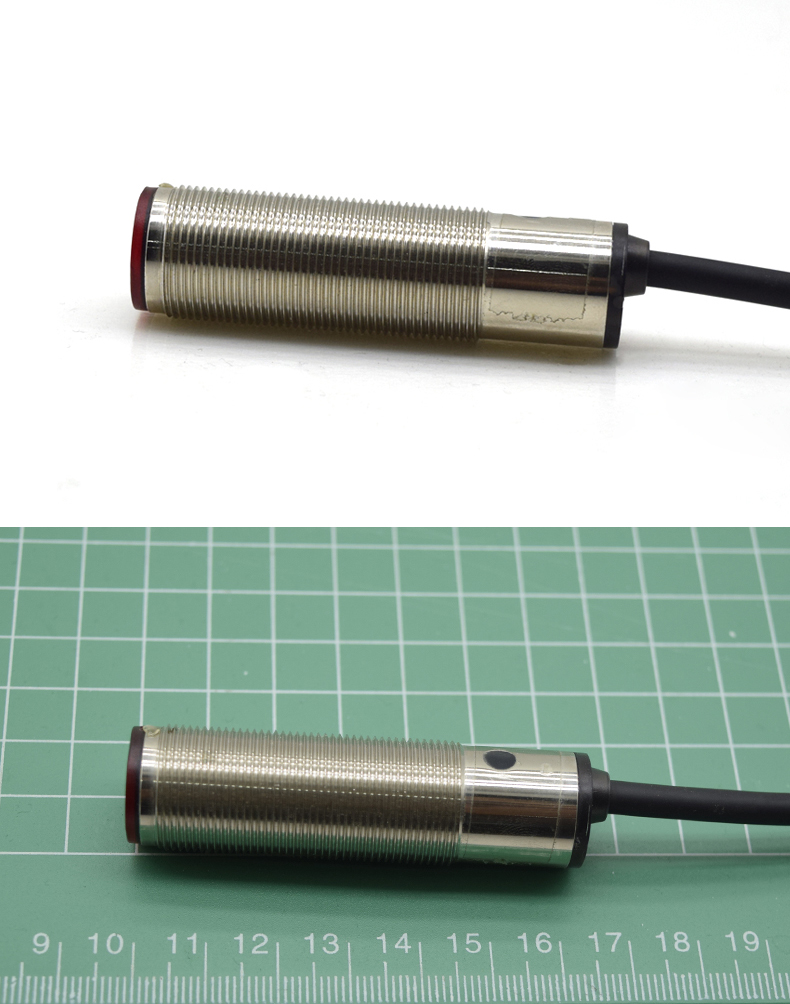

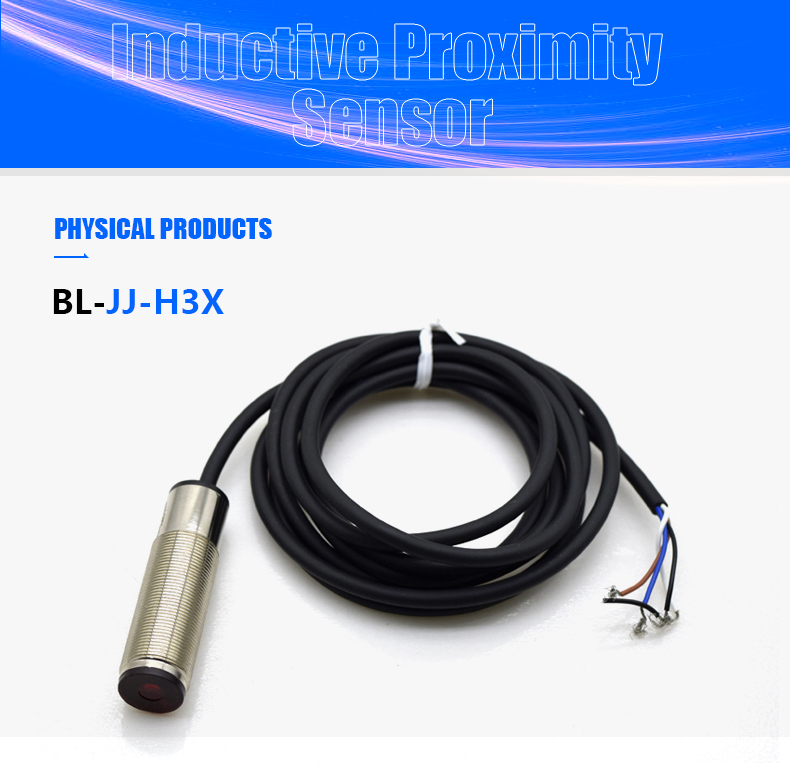

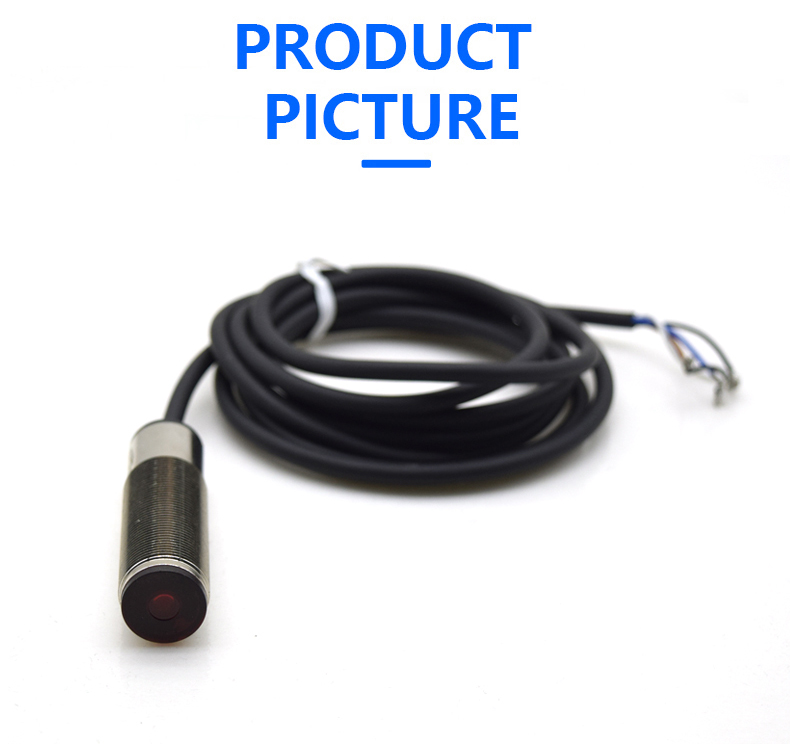

New original GBeelee BL-JJ-H3X-M8 Cylindrical proximity switch buried metal detection switch shielded counting sensor

BL-JJ-H3X-M8

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:Cylinder magnetic switch
Mounting Type:Non contact working mode
Description:Metal proximity switch, Subminiature proximity switch
Model Number:BL-JJ-H3X-M8
Type:Inductive Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Subminiature proximity switch
Output:NPN;PNP
Hysteresis error:1%~15% of sensing distance
Repeat accuracy:Less than 3% of sensing distance
Current consumption:<15mA
Leakage current:<100uA
Residual voltage:Less than 2V
Load current:< 100mA
Indicator light:Yellow LED
Connection:Standard cable 2m
Ambient temperature:work and store:-25℃~+70℃
Ambient humidity:work and store:35~95%

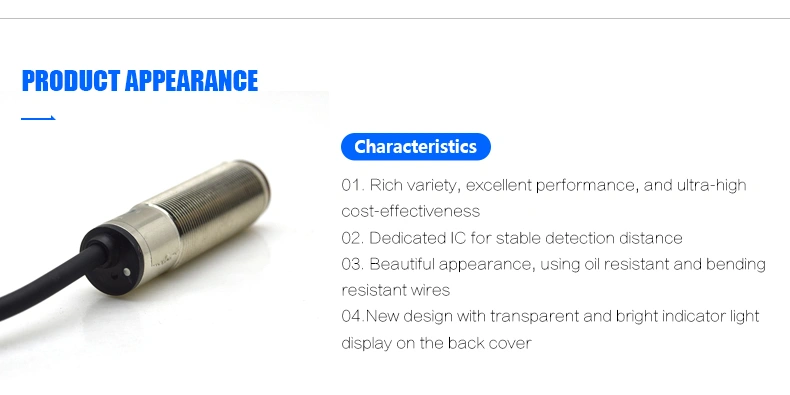

1. Whether there is a standard type of magnetic metal for detection, a high-quality choice for proximity sensors, with good product performance and quality

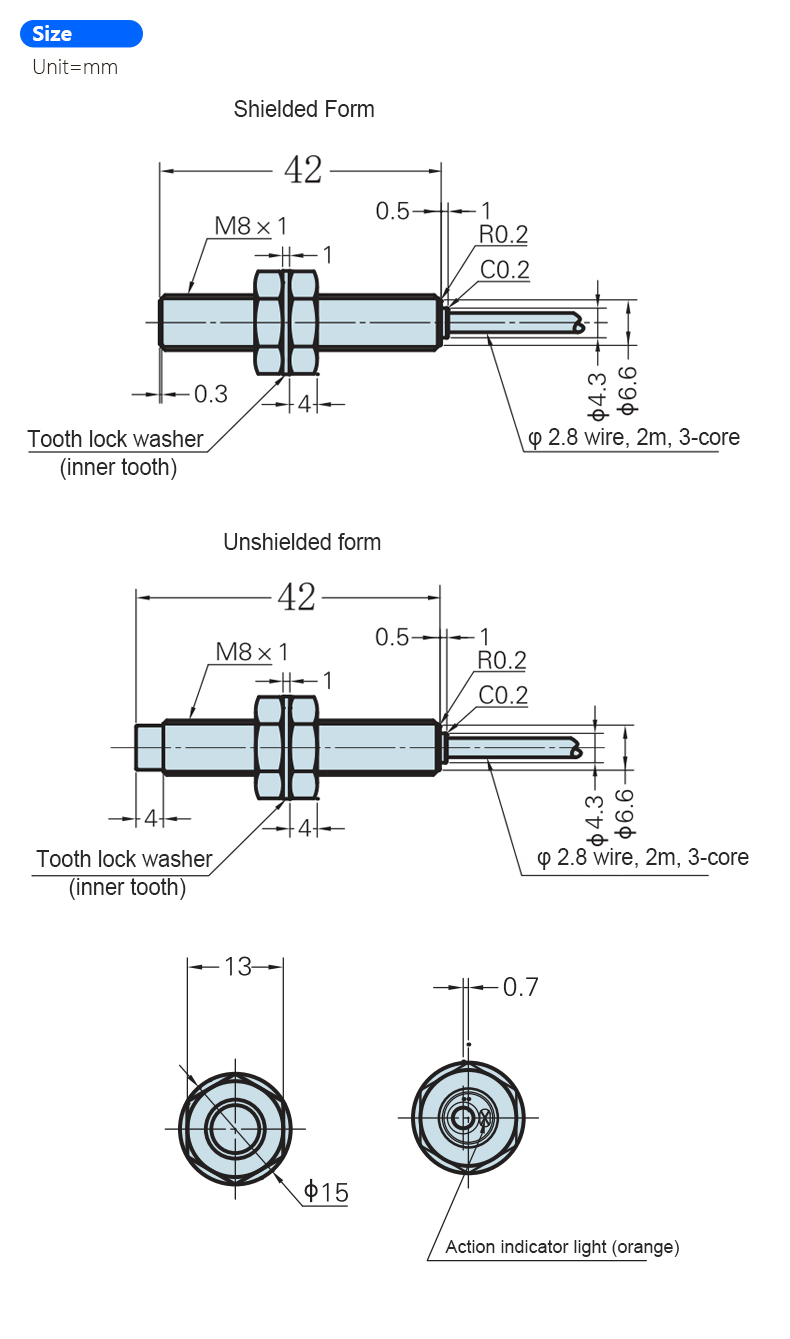

2. The overall dimensions of the product include various size specifications such as M8, M12, M18, M24, M30, etc

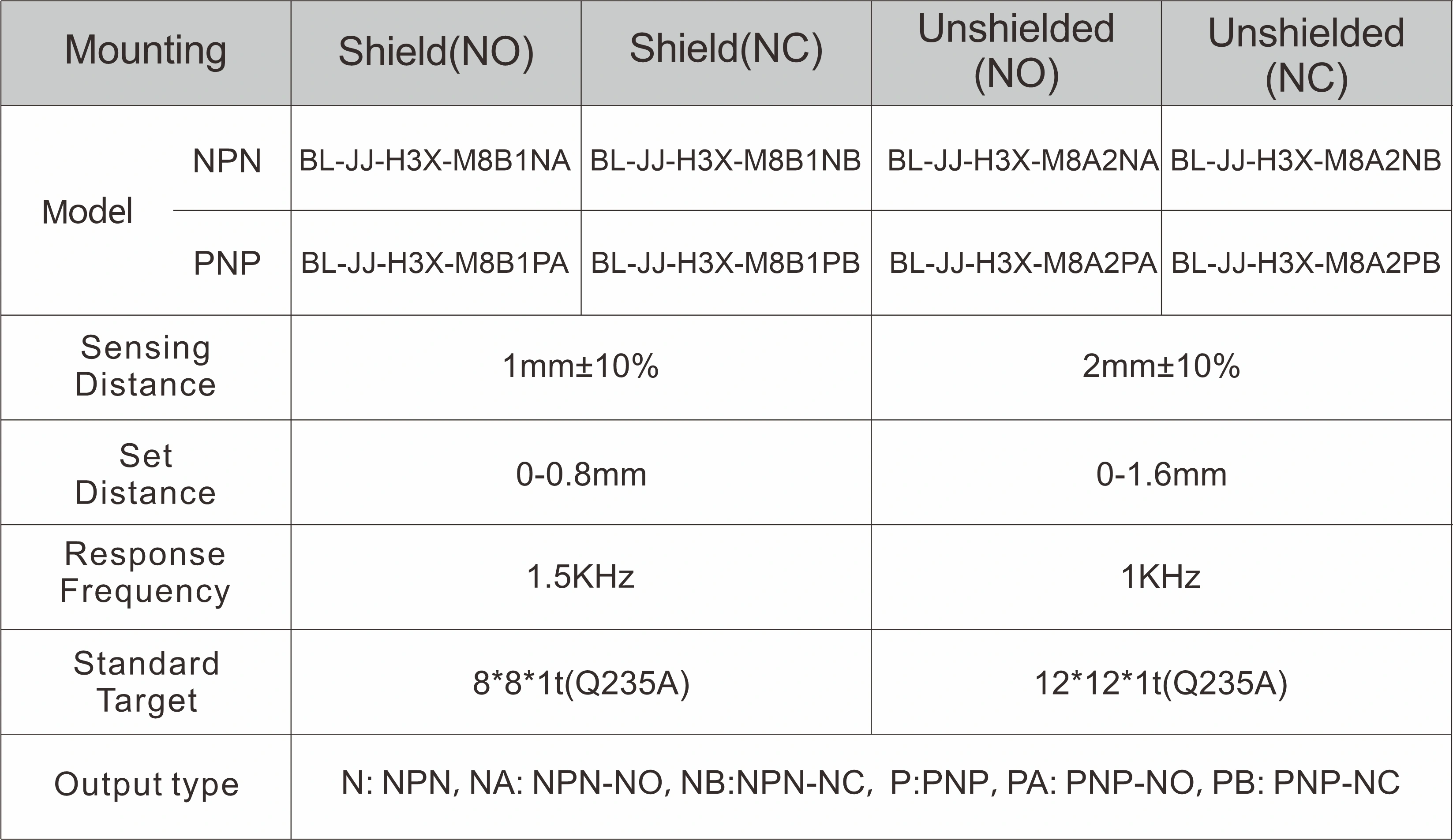

3. Equipped with various functions such as shielded and unshielded, as well as NPN, PNP, AC, and DC2 line types
4. Equipped with bright and eye-catching indicator lights, easy to view installation environment
5. Rich variety, the most suitable model can be selected according to conditions, and has excellent environmental resistance performance

Hysteresis error	1%~15% of sensing distance
Repeat accuracy	Less than 3% of sensing distance
Power supply	DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption	<15mA
Leakage current	<100uA
Residual voltage	Less than 2V(load current at 100mA &cable 2m)
Load current	< 100mA
Circuit protection	reverse connection protection, short circuit protection,electrical surge absorption
Indicator light	Yellow LED
Connection	Standard cable 2m
Ambient temperature	work and store:-25℃~+70℃
Temperature effect	Between -25℃~ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity	work and store:35~95%
Voltage effect	<3%
Anti-vibration	10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage	1000VAC50/60Hz 1min Between the charging unit and the housing
Insulation resistance	>50MΩ(DC500V)Between the charging unit and the housing
