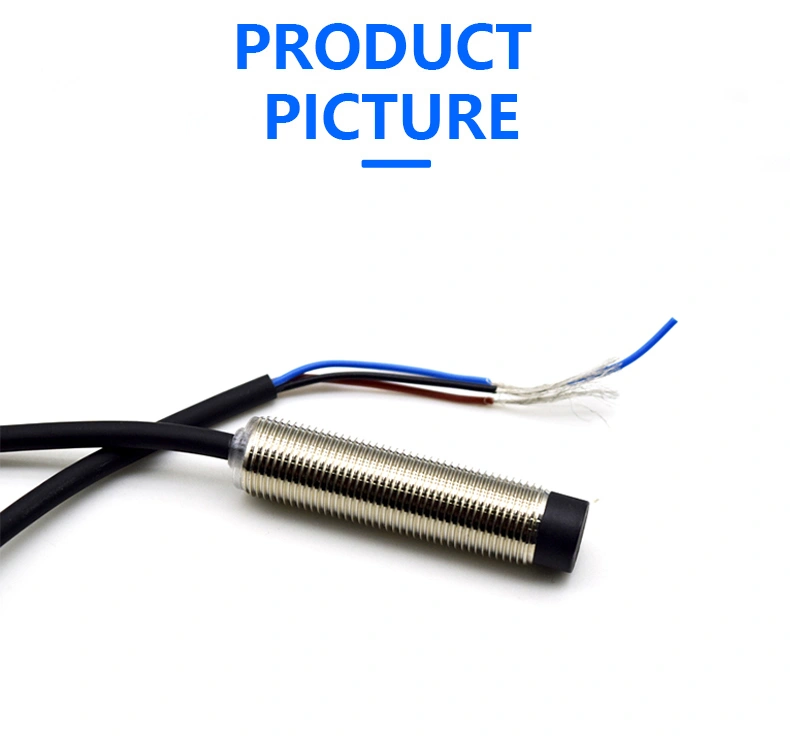

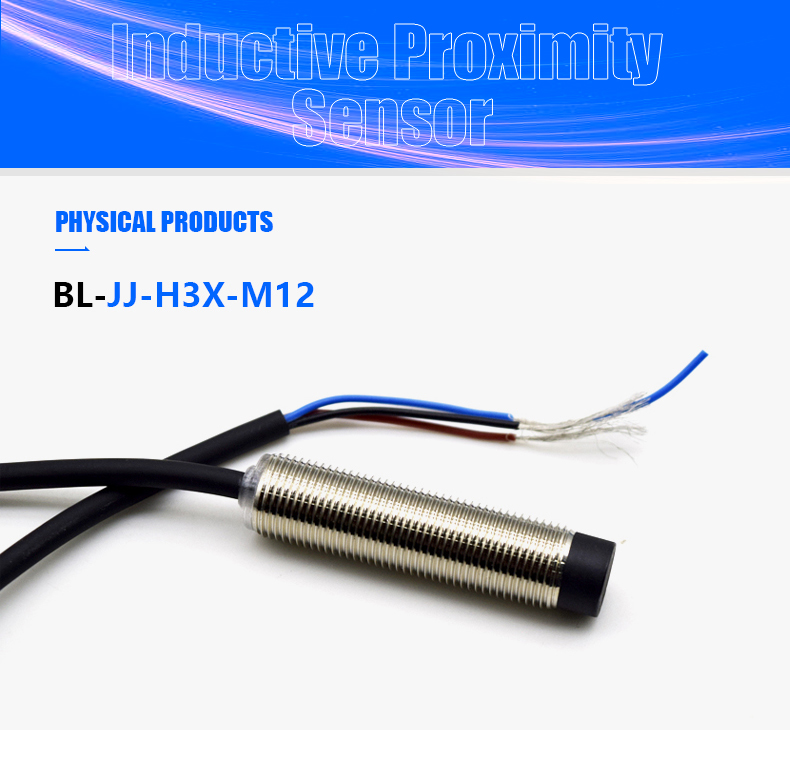

GBeelee BL-JJ-H3X-M12 Cylindrical Proximity Sensor Metal Induction Switch Inductive Proximity Switch Sensor

BL-JJ-H3X-M12

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:No standby power consumption
Mounting Type:Non contact working mode
Description:Cylindrical Proximity Sensor, Inductive Proximity Sensor
Model Number:BL-JJ-H3X-M12
Type:Inductive Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Capacitive approach
Output:NPN/PNP
Hysteresis error:1%~15% of sensing distance
Repeat accuracy:Less than 3% of sensing distance
Power supply:DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption:<15mA
Leakage current:<100uA
Residual voltage:Less than 2V(load current at 100mA &cable 2m)
Load current:< 150mA
Indicator light:Yellow LED
Connection:Standard cable 2m
Ambient temperature:work and store:-25℃~+70℃

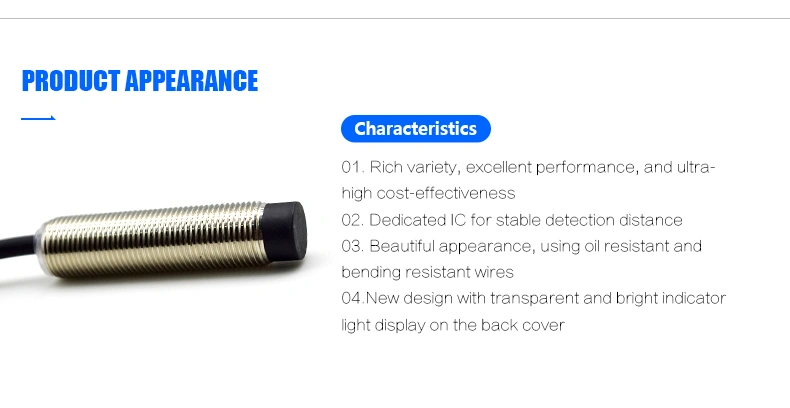

01. Rich variety, excellent performance, and ultra-high cost-effectiveness
02. Dedicated IC for stable detection distance
03. Beautiful appearance, using oil resistant andbending resistant wires
04. New design with transparent and bright indicator light display on the back cover

Hysteresis error	(1%~15% of sensing distance)
Repeat accuracy	Less than 3% of sensing distance
Power supply	DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption	<15mA
Leakage current	<100uA
Residual voltage	Less than 2V(load current at 100mA &cable 2m)
Load current	<150mA
Circuit protection	reverse connection protection, short circuit protection,electrical surge absorption
Indicator light	Yellow LED
Connection	Standard cable 2m
Ambient temperature	work and store:-25℃~+70℃
Temperature effect	Between -25℃ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity	work and store:35~95%
Voltage effect	<3%
Anti-vibration	10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage	1000VAC50/60Hz 1min
Isulation resistance	>50MΩ(DC500V)
Protection degree	IP67
Housing	Nickel-copper alloy

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
