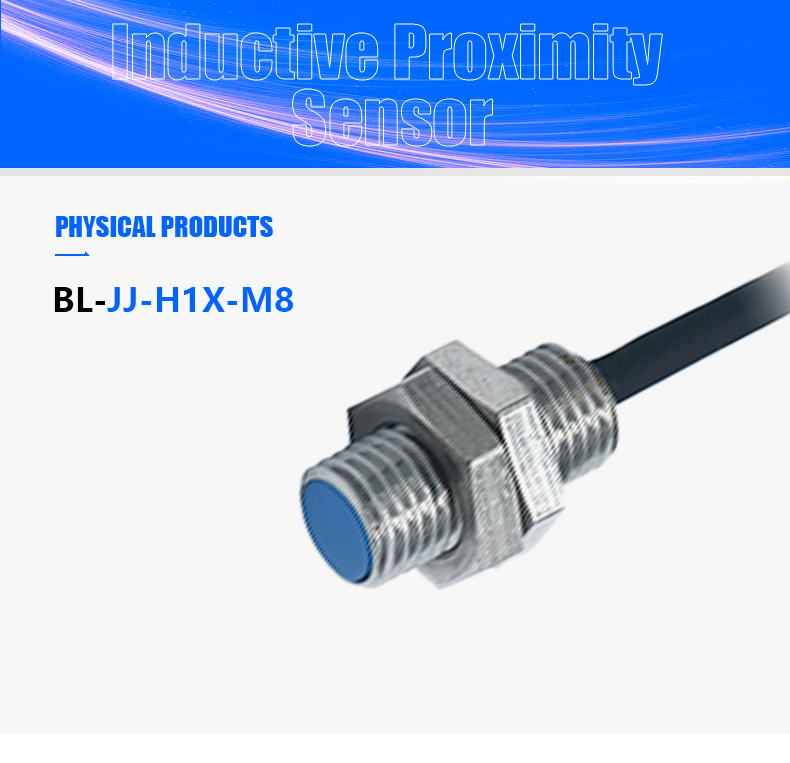

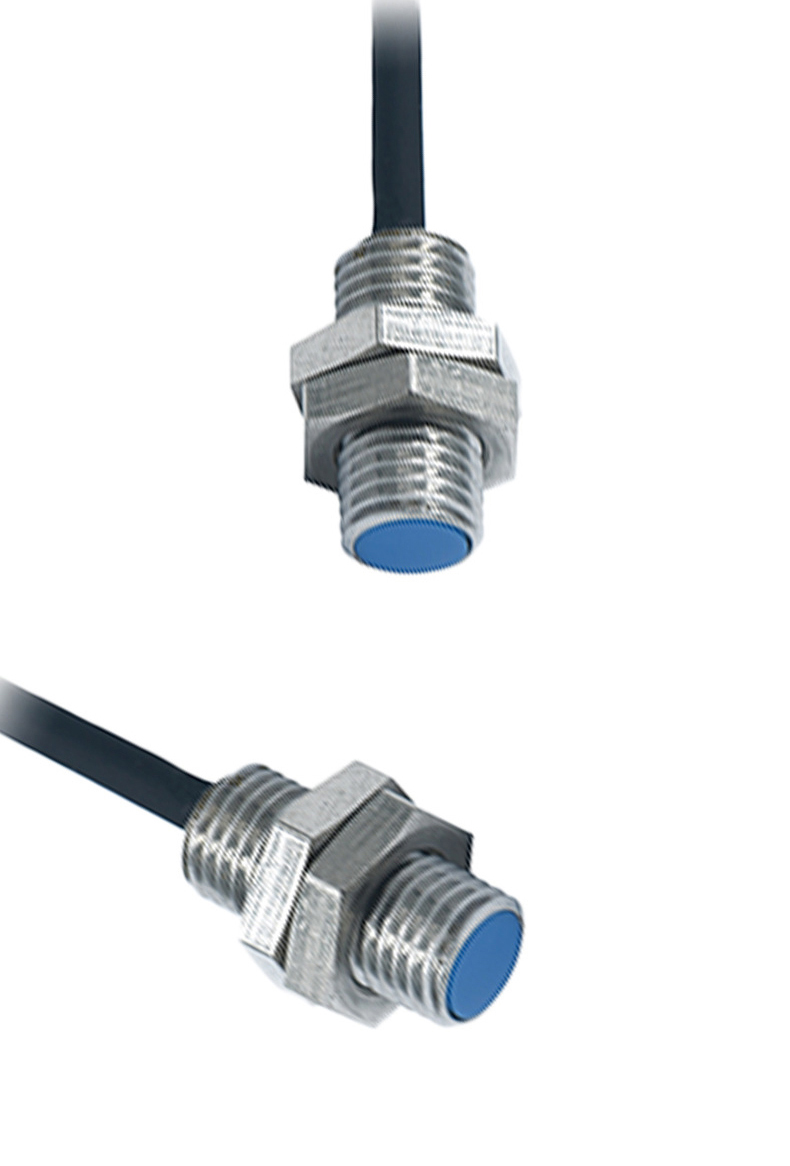

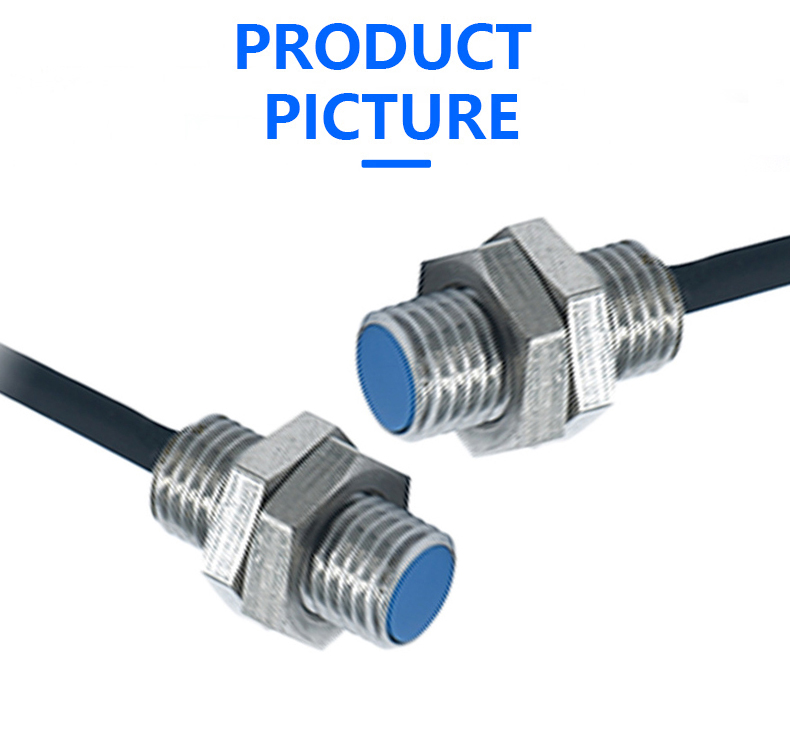

H1X-M8 Proximity Induction Cylindrical Thread Inductive Sensor

Manufacturer's stock small cylindrical proximity switch BL-JJ-H1X-M8 proximity sensing cylindrical thread inductive sensor

BL-JJ-H1X-M8

minimum order

1 piece

Quantity:

Contact Now

add to cart

Series:Proximxty Sensor
Features:No standby power consumption
Mounting Type:Non contact working mode
Description:Metal proximity switch, Inductive Proximity Sensor
Model Number:BL-JJ-H1X-M8
Type:Inductive Proximity Sensor
Place of Origin:Guangdong, China
Brand Name:Beelee
Use:Position Sensor
Theory:Inductance Sensor
Output:Analog SENSOR

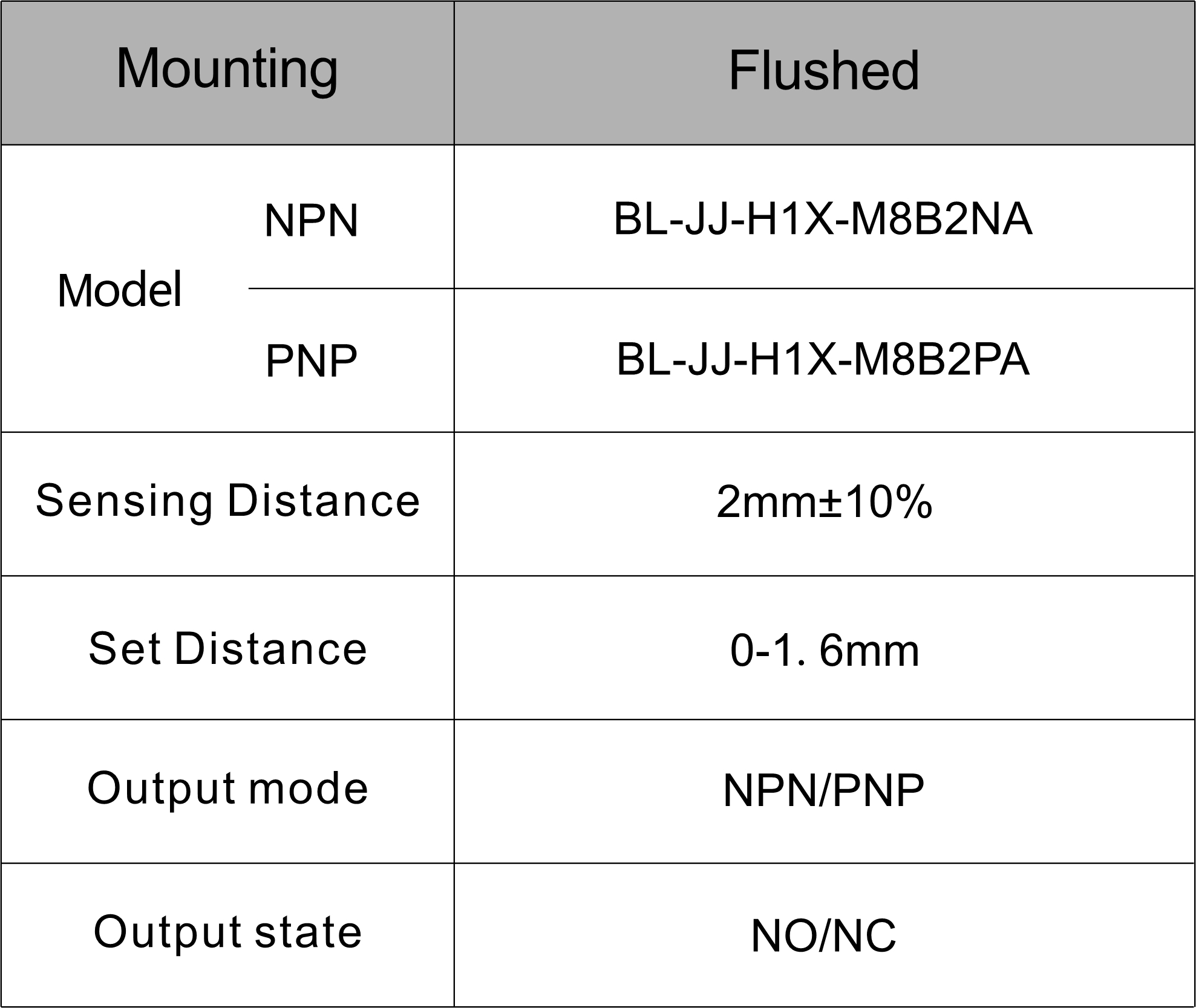

Sensing distance:2mm+10%
Set distance:0-1.6mm
Output mode:NPN/PNP
Output state:NO/NC
Hysteresis error:1%~15% of sensing distance
Repeat accuracy:Less than 3% of sensing distance
Power supply:DC12~24Vimpulse p-p)less than 10%(DC10-30V)
Current consumption:<15mA
Leakage current:< 100uA
Load current:<150mA

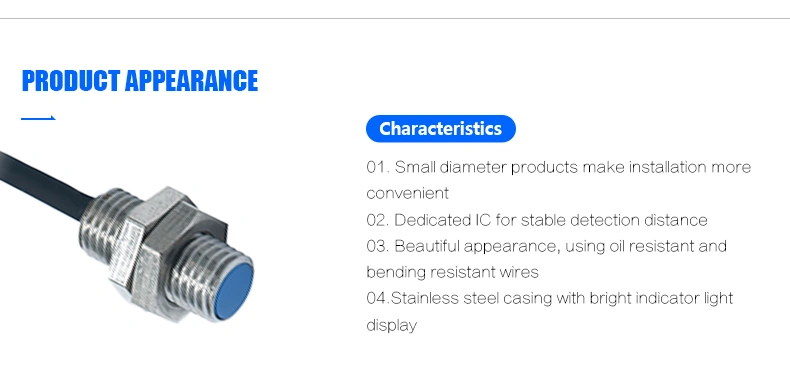

01.Small diameter products make installation more convenient
02.Dedicated IC for stable detection distance
03.Beautiful appearance, using oil resistant and bending resistant wires
04.Stainless steel casing with bright indicator light display

Hysteresis error	1%~15% of sensing distance
Repeat accuracy	Less than 3% of sensing distance
Power supply	DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption	<15mA
Leakage current	<100uA
Residual voltage	Less than 2V(load current at 100mA &cable 2m)
Load current	< 150mA
Circuit protection	reverse connection protection, short circuit protection,electrical surge absorption
Indicator light	Yellow LED
Connection	Connector
Ambient temperature	work and store:-25℃~+70℃
Temperature effect	Between -25℃~ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity	work and store:35~95%
Voltage effect	<3%
Anti-vibration	10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage	1000VAC50/60Hz 1min Between the charging unit and the housing
Insulation resistance	>50MΩ(DC500V) Between the charging unit and the housing

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
