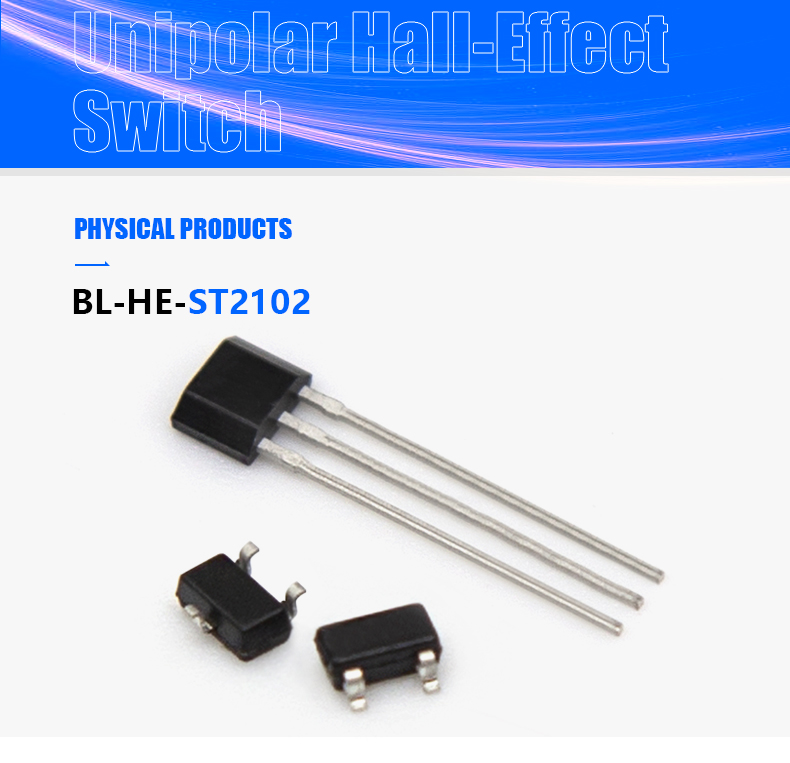

Magnetic Sensor BL-HE-ST2102 Board Mount hall current sensor / Magnetic Sensors Automotive, Unipolar Hall-Effect Switch

• Series:hall sensor
• Mounting Type:hall current sensor
• Description:Unipolar Hall Sensor, Hall sensor
• Model Number:BL-HE-ST2102
• Type:Switch DIP, Integrated Circuits
• Place of Origin:Guangdong, China
• Brand Name:GBeelee
• Use:magnetic sensing
• Theory:A1120LUA
• Output:Original manufacturer
• Operating voltage:2.5 V~24 V
• Operating supply current:1-3.5mA
• Power on Time:35-50uS
• Off-state leakage current:1uA
• FET on-resistance:20Ω
• Output delay time:20-30KHz
• Output rise time:13-25us
• Output Resistance:0.5us
• Output fall time:0.2us

01.The BL-HE-ST2102 device is a chopper-stabilized Hall Effect 02.Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
02.Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over molding, temperature dependencies, and thermal stress. Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier, chopper stabilization, Schmitt trigger, and a open-collector output to sink up to 20mA. The output turns low with the magnetic South Pole on the branded side of the package and turns high if the magnetic field is removed (for UA package).
03.An onboard regulator permits with supply voltages of 2.5V to 24V which makes the device suitable for a wide range of industrial applications

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us

4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.

5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
