hall sensor

Hall Effect Sensor Switch BL-HE-ST801U Magnetic sensor High Sensitivity Unipolar Hall Effect Switch MicroAmpere sensor

BL-HE-ST801U
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Model Number:BL-HE-ST801U
  • Model Number: BL-HE-ST801U(Hall Chip)
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee hall effect sensor manufacturers
  • Type: Hall IC
  • Supply Voltage:30V
  • Output Current:50mA
  • Operating Temperature Range:-40~150℃
  • Storage Temperature Range:-65~150℃
  • Output Low Voltage:400mA
  • Output Leakage Current:10uA

01.BL-HE-ST801U Hall switch integrated circuits for high temperature operating based on Halleffect principle, apply the semiconductor monolithic technology, which includes a voltage regulator, Hall voltage generator, differential amplifier, Schmitt trigger and an open-collector output on a single silicon chip. Hall sensor can convert the input magnetic field signal into digital voltage output.

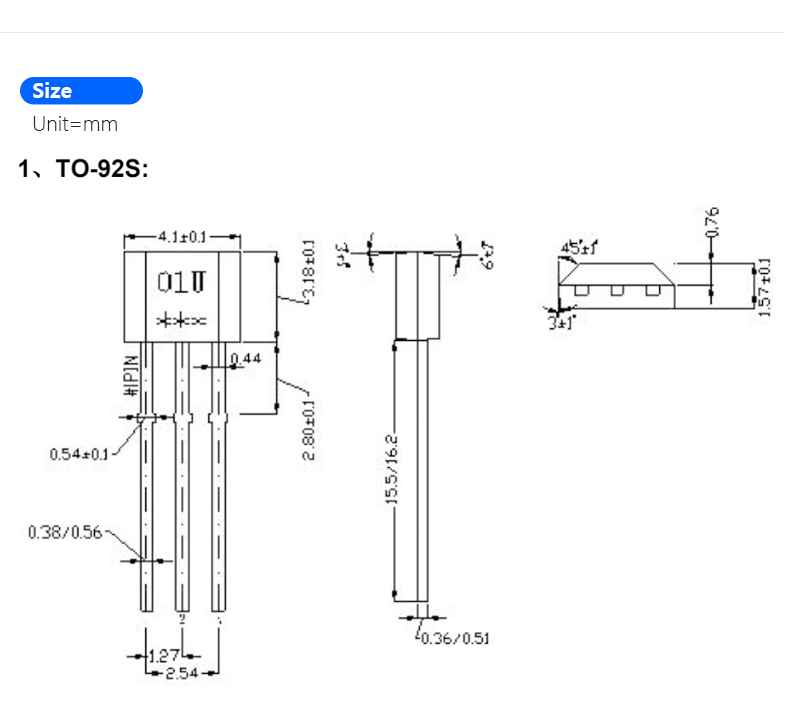

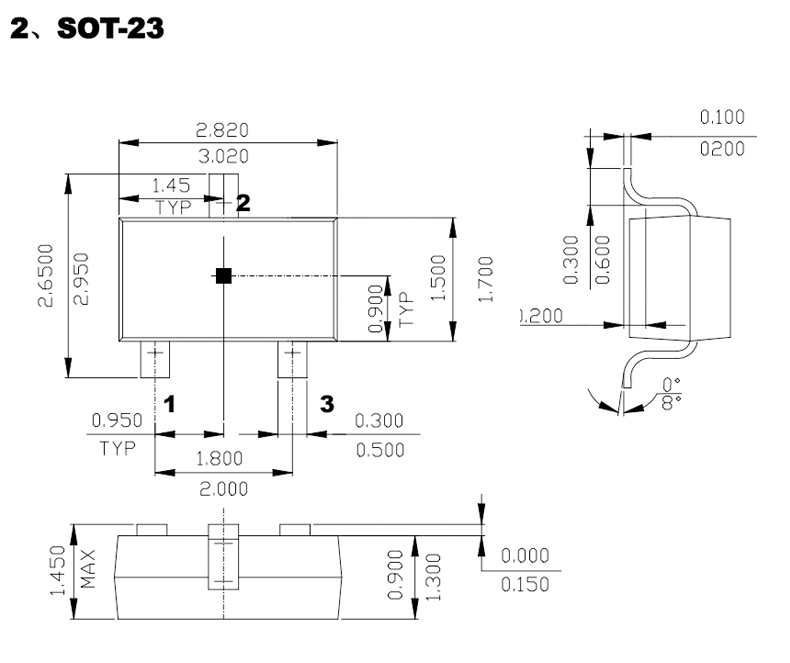

ParameterTest ConditionSymbolMinTypMaxUnits
Supply voltageVcc=4.5V ~ 24VVCC3.8—30.0V
Output Low VoltageVcc=4.5v, Vo=24V
Io=20mA,
B ≥ BOP		VOL—175400mV
Output Leakage
Current		Vo=24V, BIOH—<1.010.0μA
Supply currentVcc=24V Vo
open-collector output		ICC—610.0mA
Output Rise timeVcc=12V
R L =820 Ω
CL =20pF		tr—0.21.5μS
Output Fall timetr—0.181.5μS
FrequencyF—100—KHz


1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.



2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.



3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us



4.Q:How many types of switches do you have,and what about your quality?

A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.



5.Q:What are the advantages of your photoelectric switch?

A:Our photoelectric switch is non-mechanical triggering makes the signal more stable and reliable,and precision built-in angle guide structure,high triggering angle consistency.
