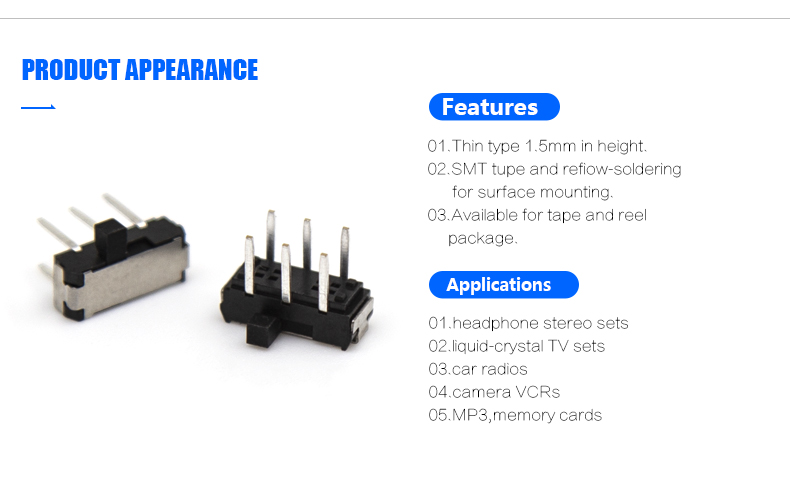

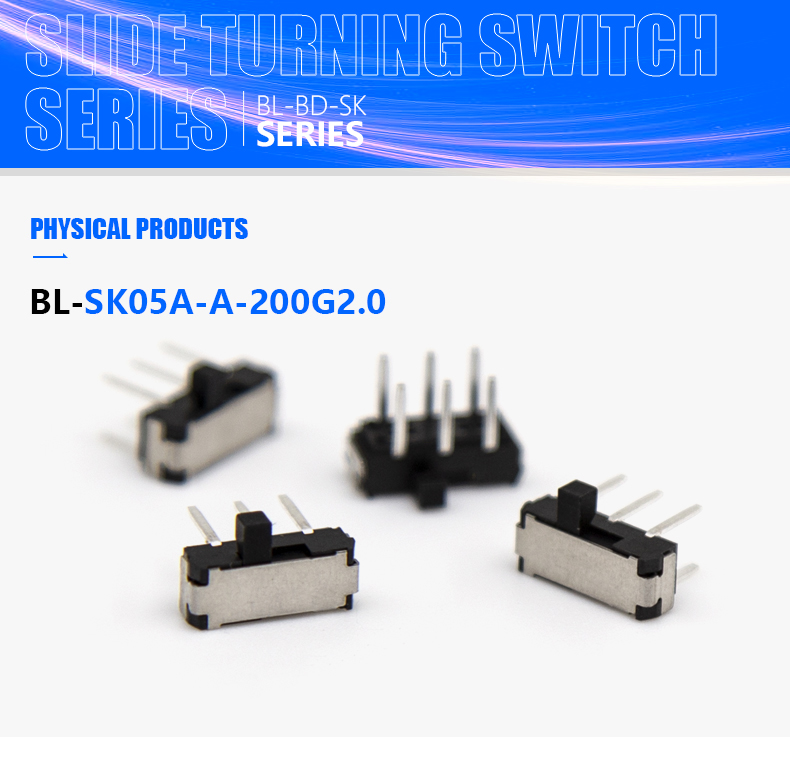

Hot sales mini size low-profile 3 way slide switch
BL-BD-SK05A-A-200G2.0
minimum order
1 piece
Quantity:
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-BD-SK05A-A-200G2.0
- Max. Current:50mA
- Max. Voltage:12V
- Contact resistance:100mΩ MAX.
- Insulation impedance:50mΩ Min.
- OPERATING FORCE:200gf±50gf
- RELATIVE HUMIDITY:45% TO 85%
- Temperature range:2mm±0.2mm
- Service life:7000-10000 Cycles
| Contact resistance | 100mΩ MAX. |
| Insulation impedance | 50mΩ Min. |
| OPERATING FORCE | 200gf±50gf |
| RELATIVE HUMIDITY | 45% TO 85% |
| TRAVEL TO CLOSURE | 2mm±0.2mm |
| Temperature range | -10℃~+50℃ |
| Service life | 7000-10000 Cycles |
