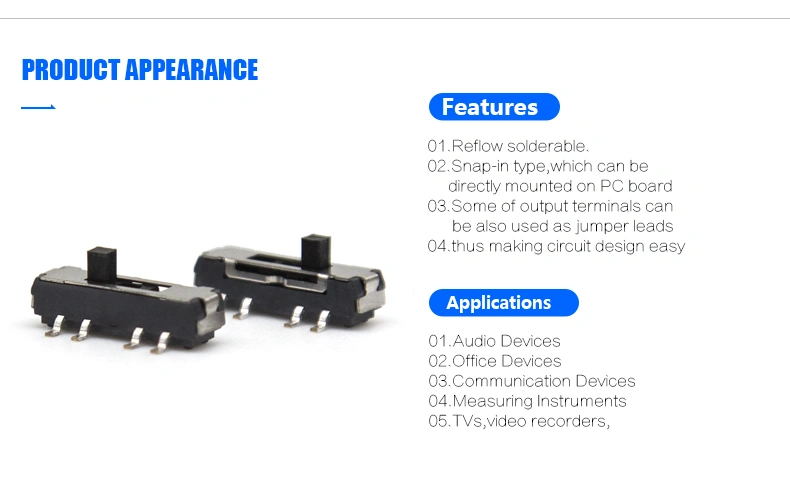

12V toggle switch BL-BD-SS06D-A-230G2 smd horizontal slide switch 8 pin micro switch

• Certification:RoHS
• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Model Number:BL-BD-SS06D-A-230G2
• Max. Current:100mA
• Max. Voltage:12V
• Contact resistance:100mΩ MAX.
• Insulation impedance:50mΩ Min.
• OPERATING FORCE:180gf±50gf
• RELATIVE HUMIDITY:45% TO 85%
• "PRACTICAL TEMPERATURE RANGE":Operating: -10℃~+50℃
• Pull force of terminal:500gf for 1 minute

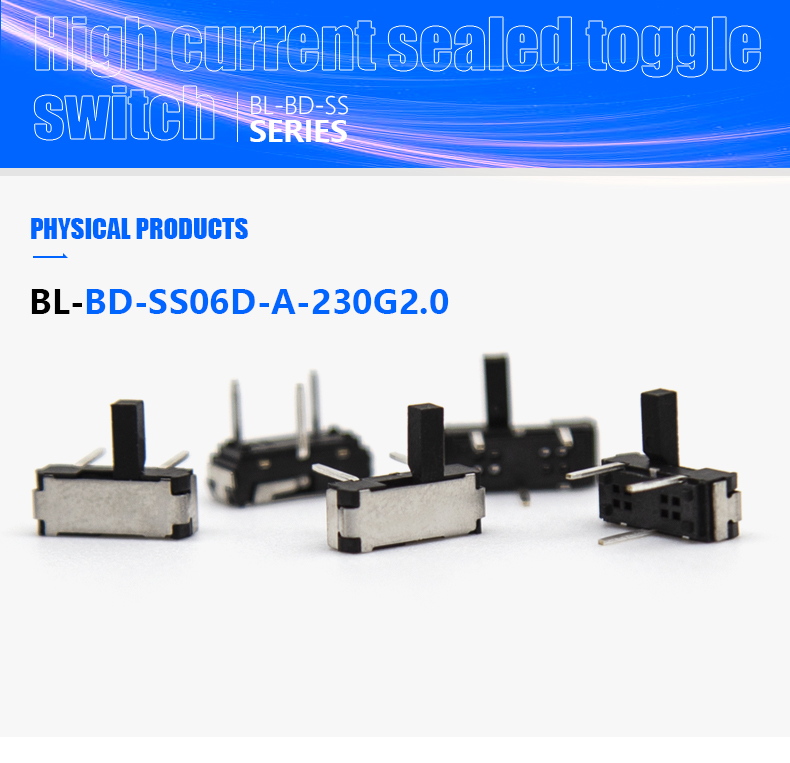

01.The BL-BD-SS06D-A-230G2.0 is a Horizontal toggle switch,The circuit is connected or disconnected by moving its actuators (switch handles).

02.Apply force (500gf) to the tip in either direction for 1 min. No cracks, grooves, etc. are found in the rows.Toggle switch requirements: to meet the mechanical, electrical properties.

03.It has intelligent functions such as delay, broadening, external synchronization, anti-interference, high reliability, stable working area and self-diagnosis.

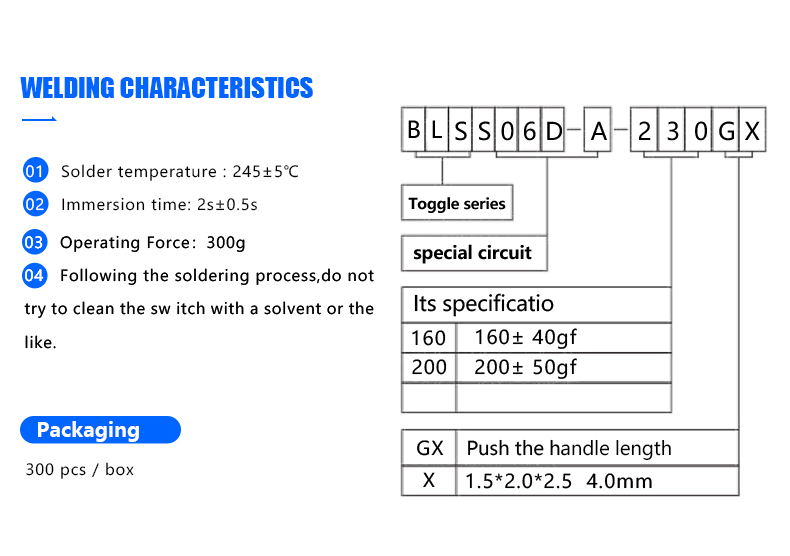

04.Avoid using water-soluble fluxes when soldering tin, which will adversely affect the metals and other materials that make up the toggle switch.

Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10 days.
Q6:How long for samples order?
A7: Usually within 24 hours.
