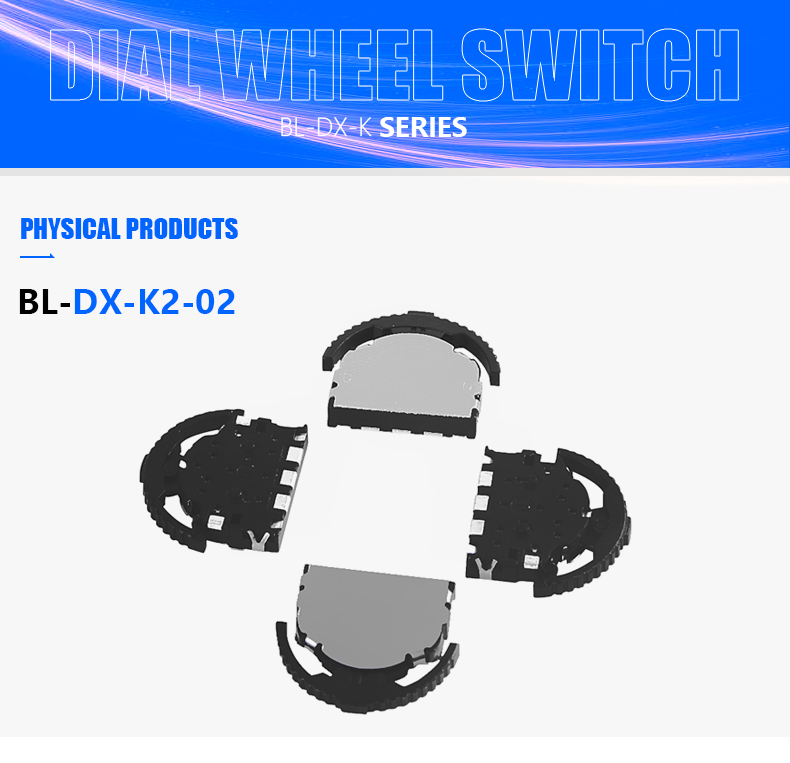

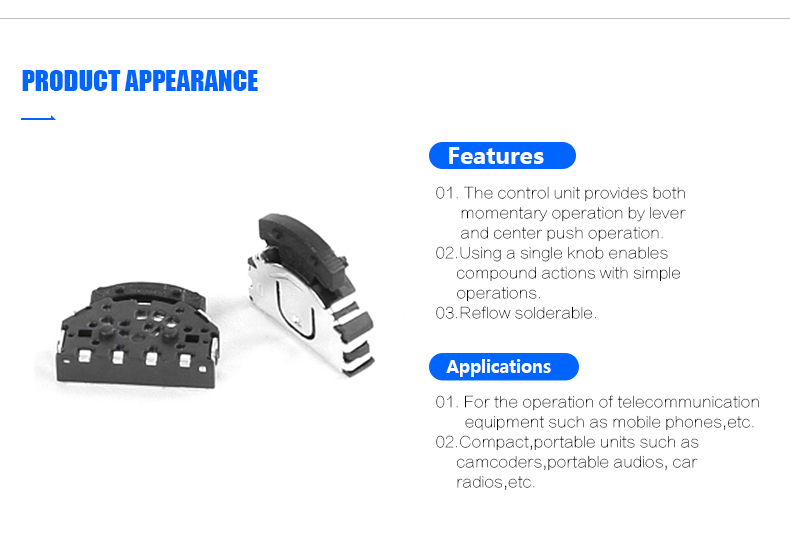

Beelee BL-DX-K2-02 thumbwheel switch 0.1A 12V tact switch

• Certification:RoHS
• Whether the smart:NO
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Model Number:BL-DX-K2-02
• Max. Current:0.1A
• Max. Voltage:12V
• LED:NO
• Rated Current:0.1A MAX
• Rated voltage:DC 12V
• Contact resistance:≤100mΩ
• Insulation Resistance:≥100MΩ
• Compresslve strength:AC110V 50Hz/1 min

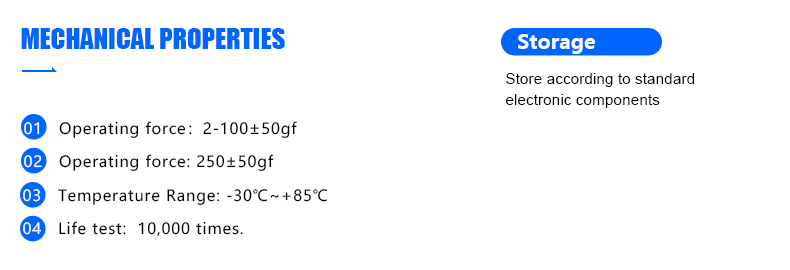

• Mechanical life:10,000 cycles Min
• Operation Stroke:0.85+0.2mm

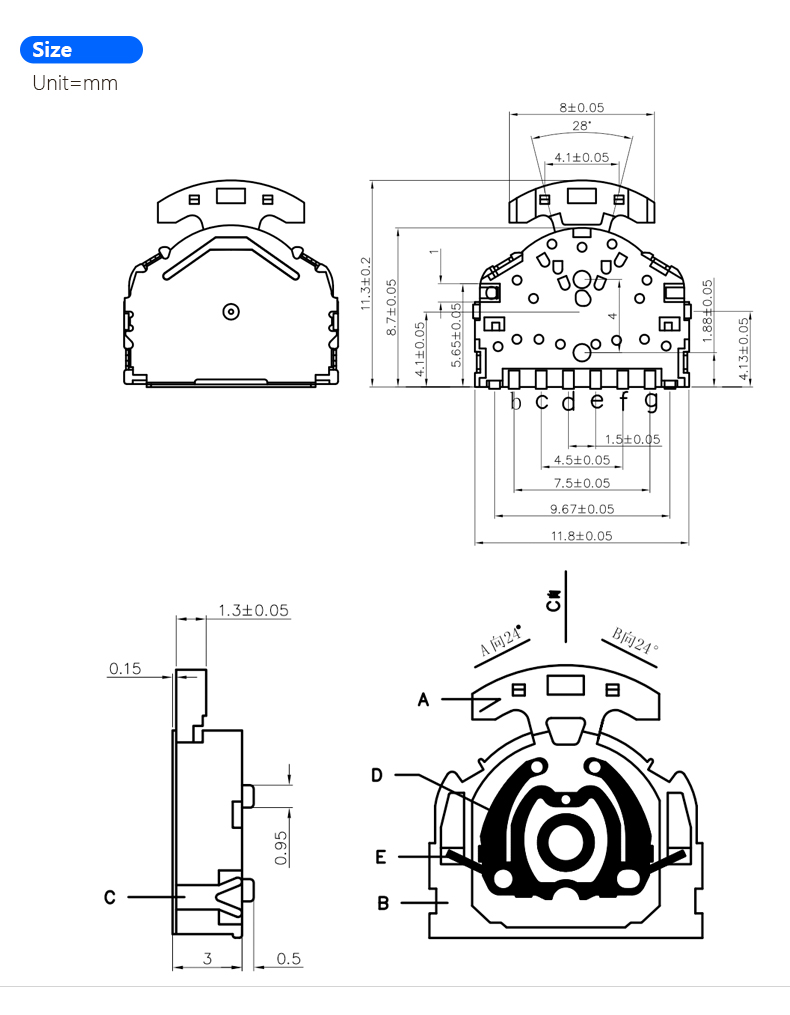

Characterized in that it is provided with a housing with a central fixed contact, a common contact and a plurality of peripheral fixed contacts arranged on the periphery of the central fixed contact on the inner bottom, and a plurality of metal movable contact reeds respectively arranged on the central fixed contact and peripheral fixed contacts oppositely, wherein the movable contact reeds are always connected with the common contact, and the movable contact reeds are connected into a whole through a metal connecting part, and at least one of the movable contact reeds is connected with the opposite central fixed contact or peripheral fixed contact through the operation of an operating lever.
