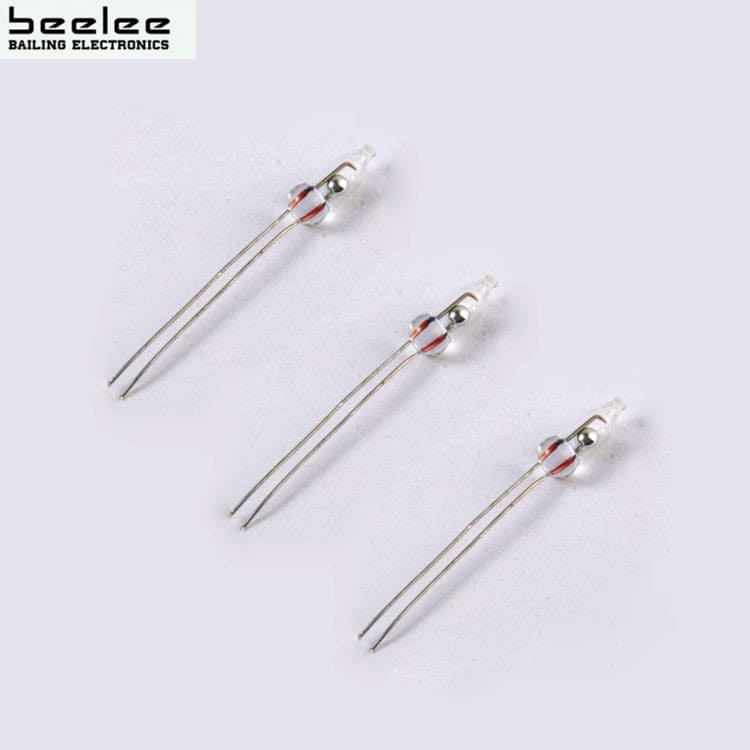

Glass Type Industrial Mercury Switch Small Size - Beelee Tilt Switch SW-1001 SW-1002 SW-1003

01.SW -1002  is mercury single direction type tilt sensitive trigger switch.
02.When the products tilt to the no feet terminal and the tilt angle more than 15 degree ,
it will be a opened circuit “ OFF - state ”.  When the products of horizontal placed tilt change ,
the trigger terminal is below the horizontal ,  and the tilt angle is more than 15 degree ,
it will be a closed circuit “ ON - stated ”.
03.In a horizontal position ,  be easy to trigger with a shaking .  Or not when the guide pin is upward
04.Product completely airtight ,  waterproof ,  dustproof.

• SW-1002 mercury switch tilt detection mercury scroll switch for small door, sterilization lamp tilt One-way switch.
• Name:Mercury switches
• Supplier Type:Original manufacturer
• Place of Origin:CN
• Model Number:SW-1002
• Brand Name:Beelee
• Brand:Mercury switches
• Features:Tilt type
• Current Rating (Amps):0.2A
• Voltage:20V

Mercury Switch glass type mercury tilt switches small size SW-1001 SW1002 SW-1003 - Beelee

Our Mercury switches Advantages:

· 1). Over 15 years OEM and ODM.

· 2). With high quality BeCuand LCP material

· 3). Life span: 500,000 Cycles

· 4). Min. Small order is acceptable.
