GBeelee BL-JJ-H4R-M18 Cylindrical capacitive proximity switch detection metal liquid capacitive sensor

BL-JJ-H4R-M18
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Series:Proximxty Sensor
  • Features:No standby power consumption
  • Mounting Type:Non contact working mode
  • Description:Metal proximity switch, Capacitive Proximity Sensor
  • Model Number:BL-JJ-H4R-M18
  • Type:Capacitive Proximity Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Use:Position Sensor
  • Theory:Capacitive approach
  • Output:NPN/PNP
  • Hysteresis error:1%~15% of sensing distance
  • Repeat accuracy:Less than 3% of sensing distance
  • Power supply:DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
  • Current consumption:<15mA
  • Leakage current:<100uA
  • Residual voltage:Less than 2V(load current at 100mA &cable 2m)
  • Load current:< 150mA
  • Indicator light:Red LED
  • Connection:cable 2m
  • Ambient temperature:work and store:-25℃~+70℃

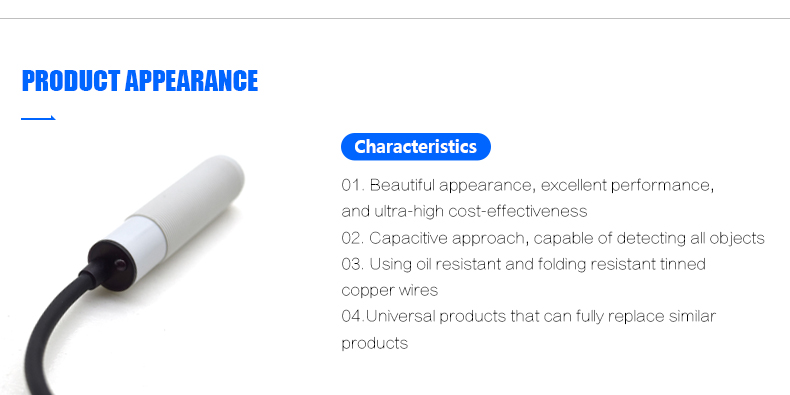

01.Beautiful appearance, excellent performance, and ultra-high cost-effectiveness
02.Capacitive approach, capable of detecting all objects
03.Using oil resistant and folding resistant tinned copper wires
04.Universal products that can fully replace similar products












Hysteresis error
1%~15% of sensing distance
Repeat accuracy
Less than 3% of sensing distance
Power supply
DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption
<15mA
Leakage current
<100uA
Residual voltage
Less than 2V(load current at 100mA &cable 2m)
Load current
< 150mA
Circuit protection
reverse connection protection, short circuit protection,electrical surge absorption
Indicator light
Red LED
Connection
cable 2m
Ambient temperature
work and store:-25℃~+70℃
Temperature effect
Between -25℃~ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity
work and store:35~95%
Voltage effect
<3%
Anti-vibration
10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage
1000VAC50/60Hz 1min Between the charging unit and the housing
Insulation resistance
>50MΩ(DC500V) Between the charging unit and the housing








Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
