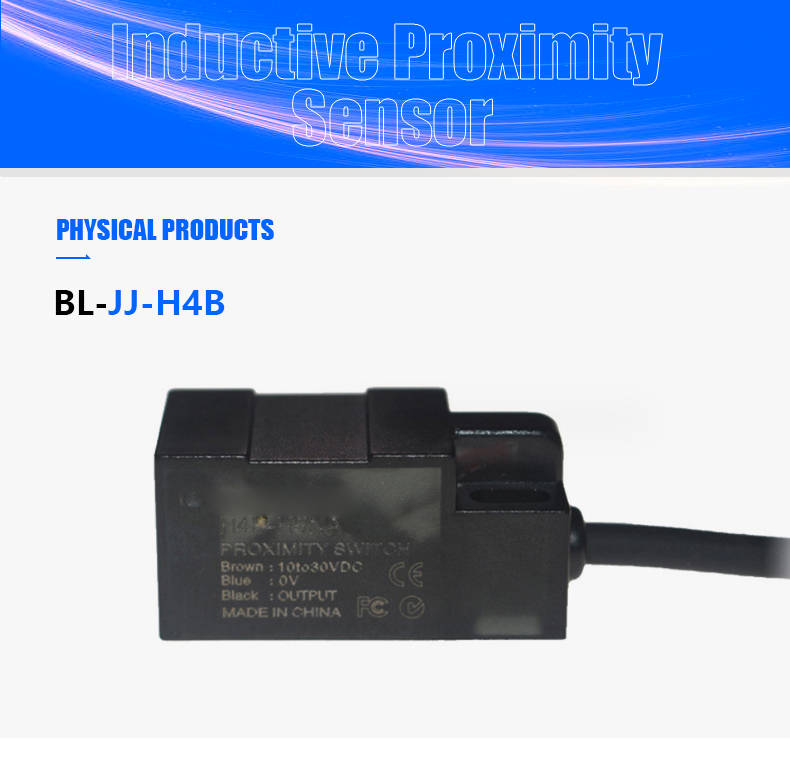

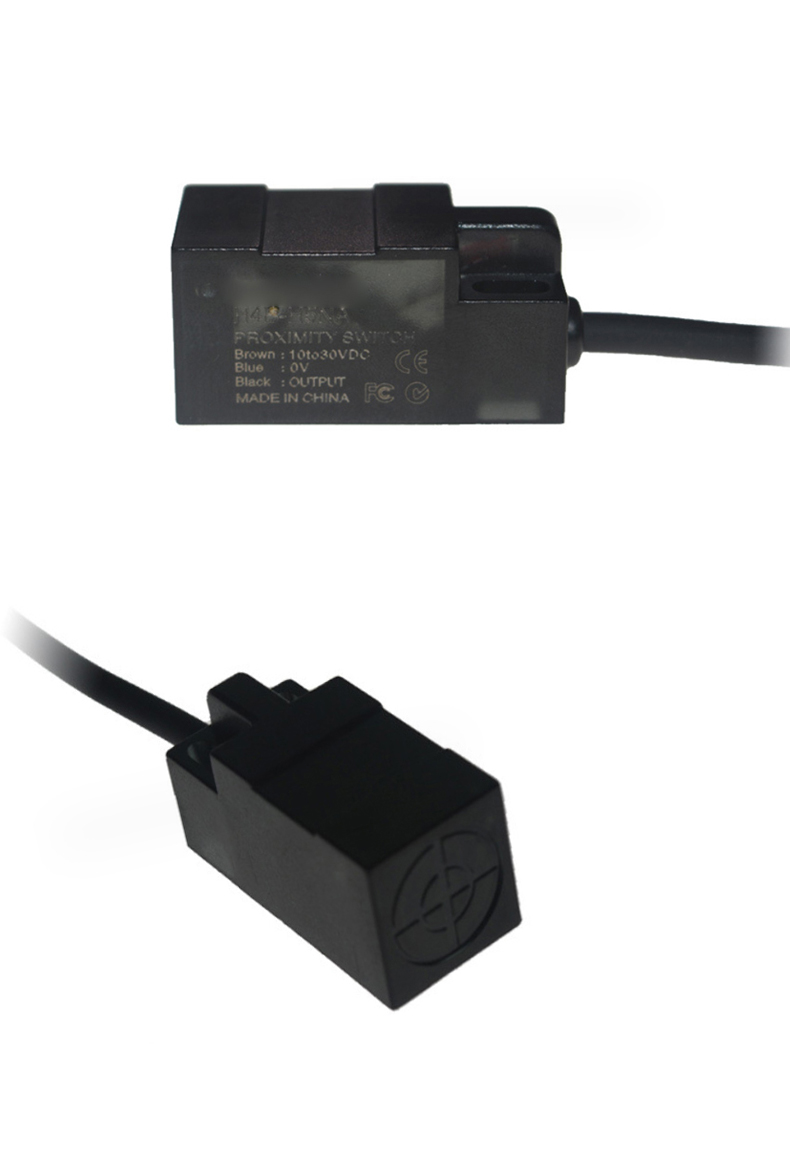

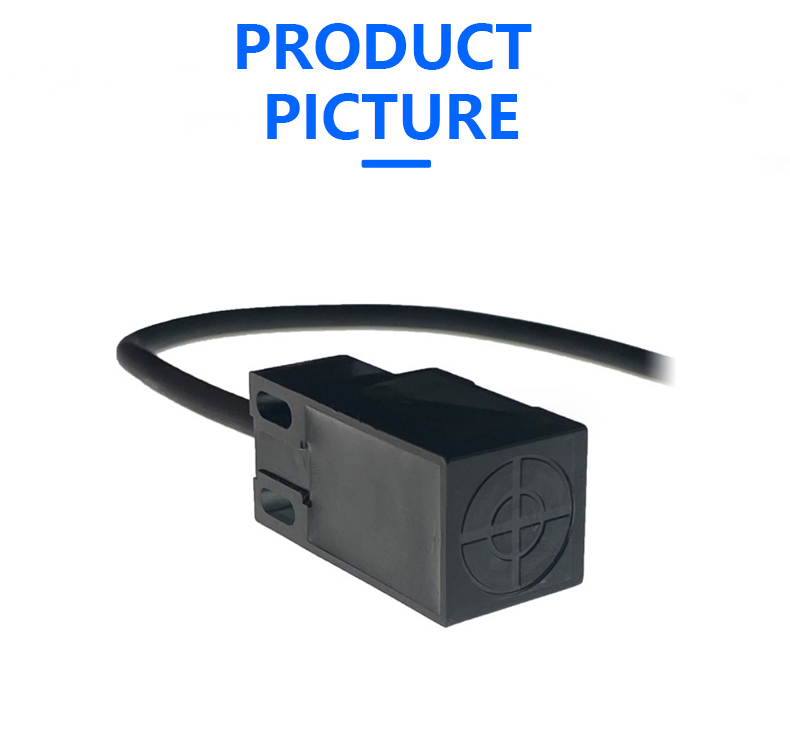

Cylinder Inductive inductor square metal proximity sensor

Manufacturer's stock BL-JJ-H4B 24V proximity switch waterproof DC three wire Cylinder Inductive square metal proximity sensor

BL-JJ-H4B
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Series:Proximxty Sensor
  • Features:No standby power consumption
  • Mounting Type:Non contact working mode
  • Description:Metal proximity switch, Inductive Proximity Sensor
  • Model Number:BL-JJ-H4B
  • Type:Inductive Proximity Sensor
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Use:Position Sensor
  • Theory:Inductance Sensor

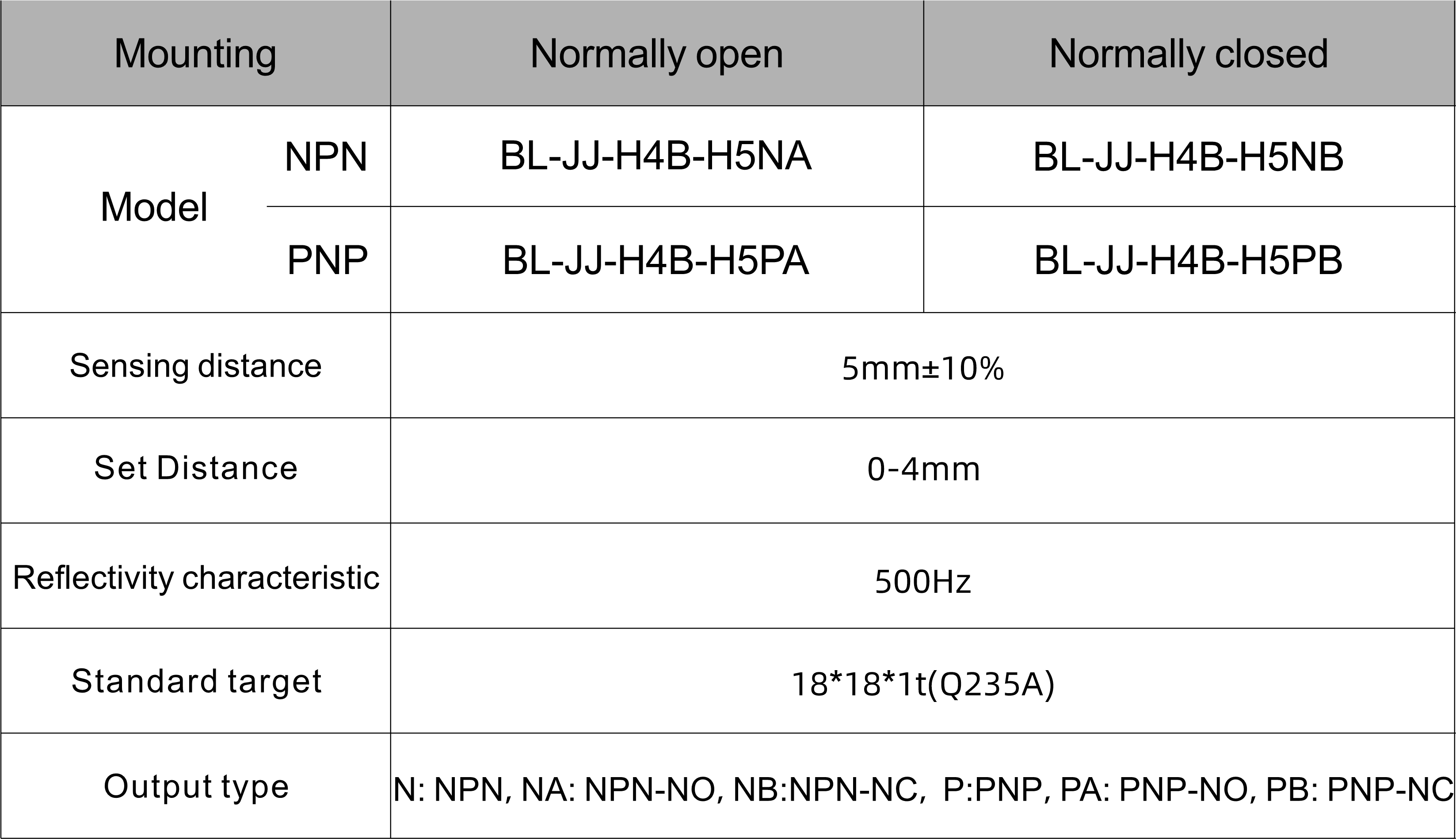

  • Sensing distance:5mm+10%
  • Set distance:0-4mm
  • Hysteresis error:1%~15% of sensing distance
  • Repeat accuracy:Less than 3% of sensing distance
  • Power supply:DC12~24Vimpulse p-p)less than 10%(DC10-30V)
  • Current consumption:<15mA
  • Leakage current:< 100uA
  • Load current:<150mA
  • Reflectivity characteristic:500Hz
  • Standard target:18*18*1t(Q235A)

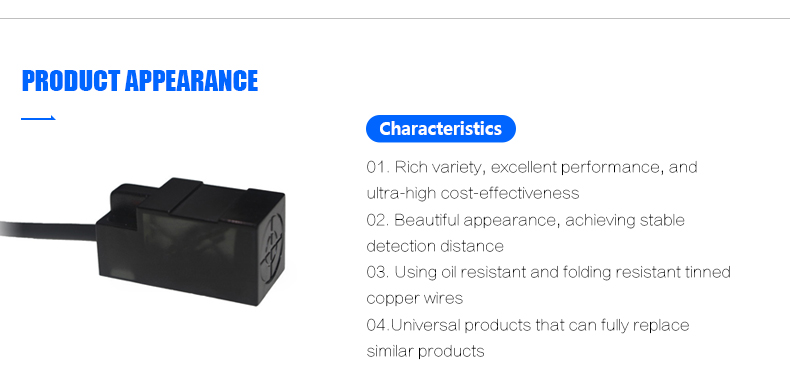

01.Rich variety, excellent performance, and ultra-high cost-effectiveness
02.Beautiful appearance, achieving stable detection distance
03.Using oil resistant and folding resistant tinned copper wires
04.Universal products that can fully replace similar products








Hysteresis error
1%~15% of sensing distance
Repeat accuracy
Less than 3% of sensing distance
Power supply
DC12~24Vimpulse (p-p)less than 10%(DC10-30V)
Current consumption
<15mA
Leakage current
<100uA
Residual voltage
Less than 2V(load current at 100mA &cable 2m)
Load current
< 150mA
Circuit protection
reverse connection protection, short circuit protection,electrical surge absorption
Indicator light
Red LED
Connection
Cable (2m)
Ambient temperature
work and store:-25℃~+70℃
Temperature effect
Between -25℃~ +70℃,less than 15% of sensing distance at +23℃
Ambient humidity
work and store:35~95%
Voltage effect
<3%
Anti-vibration
10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions
Withstanding voltage
1000VAC50/60Hz 1min Between the charging unit and the housing
Insulation resistance
>50MΩ(DC500V) Between the charging unit and the housing
Protection degree
IP67
Housing
PBT+ABS










Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
