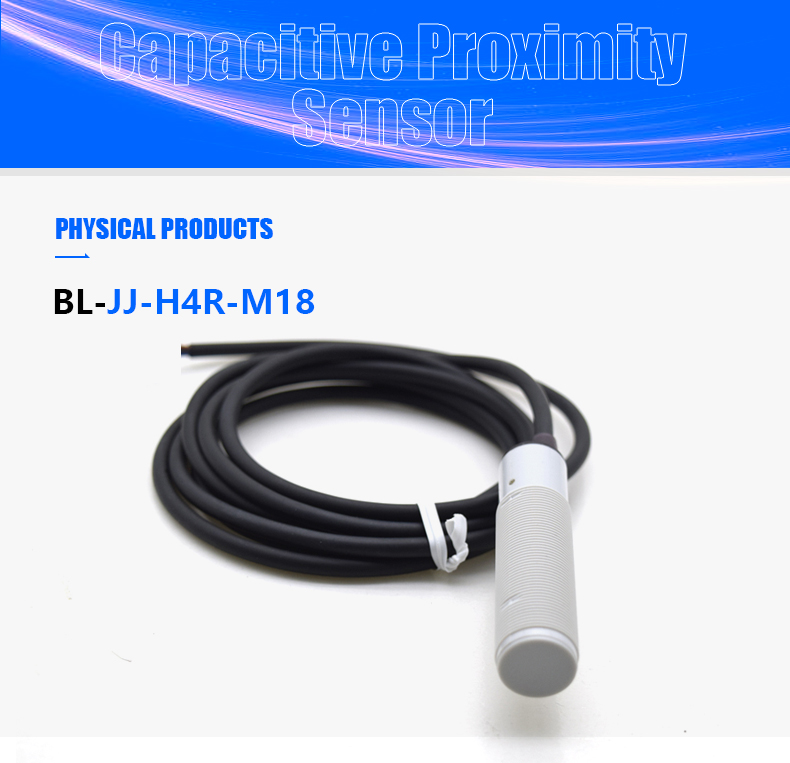

GBeelee BL-JJ-H4R-M18 円筒型静電容量式近接スイッチ検出金属液体静電容量式センサー
BL-JJ-H4R-M18
最小注文
1 ピース
数量:
- シリーズ:近接センサー
- 特長：待機時消費電力ゼロ
- 取り付けタイプ:非接触作業モード
- 説明: 金属近接スイッチ、静電容量式近接センサー
- モデル番号:BL-JJ-H4R-M18
- タイプ:静電容量型近接センサー
- 原産地:中国広東省
- ブランド名:ビーリー
- 使用法:位置センサー
- 理論:容量性アプローチ
- 出力:NPN/PNP
- ヒステリシス誤差：検出距離の1%～15%
- 繰り返し精度：検出距離の3%以内
- 電源:DC12〜24Vインパルス(p-p)10%未満(DC10〜30V)
- 消費電流:<15mA
- 漏れ電流:<100uA
- 残留電圧：2V以下(負荷電流100mA時、ケーブル2m)
- 負荷電流:< 150mA
- 表示灯：赤色LED
- 接続:ケーブル2m
- 周囲温度：作業および保管：-25℃〜+70℃

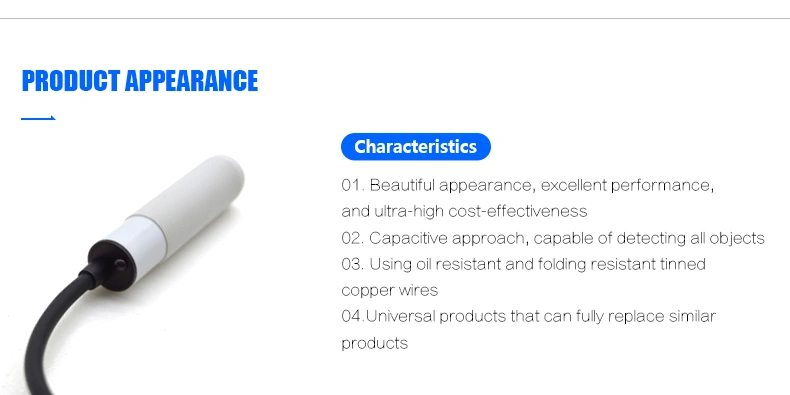

01.美しい外観、優れた性能、超高いコストパフォーマンス
02.静電容量方式であらゆる物体を検出可能
03.耐油性・耐折れ性に優れた錫メッキ銅線を使用
04.類似製品を完全に置き換えることができるユニバーサル製品
02.静電容量方式であらゆる物体を検出可能
03.耐油性・耐折れ性に優れた錫メッキ銅線を使用
04.類似製品を完全に置き換えることができるユニバーサル製品
Hysteresis error | 1%~15% of sensing distance |
Repeat accuracy | Less than 3% of sensing distance |
Power supply | DC12~24Vimpulse (p-p)less than 10%(DC10-30V) |
Current consumption | <15mA |
Leakage current | <100uA |
Residual voltage | Less than 2V(load current at 100mA &cable 2m) |
Load current | < 150mA |
Circuit protection | reverse connection protection, short circuit protection,electrical surge absorption |
Indicator light | Red LED |
Connection | cable 2m |
Ambient temperature | work and store:-25℃~+70℃ |
Temperature effect | Between -25℃~ +70℃,less than 15% of sensing distance at +23℃ |
Ambient humidity | work and store:35~95% |
Voltage effect | <3% |
Anti-vibration | 10 to 55 Hz with 1.5 mm double amplitude for 2 hrs each in X,Y, andZ directions |
Withstanding voltage | 1000VAC50/60Hz 1min Between the charging unit and the housing |
Insulation resistance | >50MΩ(DC500V) Between the charging unit and the housing |
