high sensitive vibration switch sensor/Free samples /vibration switch

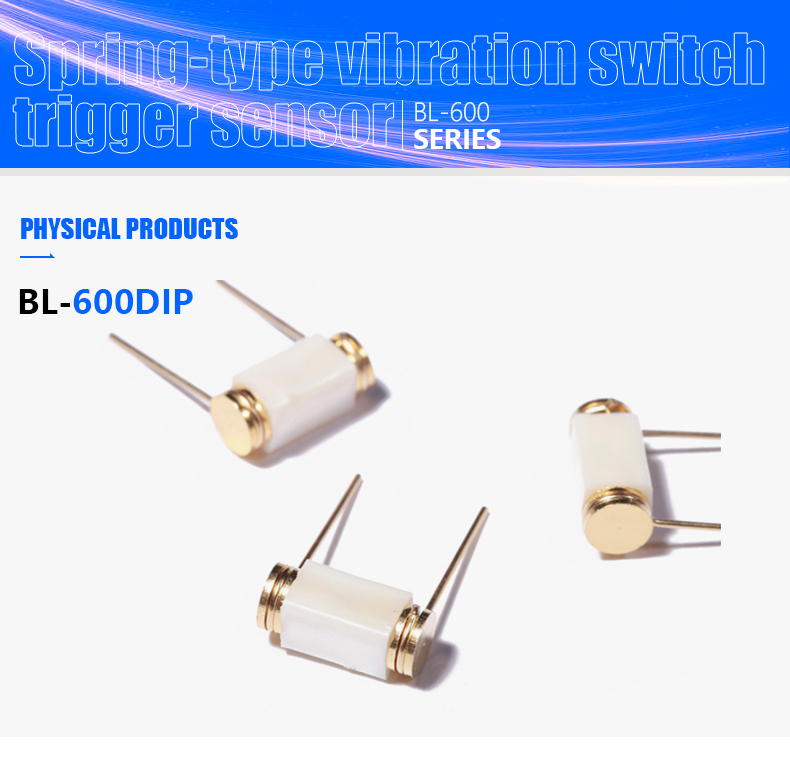

Free samples GBeelee BL-600DIP slight motion trigger Tilt Switch high sensitive vibration switch sensor for car alarm

BL-600DIP
minimum order
1 piece
Quantity:
Contact Now
add to cart
  • Place of Origin:Guangdong, China
  • Brand Name:Beelee
  • Model Number:BL-600DIP
  • Type:vibration sensor

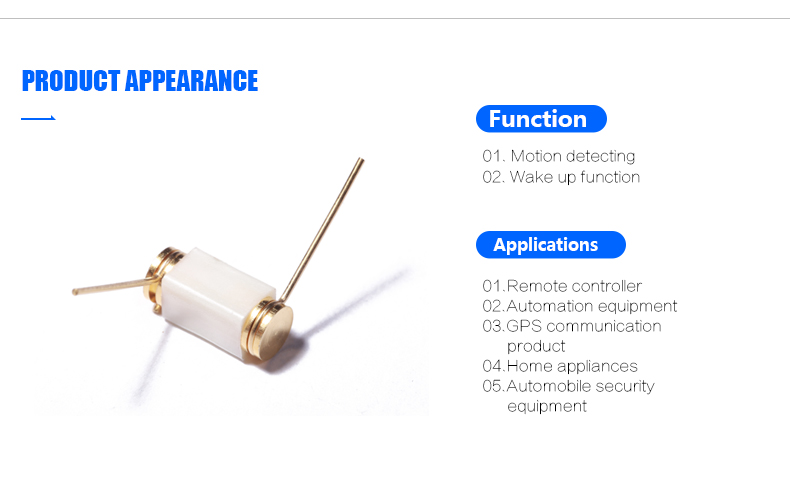

  • Application:household appliances,toys,alarm system
  • Supplier Type:Original manufacturer, ODM
  • Cross Reference:Not Applicable
  • Media Available:datasheet, Photo
  • Brand:vibration sensor
  • Features:Motion detecting
  • Mounting Feature:Front of Panel
  • Size / Dimension:contact us
  • Color:gold-plated
  • Material:contact us
  • Operating Temperature:-40 to 80°C
  • Mounting Type:contact us
  • Switch Function:Vibration detection
  • Current Rating (Amps):2uA-10mA
  • Voltage Rating - AC:<6V
  • Voltage Rating - DC:<6V
  • Voltage:<6V,<6V
  • Packaging:contact us
  • Voltage Rating:contact us
  • Output Type:contact us
  • Illumination Voltage (Nominal):contact us
  • Voltage - Switching AC:Not Applicable
  • Voltage - Switching DC:Not Applicable
  • Power - Rated:Not Applicable
  • Capacitance:Not Applicable
  • Voltage - Supply:Not Applicable
  • Display Mode:Not Applicable
  • LED Color:Not Applicable
  • Rated Voltage:Not Applicable
  • Current - Switching:Not Applicable
  • D/C:012
  • Current:2uA-10mA
  • Insulation resistance:>10MΩ
  • Trigger rate:100%
  • Trigger freque ncy:>50Hz






























File NoOFF-STATETilt directionTilt angleON-STATE
BL-600Any azimuth/OFFbe shakenAny angleON
BL-600DIPAny azimuth/OFFbe shakenAny angleON

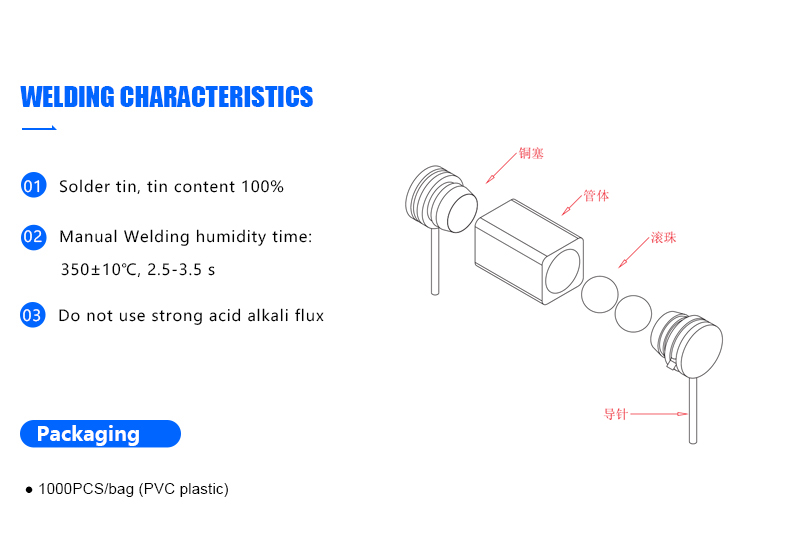

01.BL-600DIP is roll ball type omni signal trigger sensing switch.

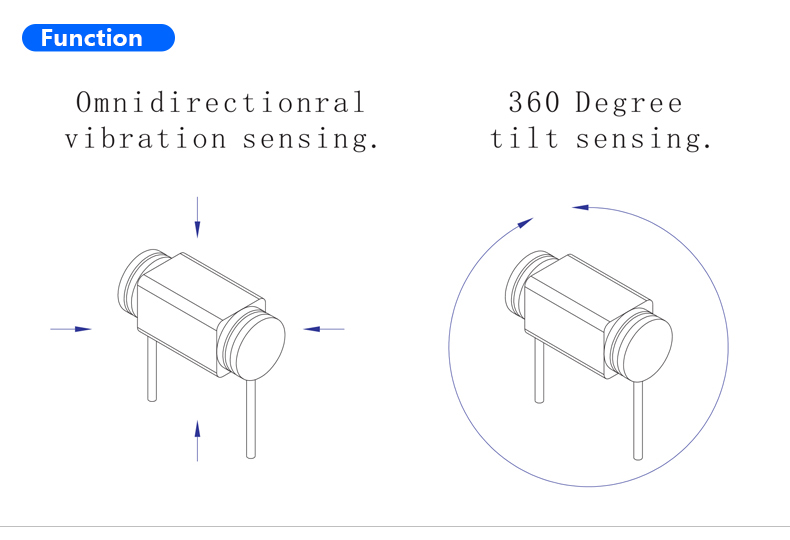

02.This product is a mechanical vibration sensor, the product at any azimuth angle trigger is in the ON or OFF state,When the product be shaken, the internal parts jitter, resulting in ON / OFF alternating pulse signal, thus trigger the circuit.


03.Product completely airtight, waterproof, dustproof.
04.Fine plating, long service life.





















































1Voltage<6V
2Current<20mA
3Conductive timeabout 2ms
4Closed resistance<30 ohm
5Insulation resistance>10 ohm
6Temperature rangeOperating: -40℃ to 80℃
7Pull force of terminal500gf for 1 minute
8Salt mist test95% RH, 40℃ for 24 hours
9Service life50,000 hours









Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A4:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A5: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A7: I0000pcs within 5-10 days.
Q6:How long for samples order?
A7: Usually within 24 hours.
