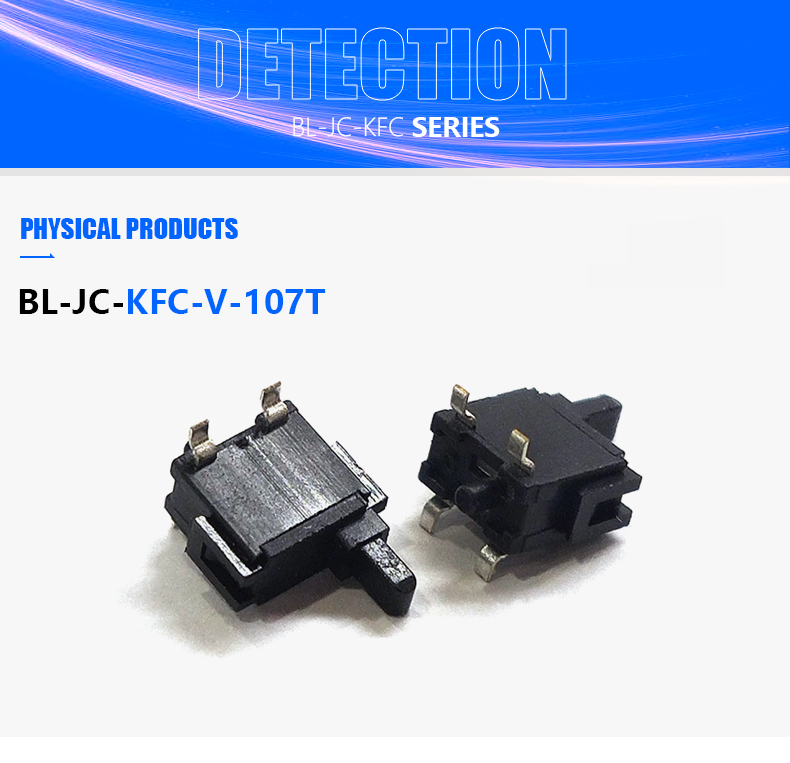

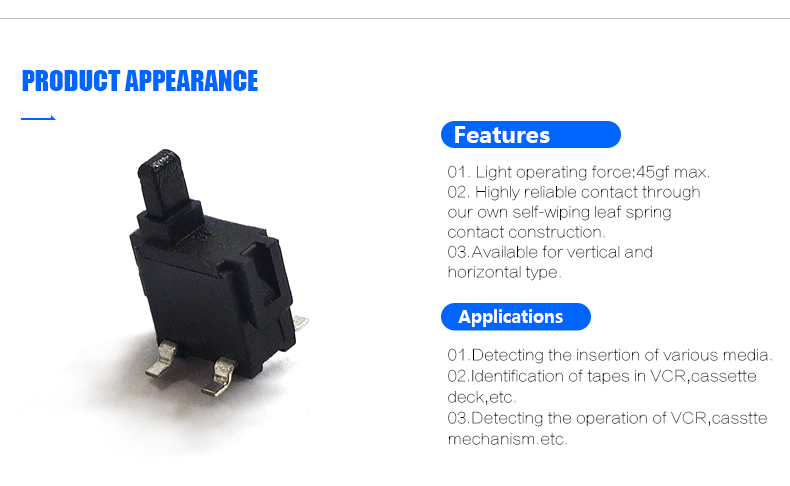

Detector Switch DC16V 1A used into cassette and VCR
- Certification:CE
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-JC-KFC-V-107T8.5
- Ratings:DC16V 1A
- Switching withstand voltage:AC500V/min
- contact resistance:≤200 MΩ
- Insulation resistance:≥50 MΩ
- 35g±10g:35g±10g
- Service life:≥30000 Cycles

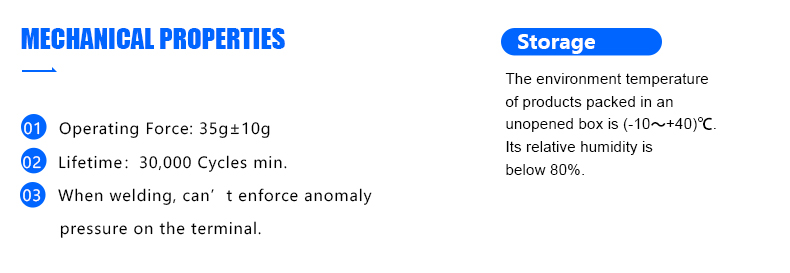

01.This specification is applied to the requirements for sense switch

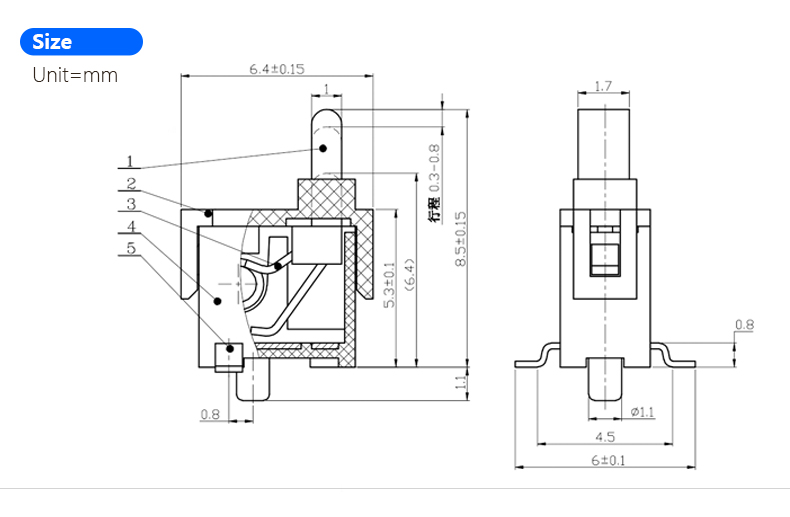

02.Style and dimension: shall conform to the assemble drawings
03.Following the soldering process,do not try to clean the switch with a solvent or the like.
04.Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton.
| Ratings | DC16V 1A |
| Switching withstand voltage | AC500V for 1 minute, no breakdown and flashover. |
| contact resistance | ≤300 MΩ |
| Insulation resistance | ≥50 MΩ |
| OPERATING FORCE | 30g±15g |
| Service life | ≥20000 Cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
