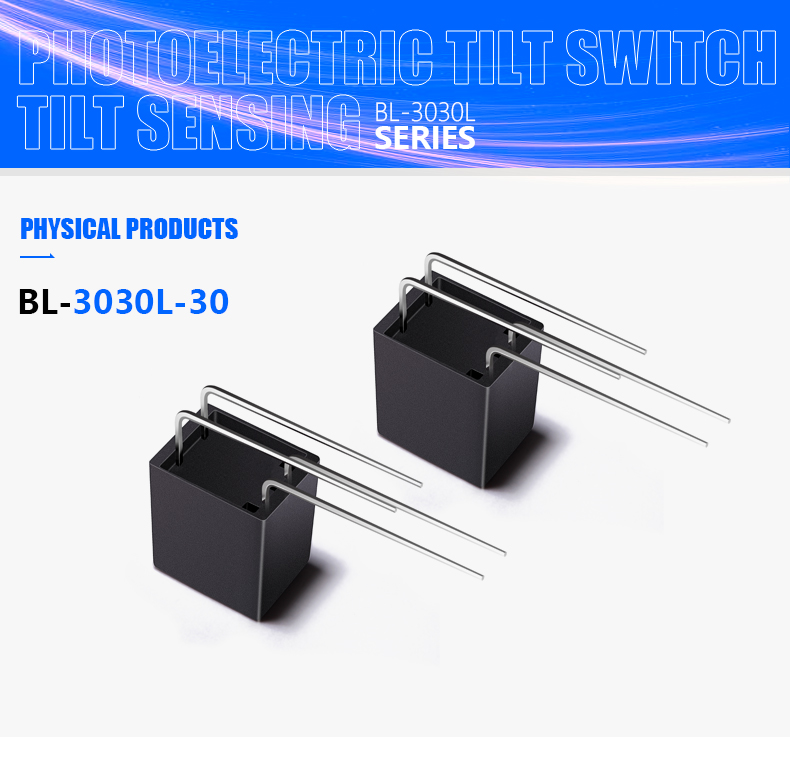

BL3030L-30 Horizontal Installation Safety Auto on off Photoelectric Sensor Element

• BL-3030 is ball type photoelecric tilting sensing trigger switches.Adopting the photoelecrtic sensing,is not affected by metal oxide.
  In the normal ,switch lifespan can reach 100,000 hours.Switch meterial adopt the high temperature resistant engineer palstic and compliant with RoHS.
• Model:BL3030L-30
• Rated thermal current:Less than 20 ma
• Insulation resistance:More than 10M
• Operating humidity:40 degrees
• Operating temperature:- 25 degrees to 75 degreeslastic
• Product certification:ROHS
• Voltage:5V
• Maximum voltage:4.7V
• Shipment:DHL UPS TNT FEDEX EMS
• Color:Black
• Usage:Position Sensor
• Theory:Optical sensor
• Output:Switching Transducer
• Place of Origin:CN
• Brand Name:BeeLee
• Model Number:BL3030L-30

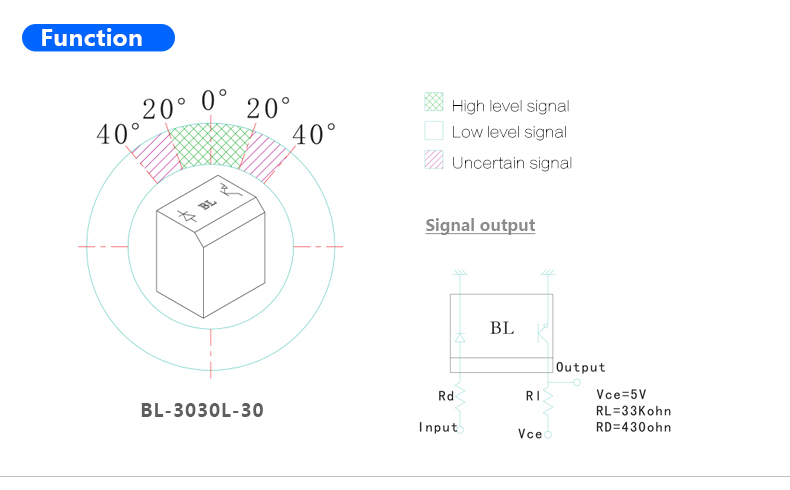

When the product upright,the output is high level .
When the products tilt to any direction and more than 30degrees, output is the low level .

01.This product can omni 360 degree tilt detecting .
02.When the products is upright , the output is high level .
03.When the products tilt to any direction and more than 30 degree , output is the low level .
04.This switch output can trigger MCU , I / O control circuit.
