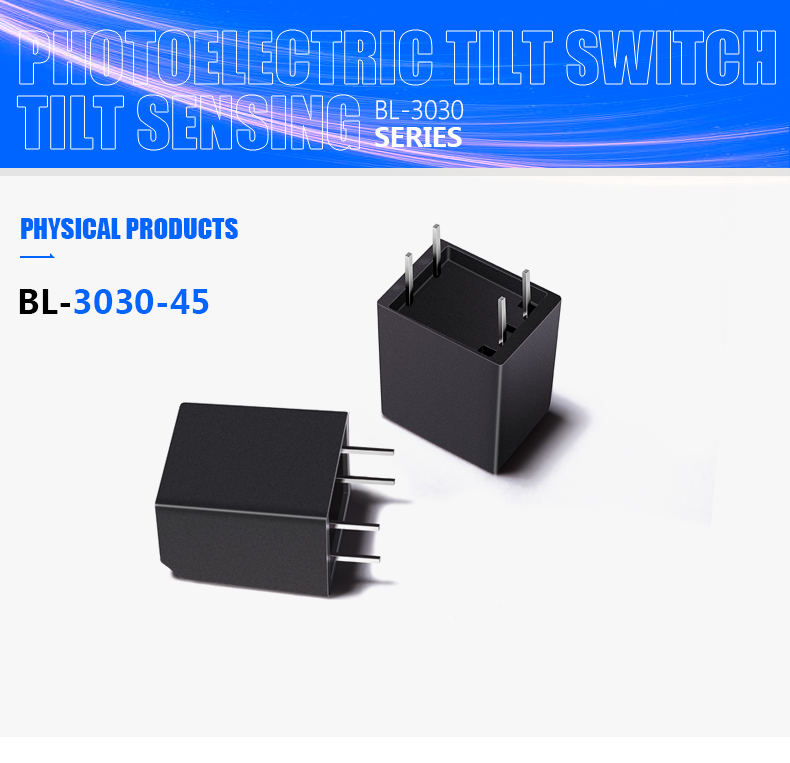

BL3030-45 photoelectric ball switch desktop heater anti-falling power failure tilt detection fall detection photoelectric switch

• BL-3030 is ball type photoelecric tilting sensing trigger switches.Adopting the photoelecrtic sensing,is not affected by metal oxide.
  In the normal ,switch lifespan can reach 100,000 hours.Switch meterial adopt the high temperature resistant engineer palstic and compliant with RoHS.
• Theory:Tilt angle protect funtion
• Product name:optical Sensor Switch
• Type:Electronic PCB Assembly
• Material::Plastic
• PCB Item::heater tilt switch
• Usage::Tilt detecting Sensor
• Output::Switching Transducer
• Item::Vertical mounted PCB
• Voltage::5v
• Keywords:photoelectric tilt switch
• Whether the smart:yes
• Place of Origin:CN;GUA
• Certification:ROHS
• Brand Name:BeeLee
• Model Number:BL3030-45
• Max. Current:<20mA
• Max. Voltage:<12V

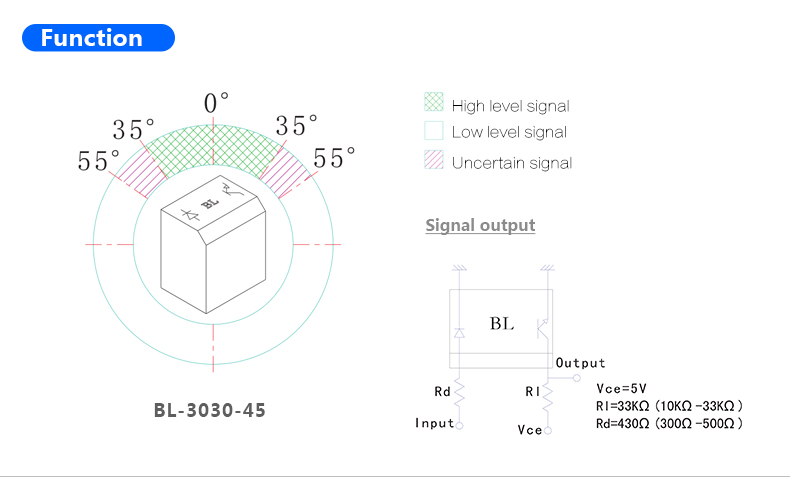

When the product upright,the output is high level .
When the products tilt to any direction
and more than 45 ?10 degrees, output is the low level .
