BL-SC2464 Omnipolar Hall IC UV disinfection box CMOS technological design Magnetic control Hall switch

• Place of Origin:Guangdong, China
• Brand Name:BeeLee
• Model Number:BL-SC-2464
• Type:Omnipolar Hall IC
• Application:UV disinfection box
• Supplier Type:Original manufacturer, ODM
• Media Available:datasheet, Photo
• Brand:Omnipolar Hall IC
• Color:BLACK
• Operating Temperature:-40 to 150 degree
• Switch Function:position detecting hall sensor
• Voltage Rating - AC:6V
• Voltage:6V
• Voltage - Switching AC:28
• Voltage - Switching DC:28
• D/C:009
• function:position detecting hall sensor

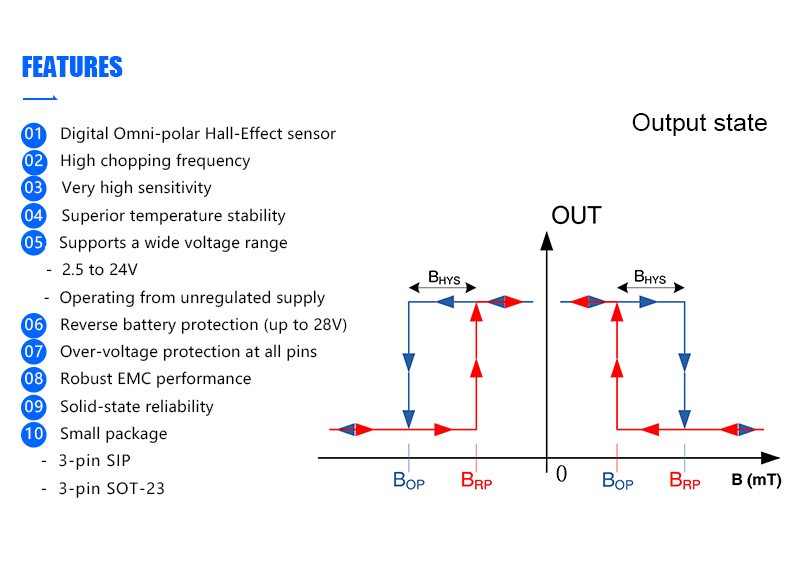

The SC246X family, produced with BiCMOS technology, is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.

01.The SC246X family, produced with BiCMOS technology,is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
02.Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over molding, temperature dependencies, and thermal stress.Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier,chopper stabilization, Schmitt trigger, and an open-drain output to sink up to 20mA.
03.An onboard regulator permits with supply voltages of 2.5 to 24V which makes the device suitable for a wide range of industrial and atuomotive applications

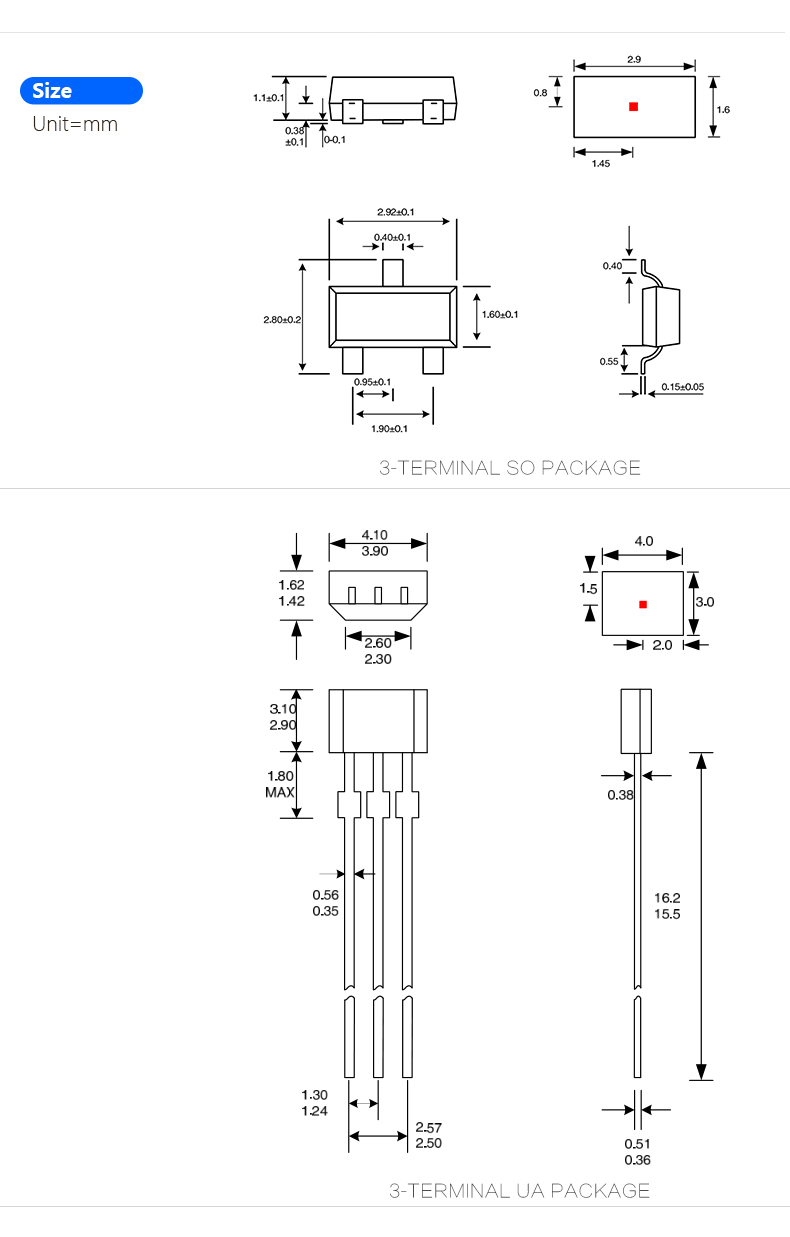

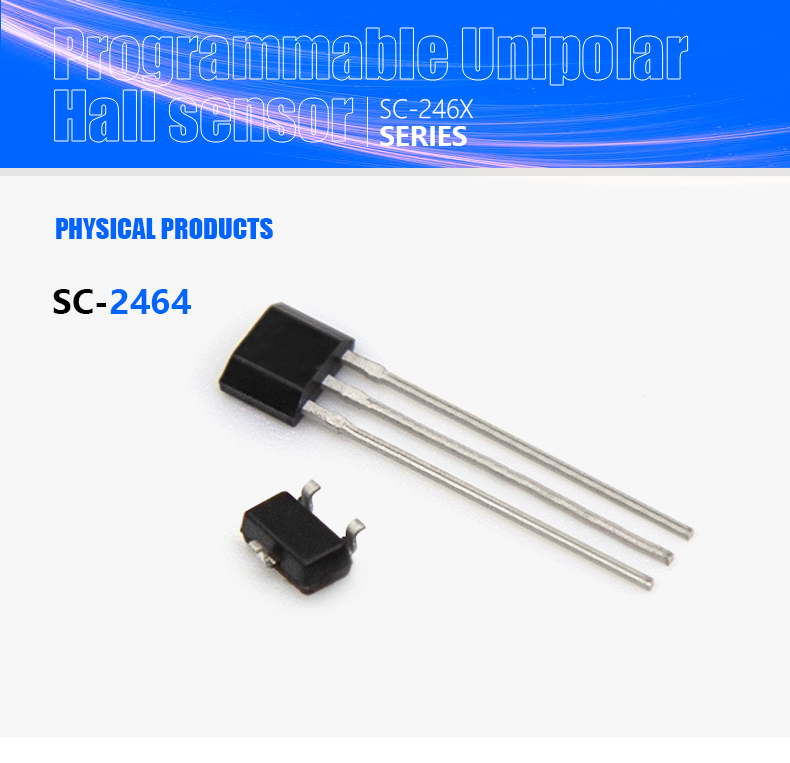

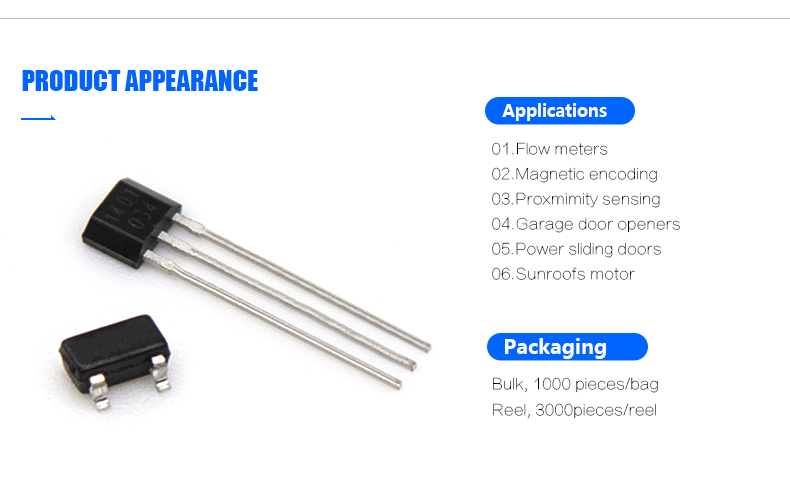

04.The device is available in a 3-pin SIP and a plastic SOT23-3 surface mount package. Both packages are lead(Pb) free, with 100% matte tin leadframe plating.
