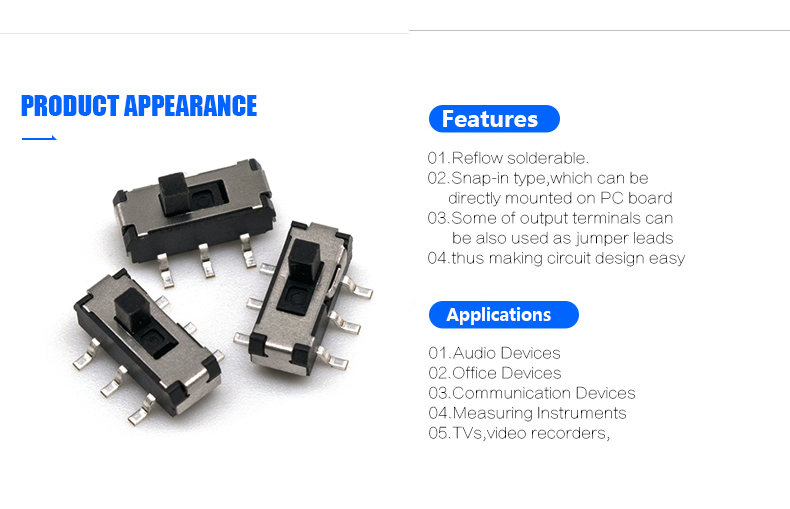

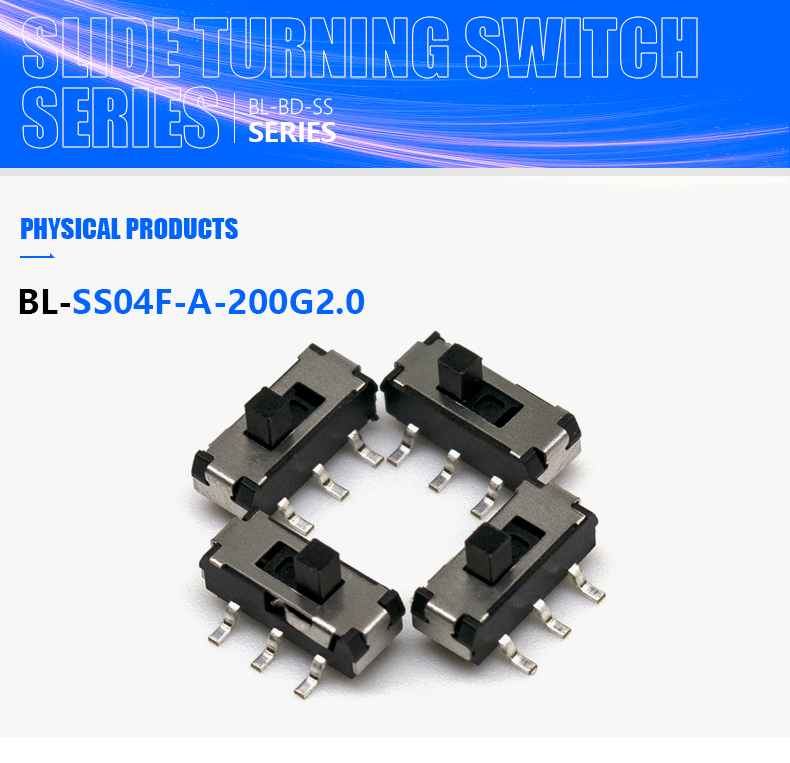

BL-BD-SS04F-A-200G2.0 manufacturer micro switch color slide for toys with ROHS
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-BD-SS04F-A-200G2.0
- Max. Current:100mA
- Max. Voltage:12V
- RATING:DC 12V 100mA
- Contact resistance:100mΩ MAX.
- Insulation impedance:50mΩ Min.
- OPERATING FORCE:200gf±50gf
- Pull force of terminal:500gf for 30 seconds
- Service life:7000-10000 Cycles

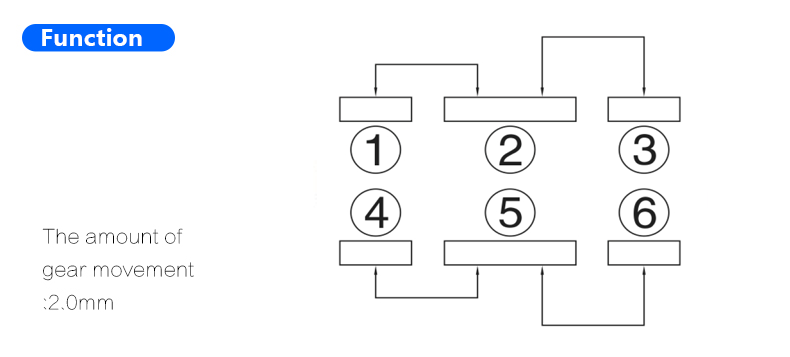

01.The BL-BD-SS04F-A-200G2.0 is a Horizontal toggle switch,The circuit is connected or disconnected by moving its actuators (switch handles).
02.Apply force (500gf) to the tip in either direction for 1 min. No cracks, grooves, etc. are found in the rows.Toggle switch requirements: to meet the mechanical, electrical properties.
03.It has intelligent functions such as delay, broadening, external synchronization, anti-interference, high reliability, stable working area and self-diagnosis.

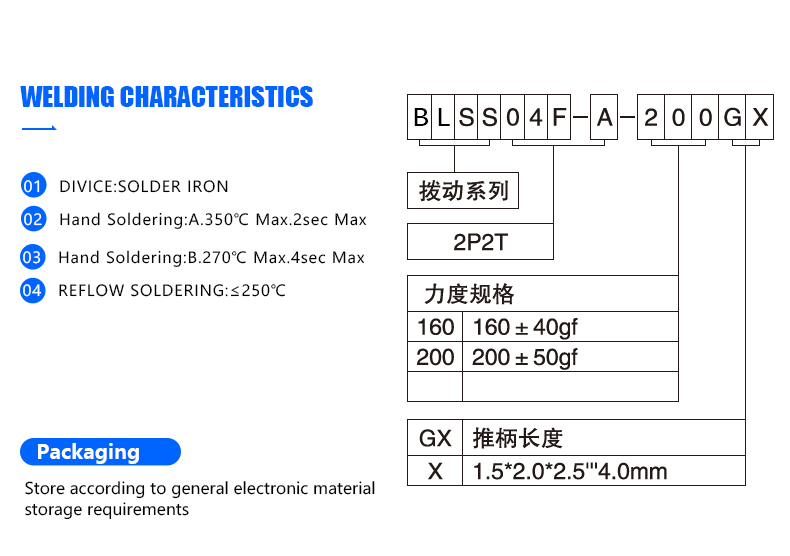

04.Avoid using water-soluble fluxes when soldering tin, which will adversely affect the metals and other materials that make up the toggle switch.
| RATING | DC 12V 100mA |
| Contact resistance | 100mΩ MAX. |
| Insulation impedance | 50mΩ Min. |
| OPERATING FORCE | 200gf±50gf |
| RELATIVE HUMIDITY | 45% TO 85% |
| Temperature range | Operating: -10℃+50℃ |
| Pull force of terminal | 500gf for 30 seconds |
| Service life | 7000-10000 Cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
