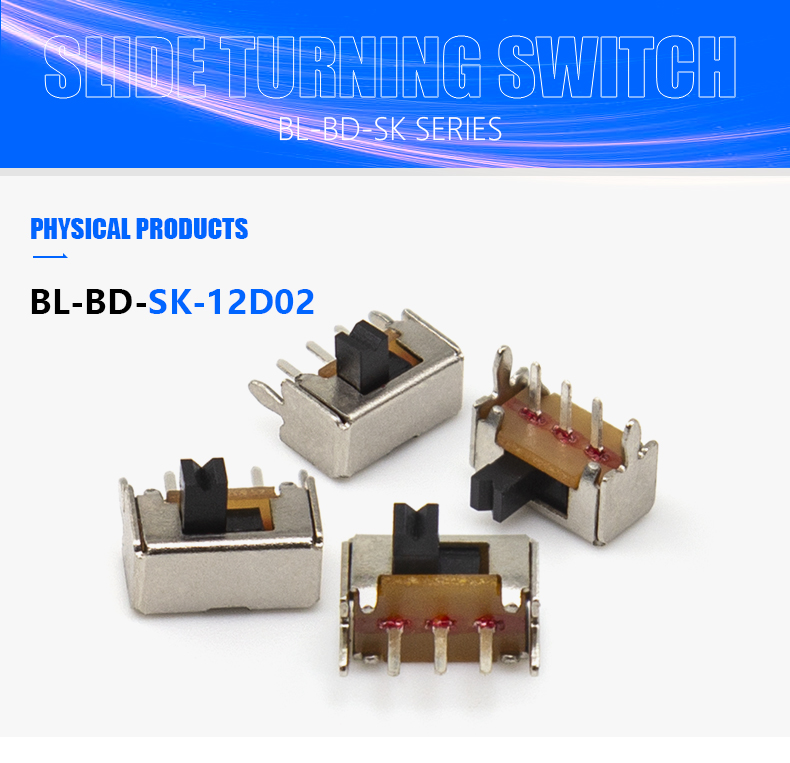

BL-BD-SK-12D02 manufacturer low profile DIP 2p3t slide switch
- Certification:RoHS
- Whether the smart:Yes
- Place of Origin:Guangdong, China
- Brand Name:BeeLee
- Model Number:BL-BD-SK-12D02
- Max. Current:0.3A
- Max. Voltage:DC 50V
- Voltage:50V
- Current:0.3A
- CONTACT RESISTANCE:70ohm
- Insulation Resistance:100Ohm at 500V DC
- Lifespan:10000cycles

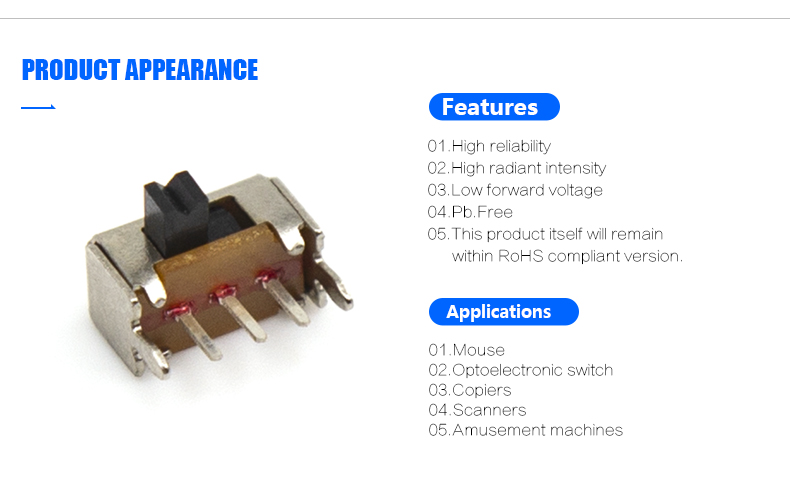

01.The BL-BD-SK-12D02 is a Horizontal toggle switch,The circuit is connected or disconnected by moving its actuators (switch handles).
02.Apply force to the tip in either direction. No cracks, grooves, etc. are found in the rows.Toggle switch requirements: to meet the mechanical, electrical properties.
03.It has intelligent functions such as delay, broadening, external synchronization, anti-interference, high reliability, stable working area and self-diagnosis.
04.Avoid using water-soluble fluxes when soldering tin, which will adversely affect the metals and other materials that make up the toggle switch.
| service temperature | -25℃~+85℃ |
| Relative humidity | ≤85%RH |
| Rating | DC 50V 0.3A |
| Contact resistance | ≤100mΩ |
| Insulation resistance | ≥100MΩ |
| Withstand voltage | AC 500V 1 min |

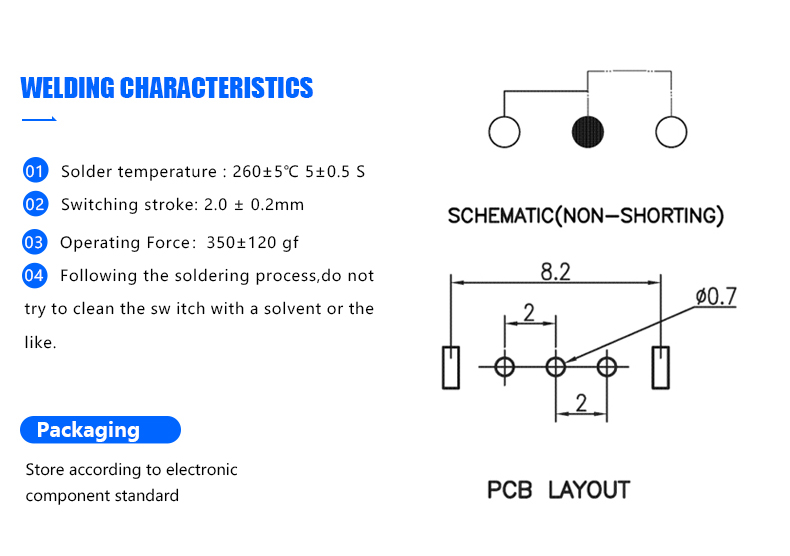

| Welding temperature | 260±5℃ 5±0.5s |
| Operating force | 350±120gf |
| Switching stroke | 2mm±0.2mm |
| mechanical life | ≥10,000 Cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
