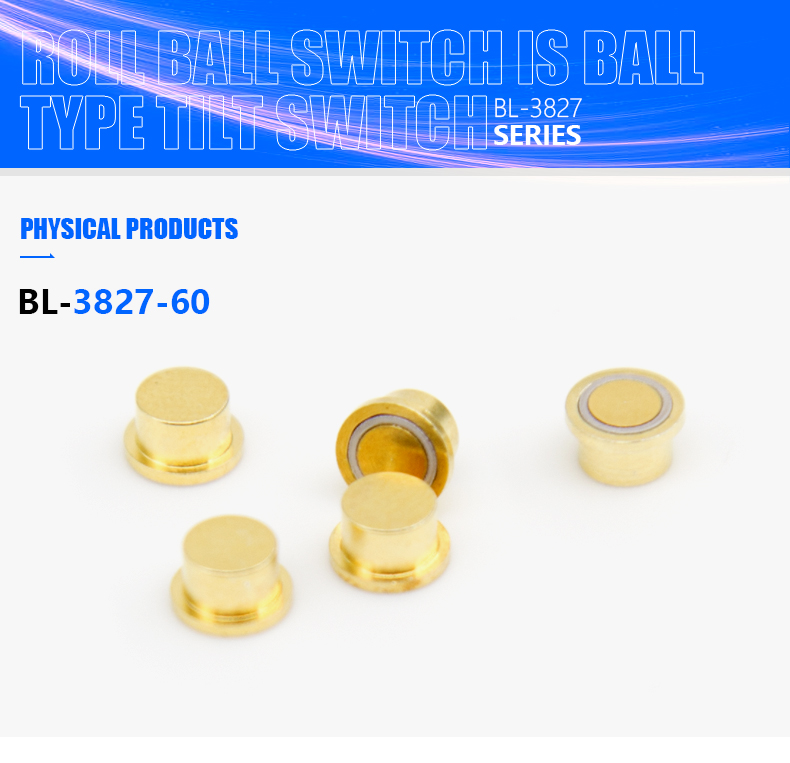

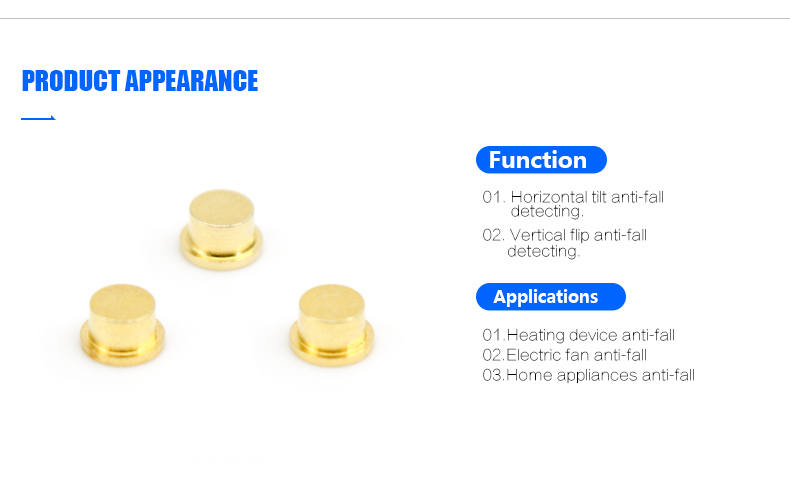

BL-3827-60 SMD ball switch UV light gravity sensor switch

• BL-3827 Series is Roll ball tilt switch.When the product is upright,it will be a OFF-stated.When the product tilt to any direction and more than some angle ,the switch will be ON-state.
  The product totally sealed .waterproof ,dustproof.
  Switch material comply with ROHS and can replace the mercury switch.
• Lifespan:100,000 cycles
• Name:Ball tilt switch
• Model:BL-3827-60
• Brand:BeeLee
• Type:tilt sensor smd
• Supplier Type:Original manufacturer
• Supplier Type:ODM
• Media Available:datasheet
• Media Available:Photo
• Place of Origin:CN
• Model Number:BL-3827-60
• Application:Angle detection
• Brand Name:Beelee
• Brand:tilt sensor smd
• Operating Temperature:-40to 80°C

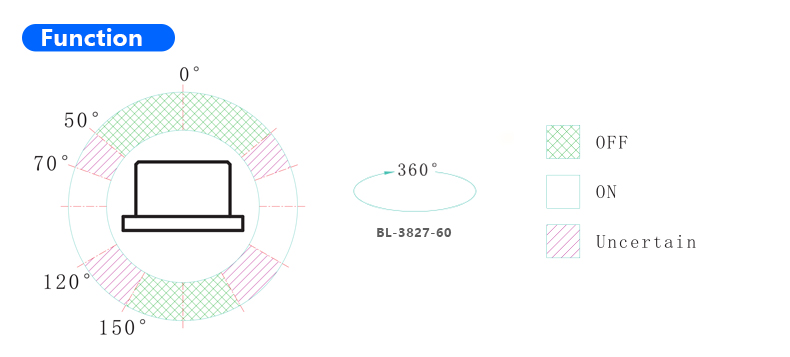

When the product upright is in OFF-state, as the products tilt to any direction
and exceed 60±10 degrees, switch stay in a disconnect ON-state.

01.BL-3827 is Ball type tilt vibration sensitive switch.
02.When the product upright is in OFF-state, as the products tilt to any direction
and exceed 45±10 degrees, switch stay in a disconnect ON-state. 03.Product completely airtight, waterproof, dustproof.
04.In the normal, switch life can reach 100,000 cycles lifespan.
05.Material compliant with ROSH directive, replace the mercury switch.
06.Simple for switch signals and circuit , and economic price.
