vibration switch

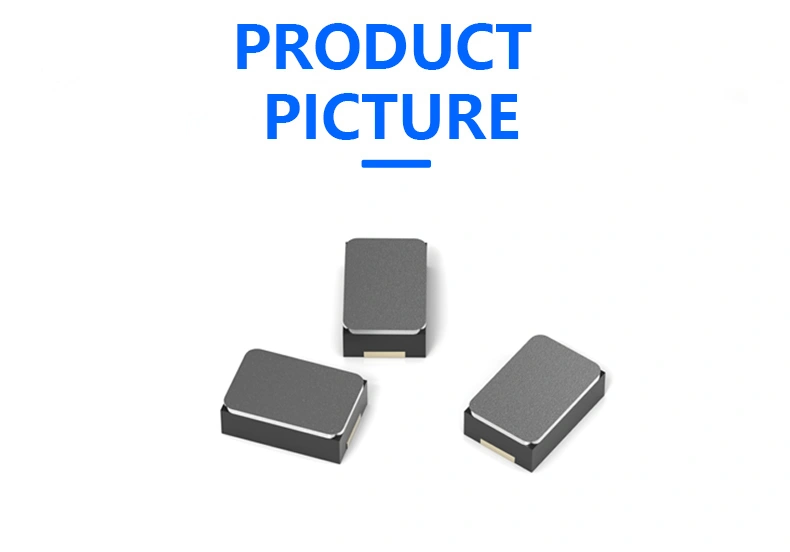

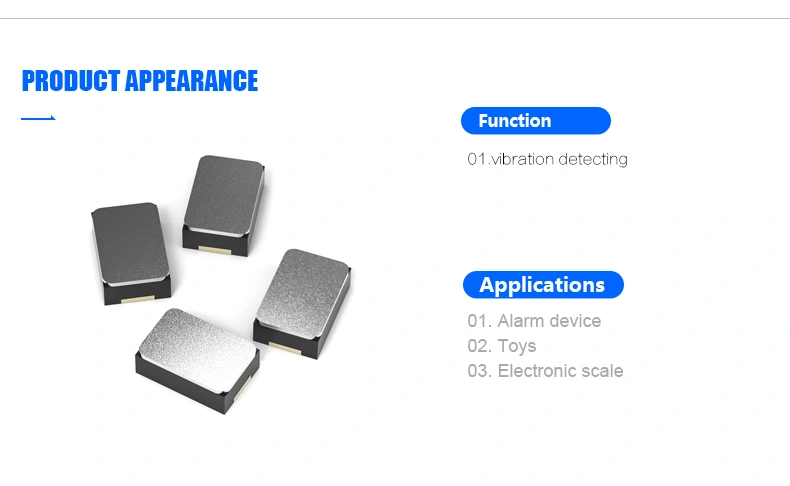

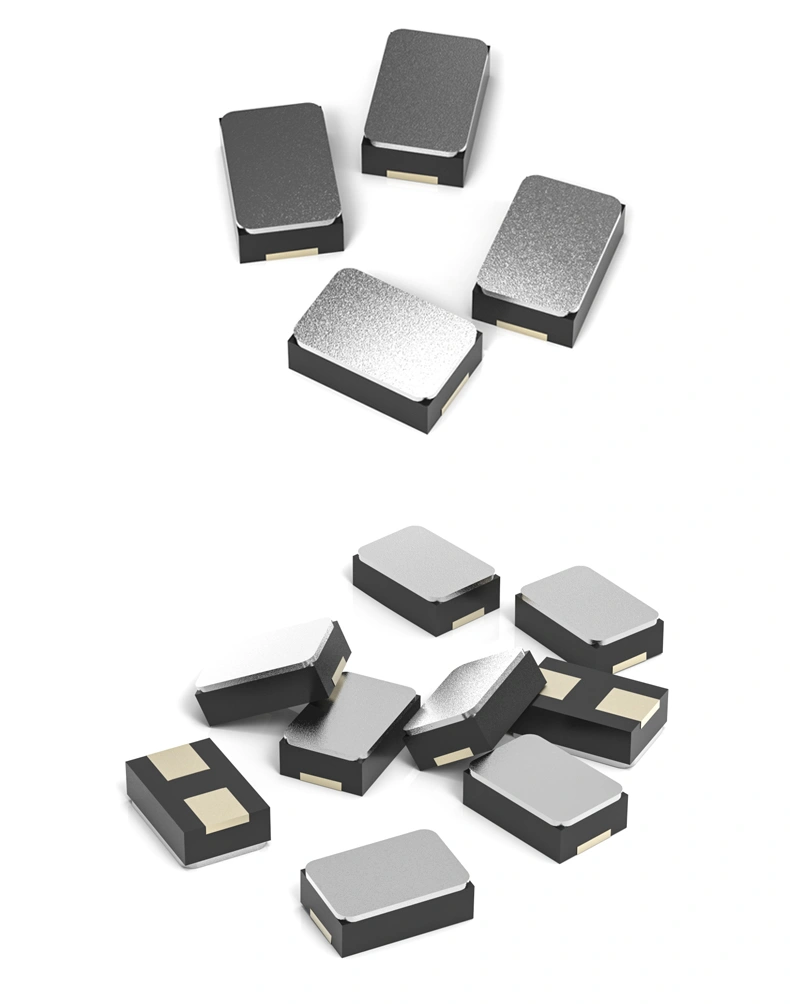

BL-3207 Spring-type High Sensitivity Vibration Switch

BL-3207
Highly sensitive vibration switches are often used in a variety of applications, including but not limited to smartphones, electronic equipment, security systems, industrial monitoring, and scientific experiments. When selecting a highly sensitive vibration switch, it is necessary to balance the needs of sensitivity, response time, durability, etc. according to the requirements of the specific application.
minimum order
1 piece
Quantity:
Contact Now
add to cart
Highly sensitive vibration switches are often used in a variety of applications, including but not limited to smartphones, electronic equipment, security systems, industrial monitoring, and scientific experiments. When selecting a highly sensitive vibration switch, it is necessary to balance the needs of sensitivity, response time, durability, etc. according to the requirements of the specific application.

  • Brand Name:GBeelee
  • Model Number:BL-3207
  • Max. Current:50ma
  • Max. Voltage:12V DC
  • Features:spring switch
  • Type:Vibration switch
  • Certificate:ROHS ISO9001
  • Application:toys,smartphones, electronic devices, security systems, industrial monitoring and scientific experiments
  • Voltage:12V

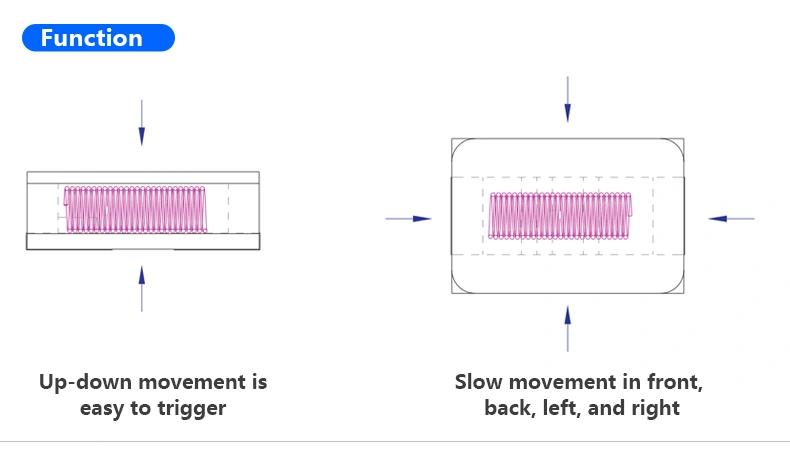

01.This product is spring type, no directional vibration sensor trigger switch, any angle can trigger。

02.Switch is open circuit OFF-state, when it is static, when external force to touch and corresponding vibration, or movement speed achieve adequate (partial) centrifugal force, conductive pick feet will produce instant conductivity is instant ON-state, when external force disappear, switch back to open circuit OFF-state.





Voltage
1-6V
Current
2uA-10mA
Conductive time
About 2ms
Cond uction mode
Discontinuous conduction mode
Open resistance
>10MΩ
Operating Temperature
-25℃ to 85℃
Storage Temperature
-10℃ to 40℃
Pull force of terminal
300gf for 1 minute
Salt mist test
95% RH, 40℃ for 24 hours
Operatin g life
200,000 times






Q1:How can I get more information about your product?
A1:Please send the inquiry for us, and then we can send the detail including spec and offer to you.
Q2:Do you accept OEM or ODM?
A2:Yes,But we have quantity requirements.
Q3:What is the payment way of your company?
A3:100% T/T in advance before shipping,(We can accept payment such as T/T, Paypal,Western Union,Alibaba trade assurance,Etc. )
Q4:What is the shipping way?
A4: Usually by air (DHL,UPS,TNT, FedEx etc).
Q5:How long for manufacturing once we place order?
A5: 10000pcs within 5-10days
Q6:How long for samples order?
A6: Usually within 24hour
