BL-3150-45 upright tilt switch sitting posture corrector tilt detection

BL-3150-45

minimum order

1 piece

Quantity:

Contact Now

add to cart

Model Number:BL-3150-45
Place of Origin:Guangdong, China
Brand Name:Beelee
Type:Tilt Switch
Name:Roll ball Switch
Certificate:ROHS, REACH ISO9001
Rated voltage:12v
Keywords:Tilt Switch
Application:kettle
Feature:Tilt 45 degree detecting
Brand:BeeLee
Current:50MA
Voltage:12V

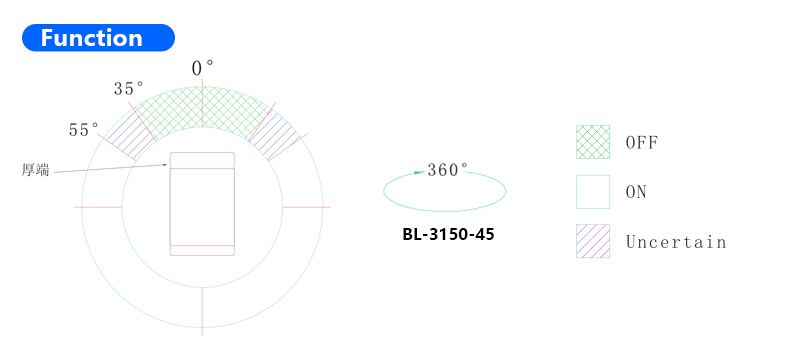

When the products is upright , the output is high level . When the products
tilt to trigger direction and more than degree, output is the low level .

File No	OFF-STATE	Tilt direction	Tilt angle	ON-STATE
BL-3150-20	upright/high level	Trigger direction	20±10°	low level
BL-3150-25	upright/high level	Trigger direction	25±10°	low level
BL-3150-45	upright/high level	Trigger direction	45±10°	low level

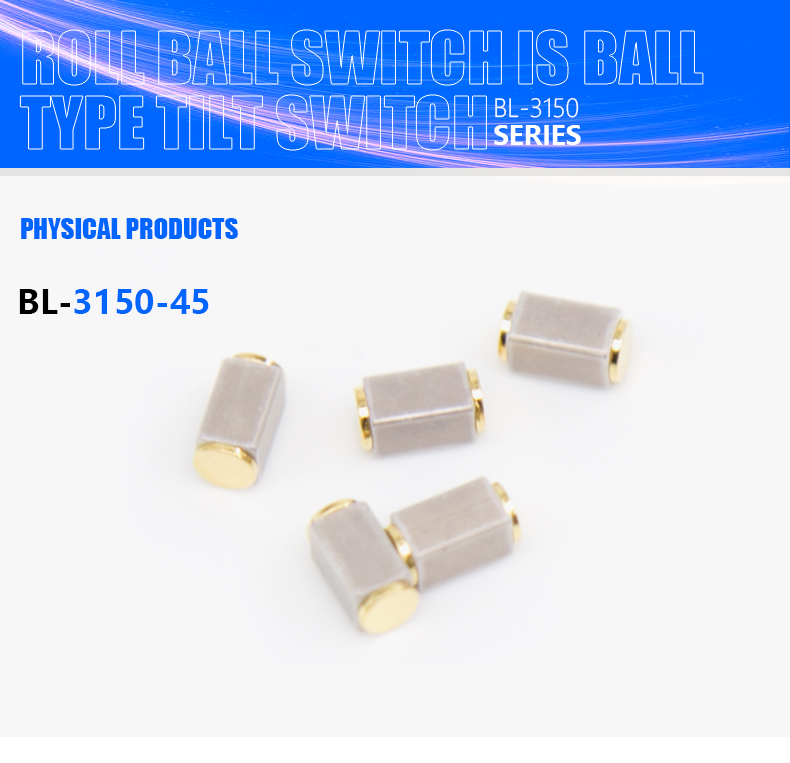

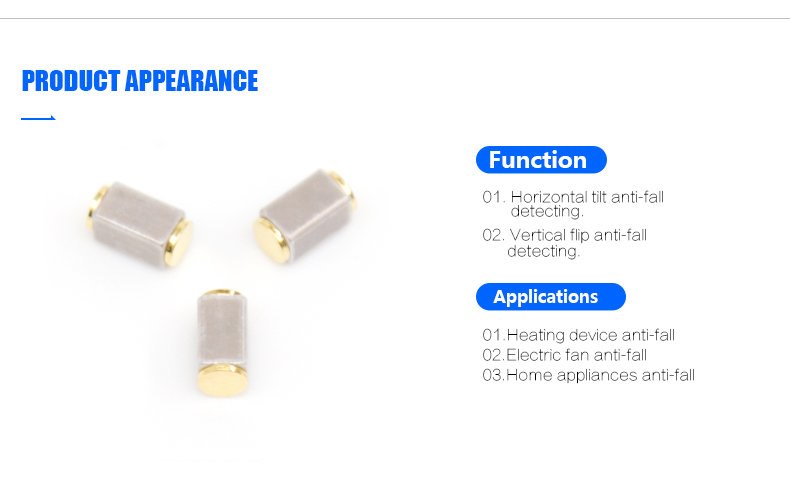

01.BL-3150 is Ball type tilt vibration sensitive switch.
02.When the products is upright , the output is high level . When the products
tilt to trigger direction and more than 45 degree, output is the low level . 03.Product completely airtight, waterproof, dustproof.
04.In the normal, switch life can reach 100,000 cycles lifespan.
05.Simple for switch signals and circuit , and economic price.

1	Voltage	<6V
2	Current	<20mA
3	Conductive time	about 2ms
4	Closed resistance	<30 ohm
5	Insulation resistance	>10M ohm
6	Temperature range	Operating: -40℃ to 80℃
7	Pull force of terminal	50gf for 1 minute
8	Salt mist test	95% RH, 40℃ for 24 hours
9	Service life	50,000 hours

FAQ

1. How could I know your quality ?
We are manufactory for kinds of Tilt switch and vibration sensor,Reed Switch, Push button switch,Tact switch for more than 15 years , quality is guaranteed with full inspection before shipment , Also we could offer free samples for your testing .

2.How could I get more of your product details ?
We could offer you detailed specification and datasheet for each model .

3.What's the MOQ and delivery time ?
MOQ is 1000pcs, 3-5 days for production .

4.What's the production capacity per month ?
10,000,000pcs

5.What's your factory size ?
7000 sqm
