BL-2462 omnipolar CMOS Technological Design Magnetic control Hall Switch for UV disinfection box

The input terminal of the Hall switch is characterized by the magnetic induction intensity B. When the B value reaches a certain level (such as B1), the internal trigger of the Hall switch is reversed, and the output level state of the Hall switch is also reversed. The output terminal generally adopts transistor output, and similar to proximity switches, there are NPN, PNP, normally open, normally closed, latched (bipolar), and dual-signal output.

• BL-2462 Omnipolar Hall IC UV disinfection box CMOS technological design Magnetic control Hall switch
• Output terminal voltage:-0.5-60
• Product name:Hall sensor Switch
• Output terminal current sink:ISINK 0-50
• Material::chip
• Operating ambient temperature:-40+150TA
• Maximum junction temperature:-55 +165
• Power supply voltage:-40 +60
• Item::Vertical mounted PCB
• Voltage::2.5-24v
• Keywords:Hall sensor
• Whether the smart:yes
• Place of Origin:CN;GUA
• Certification:ROHS
• Brand Name:BeeLee
• Model Number:BL-2462
• Max. Current:<20mA
• Max. Voltage:<12V

The SC246X family, produced with BiCMOS technology,
is a chopper-stabilized Hall Effect Sensor that offers a
magnetic sensing solution with superior sensitivity
stability over temperature and integrated protection
features.

01.The SC246X family, produced with BiCMOS technology,is a chopper-stabilized Hall Effect Sensor that offers a magnetic sensing solution with superior sensitivity stability over temperature and integrated protection features.
02.Superior high-temperature performance is made possible through dynamic offset cancellation, which reduces the residual offset voltage normally caused by device over molding, temperature dependencies, and thermal stress.Each device includes on a single silicon chip a voltage regulator, Hall-voltage generator, small-signal amplifier,chopper stabilization, Schmitt trigger, and an open-drain output to sink up to 20mA.
03.An onboard regulator permits with supply voltages of 2.5 to 24V which makes the device suitable for a wide range of industrial and atuomotive applications

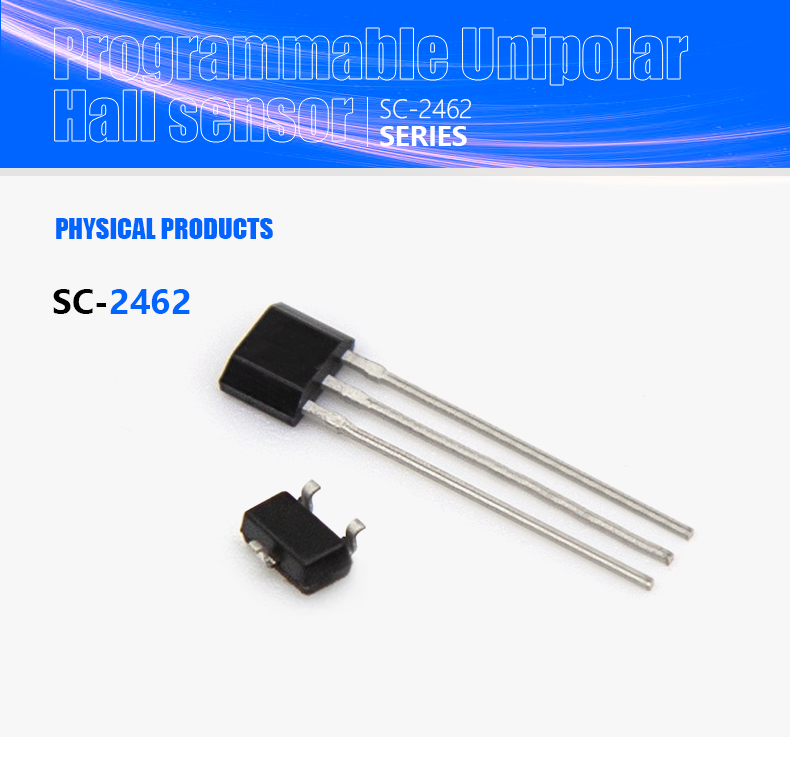

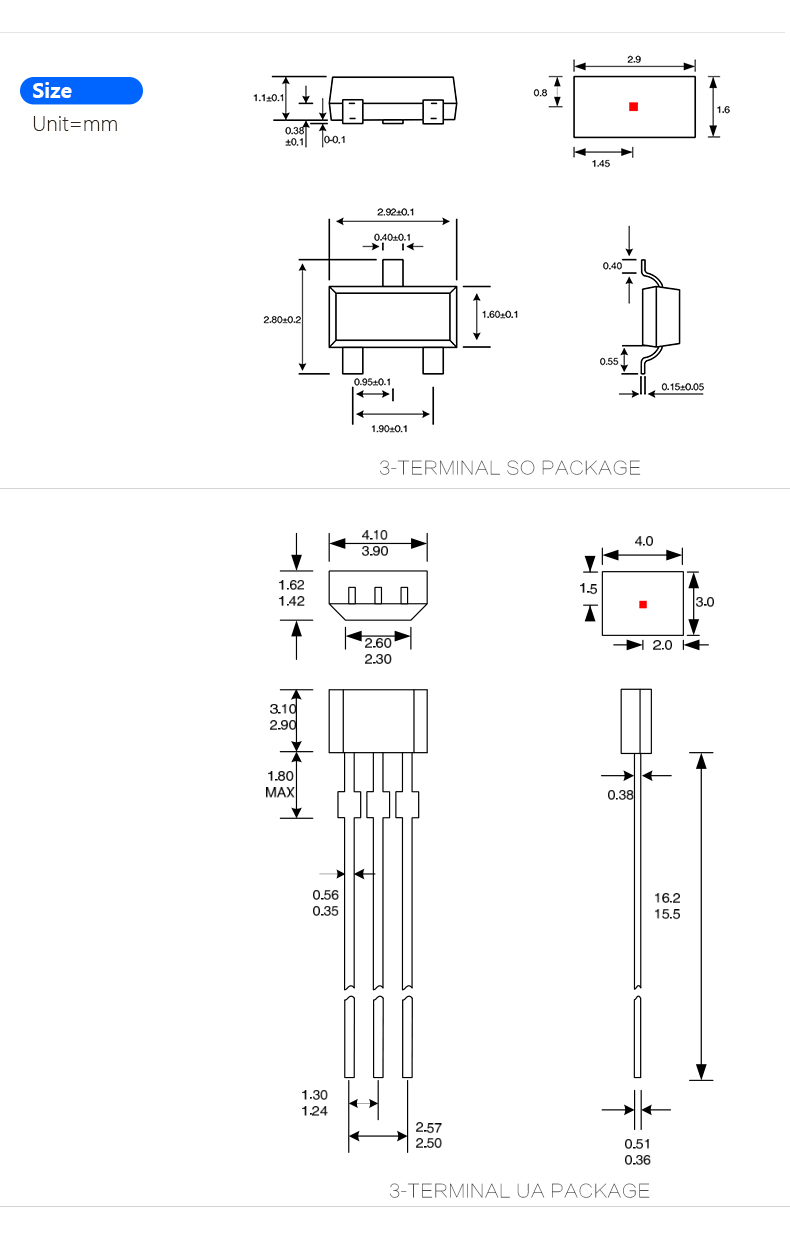

04.The device is available in a 3-pin SIP and a plastic SOT23-3 surface mount package. Both packages are lead(Pb) free, with 100% matte tin leadframe plating.
