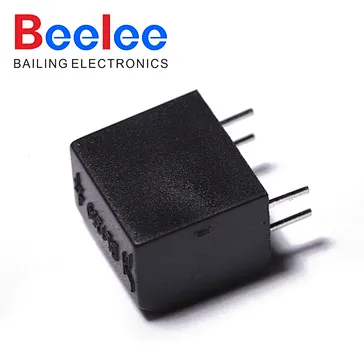

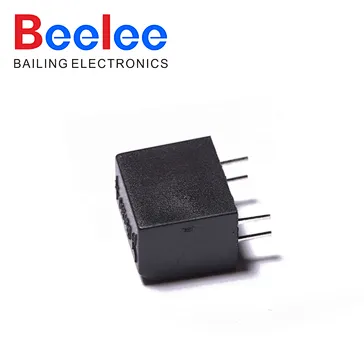

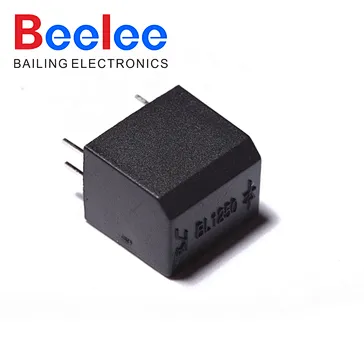

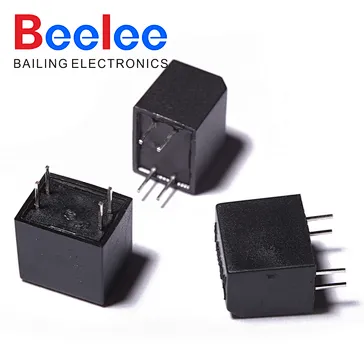

BL-1250-45 Vertical mounted PCB optical sensor switch within a 360 degree sensor switch 45degree tilt cut down

BL-1250-45

Quantity:

Contact Now

add to cart

BL-1250 is ball type photoelecric tilting sensing trigger switches.Adopting the photoelecrtic sensing,is not affected by metal oxide.
In the normal ,switch lifespan can reach 100,000 hours.Switch meterial adopt the high temperature resistant engineer palstic and compliant with RoHS.
Theory:Tilt angle protect funtion
Product name:optical Sensor Switch
Type:Electronic PCB Assembly
Material::Plastic
PCB Item::heater tilt switch
Usage::Tilt detecting Sensor
Output::Switching Transducer

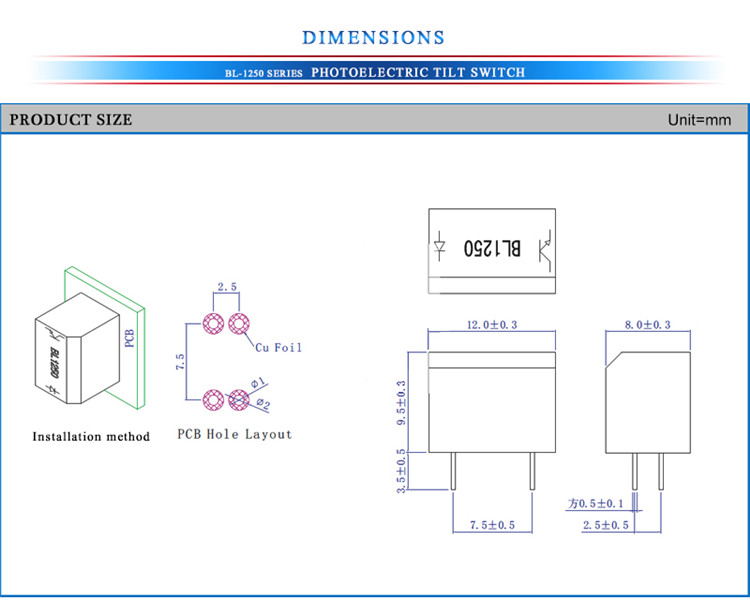

Item::Vertical mounted PCB

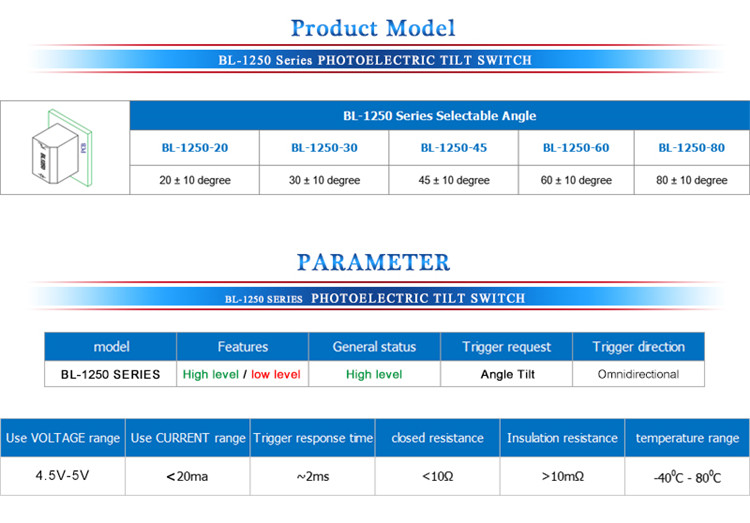

Voltage::5v
Model Number:BL-1250-45
Brand Name:BeeLee
Place of Origin:CN;GUA
Max. Current:50Ma
Max. Voltage:5v

Functions:

1	Tilt Detecting within a 360° radius, Can be activated at 20degree, 30degree, 45degree, 60degree etc. (Other tilt angle can be customize)
2	Vibration Detecting
3	Tilt angle auto ON/OFF for safety device
4	Horizontal/ vertical /hang-up detecting

Advantage

1	Automatically shut off for home appliances, (Such as Heater, rice cooker, Electric iron,Fan,Air cleaner)

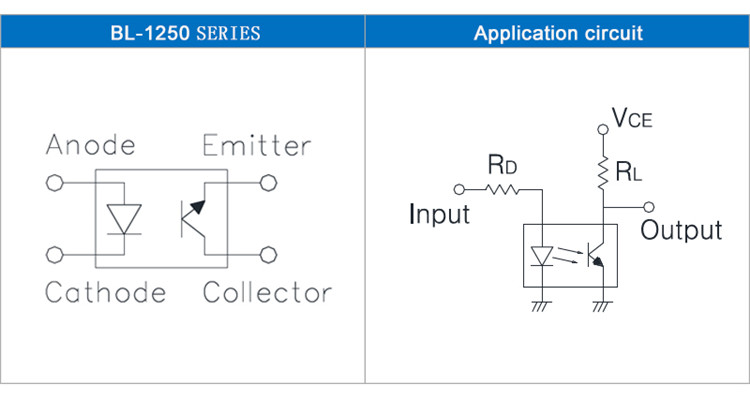

2	Using photo transistors to detect signal makes the signal highly reliable and stable.
3	Simple ON and OFF signals, easy for design.
4	RoHS compliance, an ideal substitute for mercury switch
5	A more economical tilt and vibration detection option than IC design solution

Applications

1	Automatically shut off for home appliances, (Such as Heater, rice cooker, Electric iron,Fan,Air cleaner)
2	Automatically shut off for Sporting equipment
3	Alarm System
4	Anti-theft/Anti-tamper devices.
