BL-106D angle tilt sensor switch 360 degree omnidirectional tilt 45 degree open circuit tilt detection switch

BL-106D

Quantity:

Contact Now

add to cart

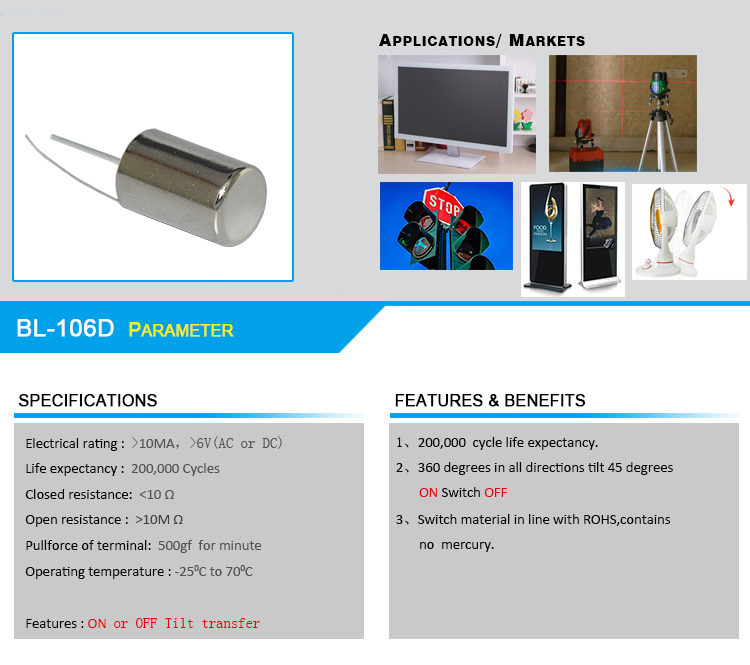

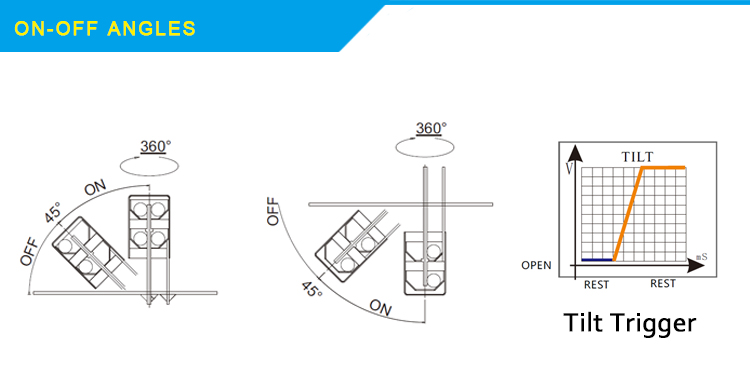

SW-106D is ball type tilt switch. When the product is upright ,it will be a conductive ON-state .When the product tilt to any direction and more than 45 degree,switch will be disconnection OFF-state.
Brand Name:beelee
Model Number:BL-106D
Max. Current:>20ma
Max. Voltage:>6V
Place of Origin:CN;GUA
Type:Tilt detecting
Product name:Tilt Switch
Certificate:ROHS
Function:TILT DETECTING
Application:Electric Appliances
Feature:Tilt trigger
Rated voltage:6V
Keywords:TILT SWITCH
Brand:BeeLee
MOQ:100PCS
