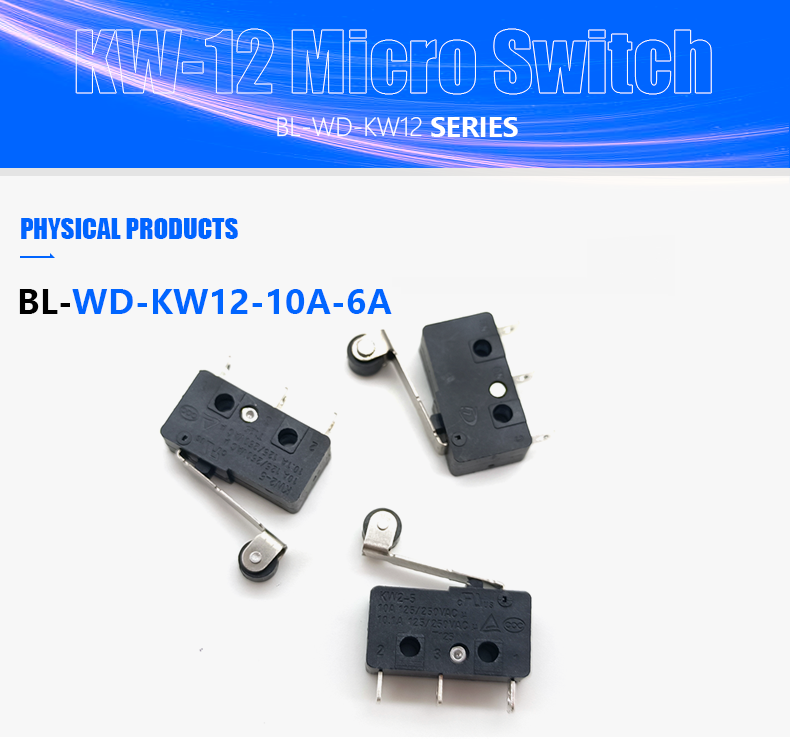

Beelee wireless latching micro switch smd micro switch for test instrument
BL-WD-KW12-10A-6A
minimum order
1 piece
Quantity:
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-WD-KW12-10A-6A
- Operating speed:0.1mm-1m/s
- Mechanical frequency:60 cycles/min
- Electrical frequency:25cycles/min
- Insulation resistance:500VDC
- Vibration resistance:10-55Hz
- Mechanical life:≥1,000,000 cycles
- Electrical life:≥10,000 cycles

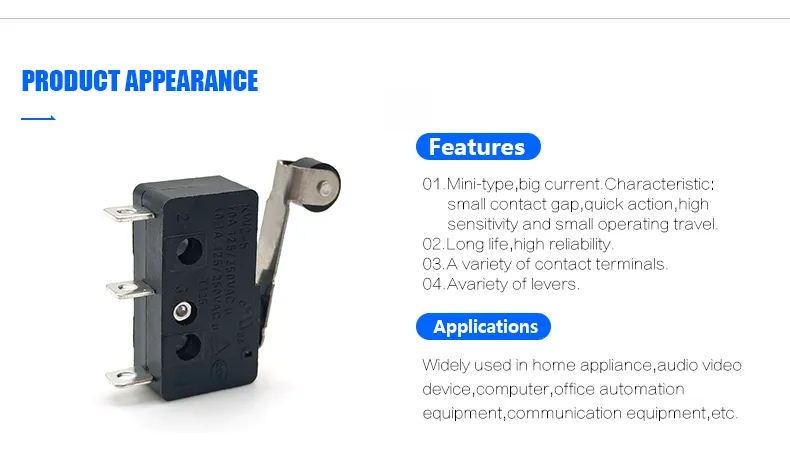

01.The BL-WD-KW12-10A-6A is Nice appearance,tight configuration. Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.
02.Please pay attention to the temperature class,if use it beyond the temperature class,switch standard characteristics cannot be guaranteed.
03.About the low operating force switches,please do not drop the switch so as to avoid damage to inside structure,because it is of special structure.
04.Please turn off the power when installing,disassembling,wiring work and maintenance check,otherwise,electric shock and burn will happen.
| Operating speed | 0.1mm-1m/s(related withactuator forms) | |
| Operating frequency | Mechanical 60 cycles/min;Electrical 25cycles/min | |
| Insulation resistance | 500VDC | |
| Test voltage | Between terminals of the same polarity | AC1000V,50/60Hz,1min |
| Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts. | AC1500V,50/60Hz,1min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction:OF>0.5N:1000m/s2(approx.100G)max OF≤0.5N:500m/s2(approx.50G)max Malfunction:OF>0.5N:300m/s2(approx.30G)max OF≤0.5N:200m/s2(approx.20G)max | |
| Life | Mechanical ≥1,000,000 cycles;Electrical ≥10,000 cycles | |
