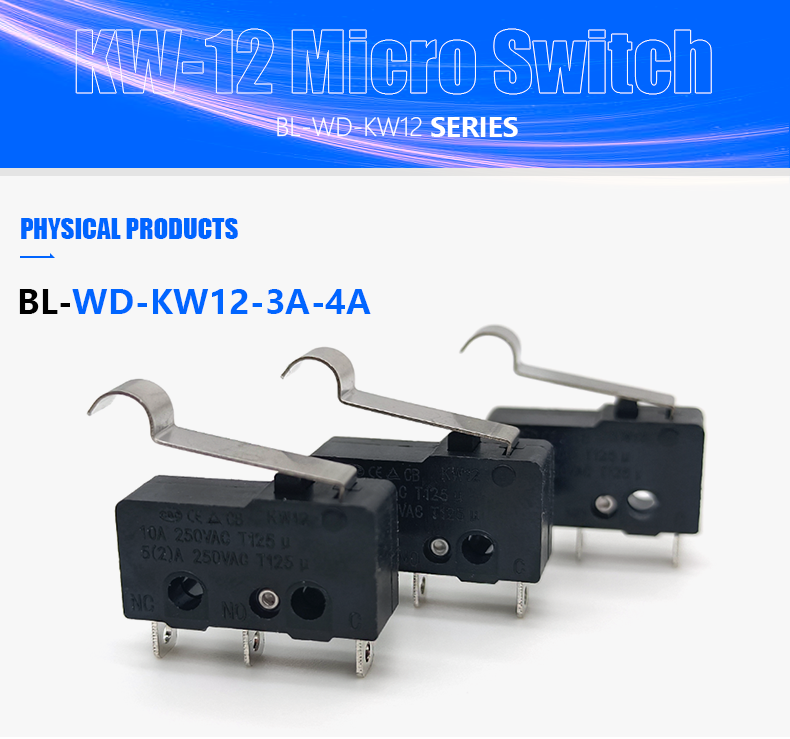

Beelee micro pressure switch 4 pins micro switch waterproof for communication equipment
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-WD-KW12-3A-4A
- Insulation resistance:500VDC
- Mechanical life:≥1,000,000 cycles
- Electrical life:≥10,000 cycles
- Vibration resistance:10-55Hz,1.5mm double amplitude

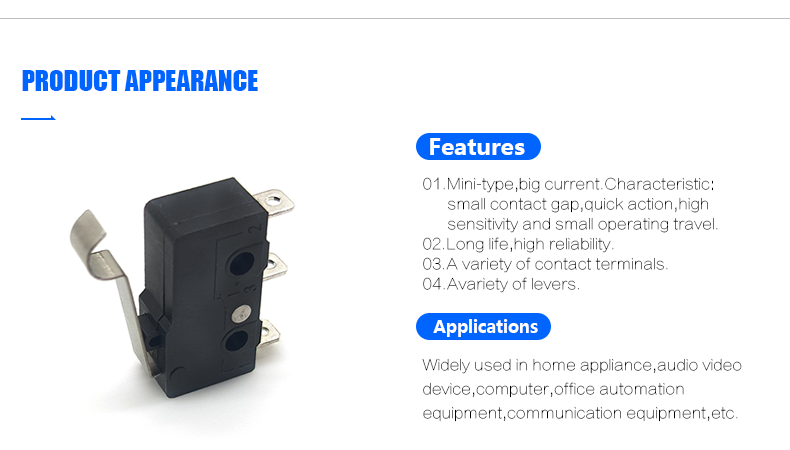

01.The BL-WD-KW12-3A-4A is Nice appearance,tight configuration. Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.
02.Please pay attention to the temperature class,if use it beyond the temperature class,switch standard characteristics cannot be guaranteed.
03.About the low operating force switches,please do not drop the switch so as to avoid damage to inside structure,because it is of special structure.
04.Please turn off the power when installing,disassembling,wiring work and maintenance check,otherwise,electric shock and burn will happen.
| Operating speed | 0.1mm-1m/s(related withactuator forms) | |
| Operating frequency | Mechanical 60 cycles/min; Electrical 15cycles/min | |
| Insulation resistance | 500VDC | |
| Test voltage | Between terminals of the same polarity | AC500V,50/60Hz,1min |
| Between current-carrying metal parts and ground(case),and between each terminal and non-current-carrying metal parts. | AC1500V,50/60Hz,1min | |
| Vibration resistance | 10-55Hz,1.5mm double amplitude | |
| Shock resistance | Destruction:OF>0.5N-1000m/s2(approx.100G)max OF≤0.5N-500m/s2(approx.40G)max Malfunction:OF>0.5N-300m/s2(approx.20G)max OF≤0.5N-200m/s2(approx.10G)max | |
| Life | Mechanical ≥1,000,000 cycles Electrical ≥10,000 cycles | |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
