BL-HE-910X Beelee hall effect sensor smd hall switch for aquarium supplies

• Model Number:BL-HE-910X
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Supply Voltage:30V
• Reverse Battery Voltage:0.2V
• Output Voltage:30V
• Continuous Output Current:5mA
• Operating Ambient Temperature:-40~150 ℃
• Storage Temperature:-40~160 ℃

The BL-HE-MT910X device is a linear Hall effect IC that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications.

01.The BL-HE-MT910X device is a linear Hall effect IC that responds proportionally to magnetic flux density. The device can be used for accurate position sensing in a wide range of applications.

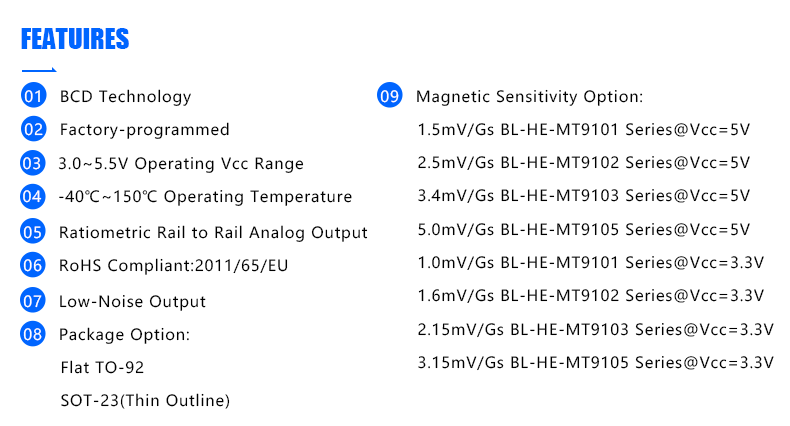

02. The device operates from 3.0V to 5.5V power supplies. When no magnetic field is present, the analog output drives ½ of VCC. The output changes linearly with the applied magnetic flux density, and four sensitivity options enable maximal output voltage swing based on the required sensing range. North and south magnetic poles produce unique voltages.

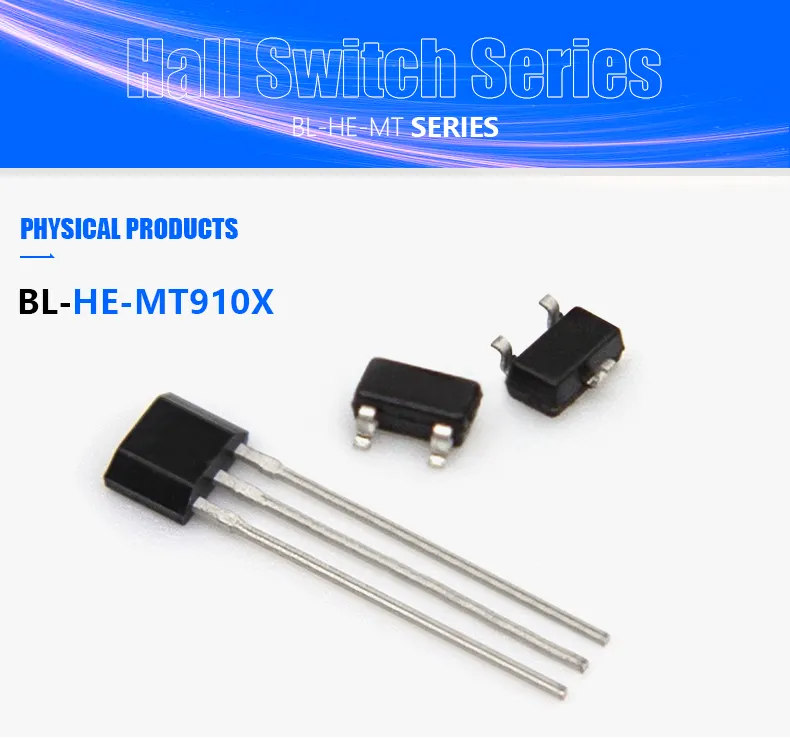

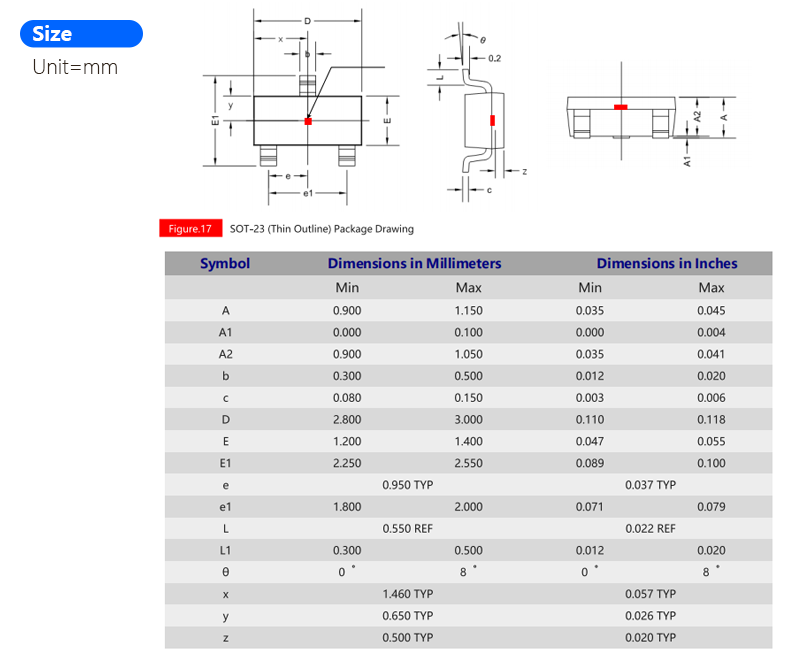

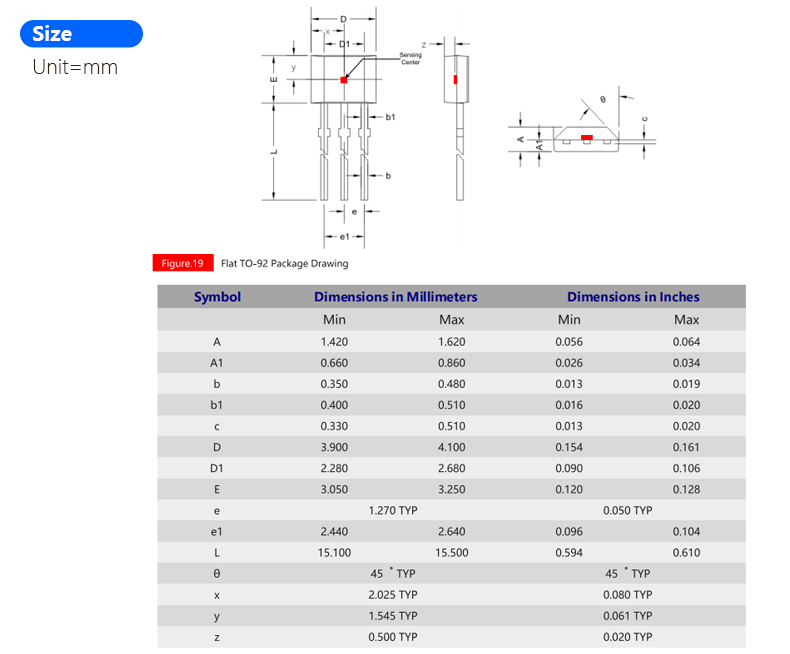

03.The BL-HE-MT910X family provides a variety of packages to customers. SOT-23 (Thin Outline) for surface mount and flat TO-92 for through-hole mount. All packages are RoHS compliant.

1.Q:Can I get sample from you?

A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.

2.Q:Do you accept customization?

A:Yes,customization is acceptable,please contact our sales staffs for consult.

3.Q:Can you provide help for technical issues?

A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
