Beelee BL-JDQ-22F automotive relay 12 volt auto relay 12v 40a

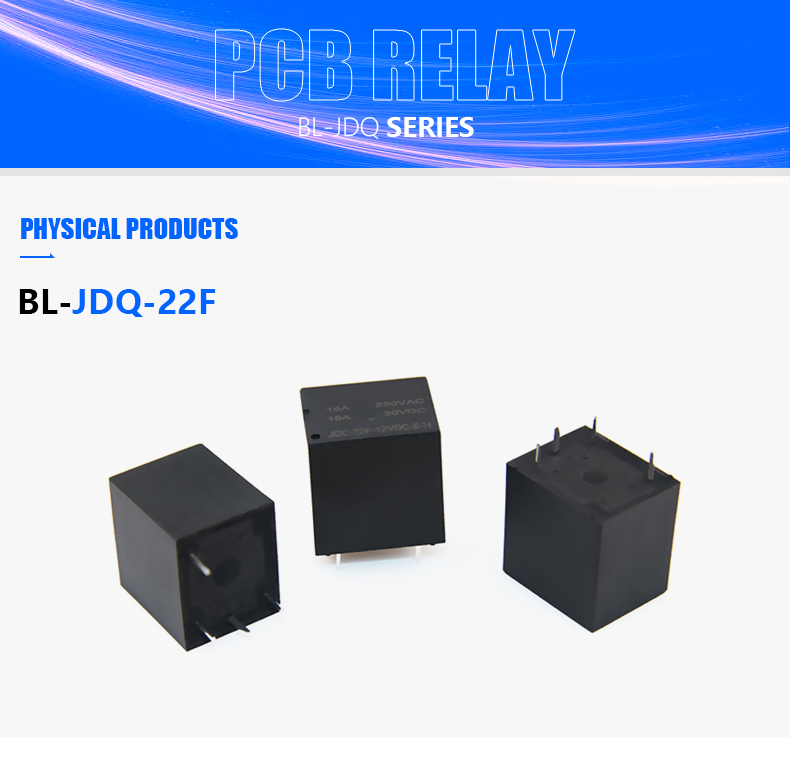

BL-JDQ-22F
minimum order
1 piece
Quantity:
- Place of Origin:Chian
- Brand Name:Relay
- Model Number:BL-JDQ-22F
- Type:POWER RELAY
- Insulation Resistance:100MΩMin at 500VDC
- Between Contacts and coil:1500VAC(for one minute)
- Operate Time:10ms
- Release Time:5ms
- Temperature Range:-40℃to+70℃(Class F:85℃)
- Shock Resistance:Operating Extremes: 10G
- Vibration Resistance:10-55Hz, 1.5mm
- Humidity:40-85%
- Weight:Approx 13g

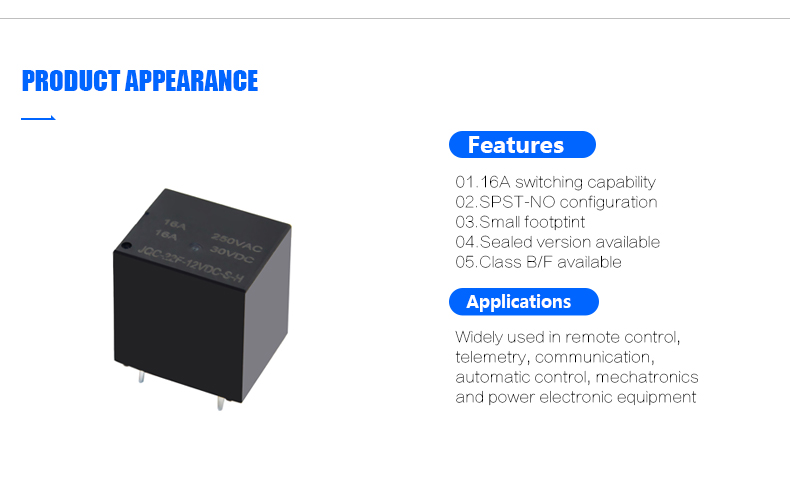

01.16A switching capability
02. SPST-NO configuration
03.Small footptint
04.Sealed version available
05.Class B/F available

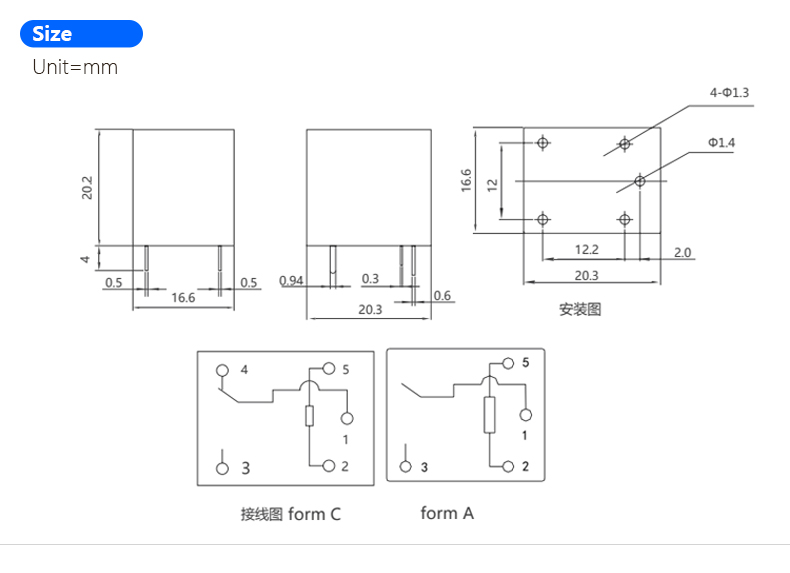

06.Size:20.3*16.6*20.2
| Insulation Resistance | 100MΩMin at 500VDC |
| Dielectric Strength Between Open Contacts | 750VAC( for one minute) |
| Between Contacts and coil | 1500VAC(for one minute) |
| Operate Time | 10ms |
| Release Time | 5ms |
| Temperature Range | -40℃to+70℃(Class F:85℃) |
| Shock Resistance | Operating Extremes: 10G Damage Limits: 100G |
| Vibration Resistance | 10-55Hz, 1.5mm |
| Max. switching frequency | Mechanical:18,000operations/hr Electrical:1,800operations/hr |
| Humidity | 40-85% |
| Weight | Approx 13g |
| Life Expectancy | Electrical: 100,000 Operations(at30Operations/minute) |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
