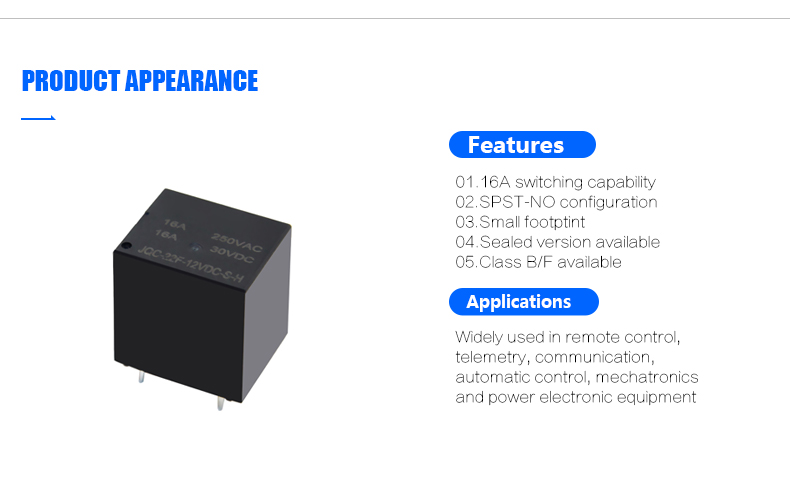

Beelee BL-JDQ-14F2 power relay 16A 4 pin automatic switching relay
BL-JDQ-14F2
minimum order
1 piece
Quantity:
- Place of Origin:Guangdong, China
- Brand Name:Relay
- Model Number:BL-JDQ-14F2
- Type:POWER RELAY
- Insulation Resistance:100MΩMin at 500VDC
- Between Contacts and coil:5000VAC(for one minute)
- Operate Time:20ms
- Release Time:10ms
- Temperature Range:-40℃ to+85℃
- Shock Resistance:Operating Extremes: 10G
- Vibration Resistance:10-55Hz
- Humidity:40-85%
- Weight:Approx 14g
PCB Relay is an electrical control device, an automatic switching element with isolation function. Its working principle is to use electromagnetic effect to control mechanical contacts to achieve the purpose of on-off.
01.PCB Relay is an electrical control device, an automatic switching element with isolation function. Its working principle is to use electromagnetic effect to control mechanical contacts to achieve the purpose of on-off.
02.It has the characteristics of safe use and long service life.
03.Applicable to a variety of household appliances and commercial equipment.
| Insulation Resistance | 100MΩMin at 500VDC |
| Dielectric Strength Between Open Contacts | 1000VAC(for one minute) |
| Between Contacts and coil | 5000VAC(for one minute) |
| Operate Time | 20ms |
| Release Time | 10ms |
| Temperature Range | -40℃ to+85℃ |
| Shock Resistance | Operating Extremes: 10G Damage Limits: 100G |
| Vibration Resistance | 10-55Hz,Double amplitude of 1.5mm |
| Max. switching frequency | Mechanical:18,000operations/hr Electrical:1,800operations/hr |
| Humidity | 40-85% |
| Weight | Approx 14g |
| Life Expectancy | Electrical: 100,000 Operations(at30Operations/minute) |
| Mechanical: 10,000,000 Operations(at30Operations/minute) |
