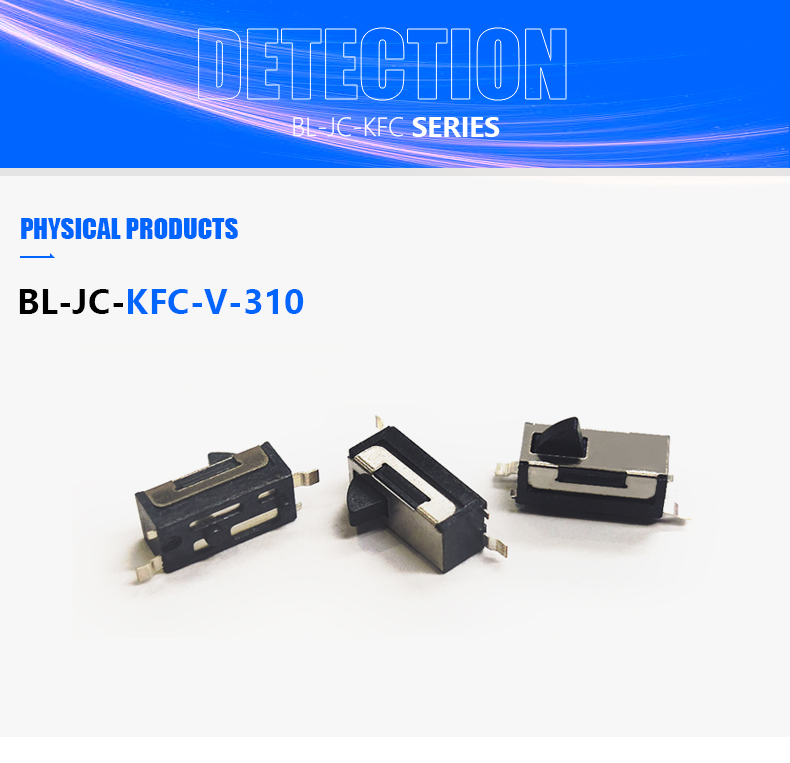

Beelee BL-JC-KFC-V-310 tactile push button switch micro tact switch waterproof
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-JC-KFC-V-310
- Max. Current:1A
- Max. Voltage:16V
- Switching withstand voltage:AC500V for 1 minute, no breakdown and flashover.
- Contact resistance:≤200 MΩ
- Insulation resistance:≥50 MΩ
- Operating Force:20g±10g
- Service life:≥30000 Cycles
01.This specification is applied to the requirements for sense switch

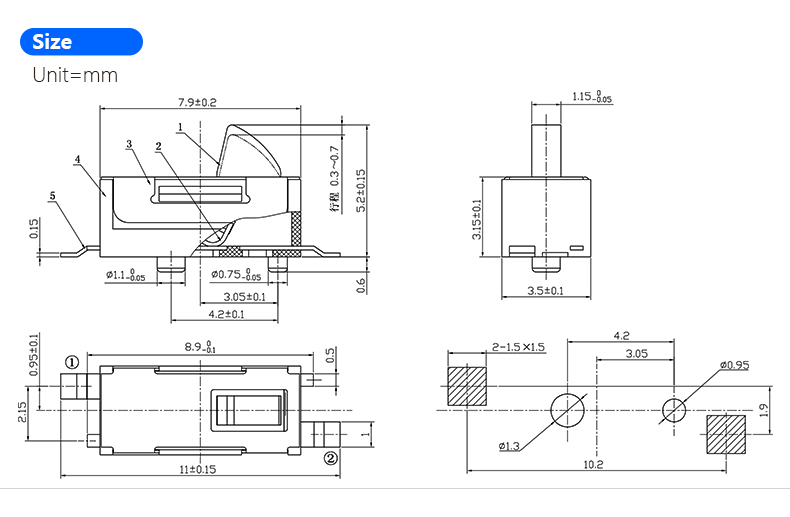

02.Style and dimension: shall conform to the assemble drawings
03.Following the soldering process,do not try to clean the switch with a solvent or the like.
04.Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton.
| 1 | Ratings | DC16V 1A |
| 2 | Switching withstand voltage | AC500V for 1 minute, no breakdown and flashover. |
| 3 | contact resistance | ≤200 MΩ |
| 4 | Insulation resistance | ≥50 MΩ |
| 5 | Operating Force | 20g±10g |
| 6 | Service life | ≥30000 Cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
