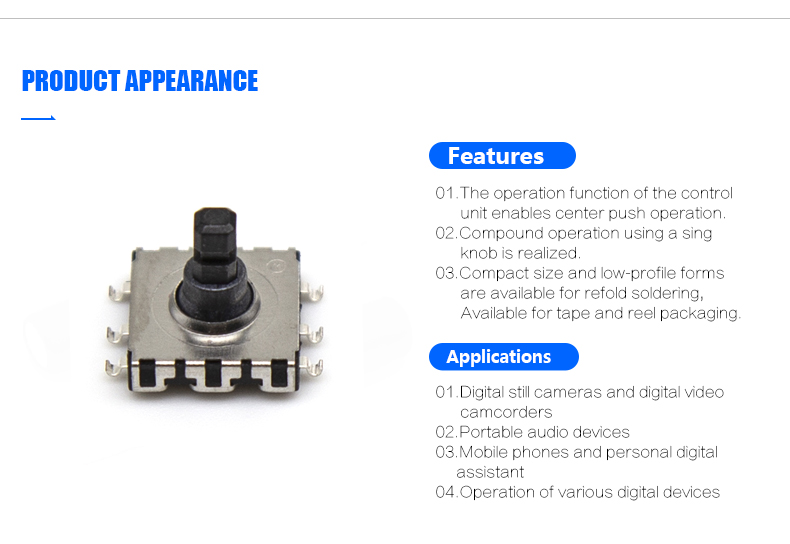

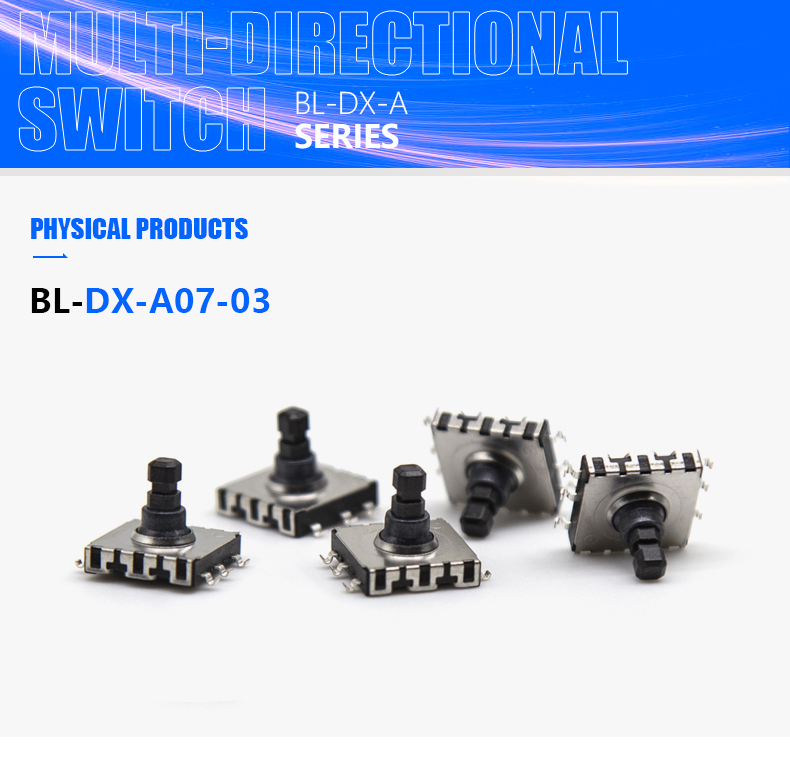

Beelee BL-DX-A07-03B smd tact switch multi way tactile push button switchfor keyboard buttons
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-DX-A07-03B
- Max. Current:0.1A
- Max. Voltage:12V
- LED:Other
- Rated Current:0.1A max
- Rated voltage:≤80mΩ
- Contact resistance:DC 12V
- Insulation Resistance:≥100MΩ min(DC100V)
- Compresslve strength:AC 250V 50Hz/1 mln

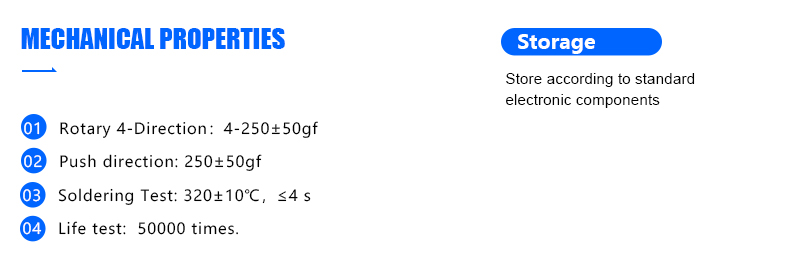

- Operating force:250±50gf
- Mechanical life:50,000 cycles
- Operation Stroke:0.2±0.05mm
The BL-DX-A07-03B Five to switch is This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT)
01.Lightly striking the center of the stem at a rate encountered in normal use (3 to 4 operations per sec),Bounce shall be tested when “ON” and “OFF”
02.Placing the switch such that the direction of switch operation is vertical and then applying static load of 2times operating force to the center of the stem; the travel distance for the switch to come to a stop shall be measured.
03.Following the soldering process,do not try to clean the switch with a solvent or the like.
| Rated Current | 0.1A max |
| Rated voltage | ≤80mΩ |
| Contact resistance | DC 12V |
| Insulation Resistance | ≥100MΩ min(DC100V) |
| Compresslve strength | AC 250V 50Hz/1 mln |
| Operating force | 250±50gf |
| Mechanical life | 50,000 cycles |
| Operation Stroke | 0.2±0.05mm |
| Temperature Range | -30℃~+85℃ |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
