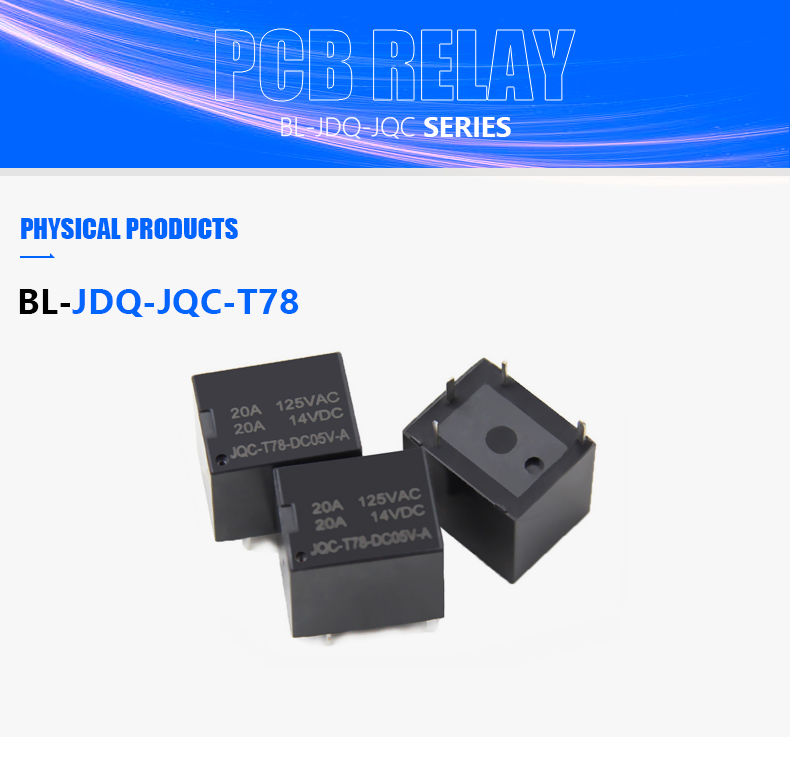

Beelee automotive relay 30a 240vac relay 12v 4pin relay
BL-JDQ-T78
minimum order
1 piece
Quantity:
- Place of Origin:Guangdong, China
- Brand Name:Relay
- Model Number:BL-JDQ-T78
- Type:POWER RELAY
- Insulation Resistance:100MΩMin at 500VDC
- Between Contacts and coil:500VAC(for one minute)
- Operate Time:10ms
- Release Time:5ms
- Temperature Range:-40℃to+85℃
- Vibration Resistance:10-55Hz, 1.5mm
- Humidity:35-85%
- Weight:Approx 6g

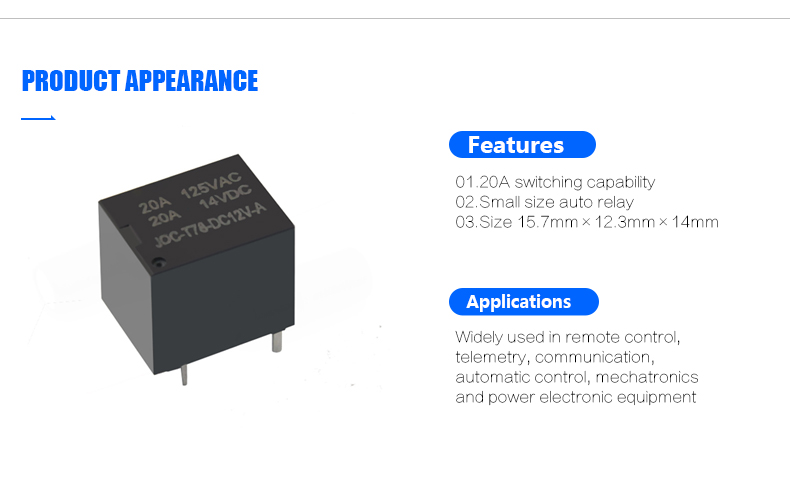

01.20A switching capability
02.Small size auto relay

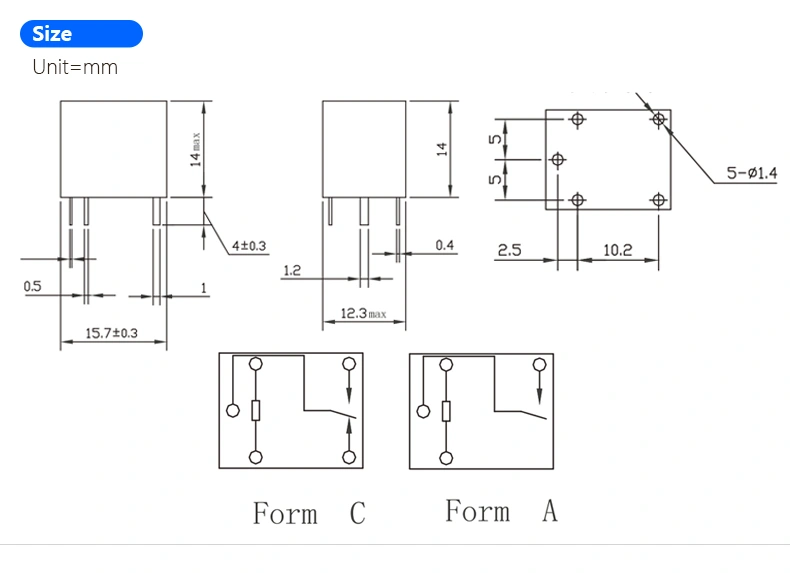

03.Size:19.2*15.4*15.4
| Insulation Resistance | 100MΩMin at 500VDC |
| Dielectric Strength Between Open Contacts | 500VAC( for one minute) |
| Between Contacts and coil | 500VAC(for one minute) |
| Operate Time | 10ms |
| Release Time | 5ms |
| Temperature Range | -40℃to+85℃ |
| Shock Resistance | Operating Extremes: 10G Damage Limits: 100G |
| Vibration Resistance | 10-55Hz, 1.5mm |
| Max. switching frequency | Mechanical:18,000operations/hr Electrical:1,800operations/hr |
| Humidity | 35-85% |
| Weight | Approx 6g |
| Life Expectancy | Electrical: 100,000 Operations(at30Operations/minute) |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
