Beelee 50mA 3 pin smd micro switch wireless micro switch for automotive electronics
- Certification:CB
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:BL-JC-2C2
- Max. Current:50mA
- Max. Voltage:12V
- Operating Temperature Range:-20℃~70℃
- Bounce:ON-3msec.max
- Operating Force:Operating Force:550±30gf
- Contact Travel:0.40±0.2mm
- Stem Strength:20N.min.
01.This specification is applied to the requirements for TACTILE SWITCH (MECHANICAL CONTACT)

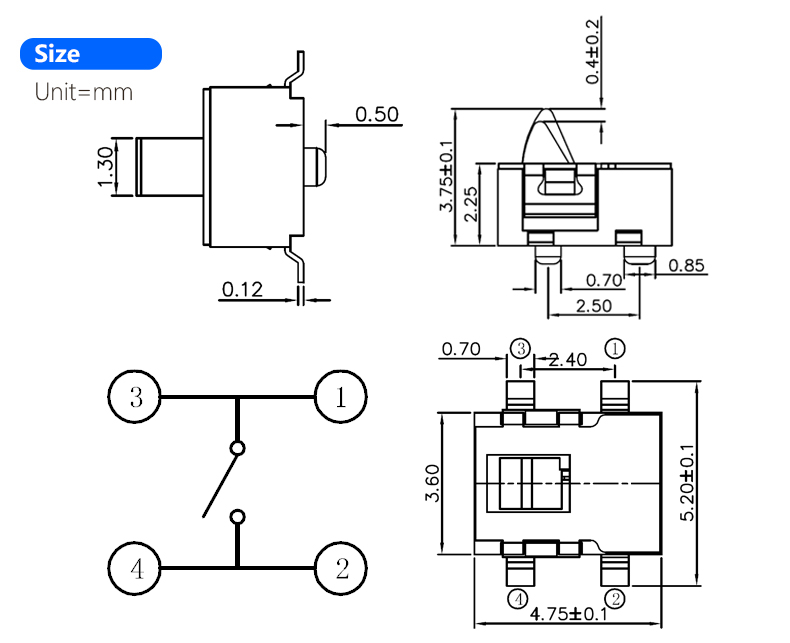

02.Style and dimension: shall conform to the assemble drawings

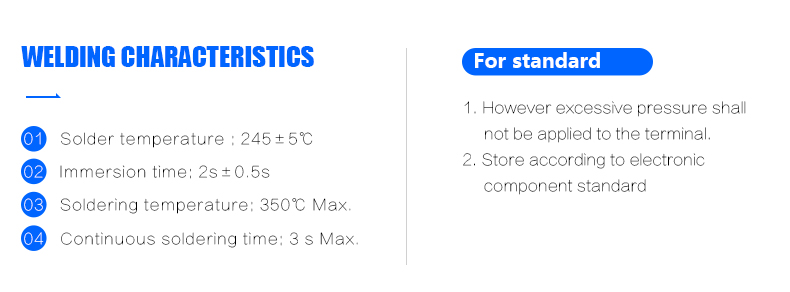

03.Following the soldering process,do not try to clean the switch with a solvent or the like.
04.Preservation under high temperature and high high humidity or corrosive gas should beavoided Especially . When you need to preserve for a long period ,do not open the carton.
| Ratings | 12V DC, 50mA |
| OPERATING FORCE | 550±30gf |
| Temperature range | -20℃~70℃ |
| Service life | 100000 Cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
