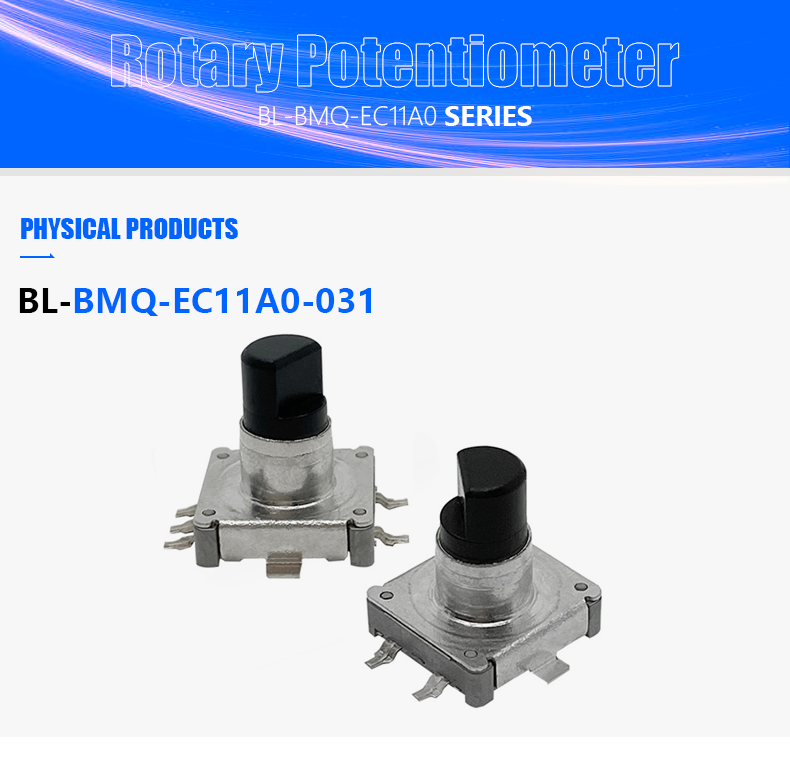

Beelee 360 degree rotary encoder sensor for food packaging machine

• Model Number:BL-BMQ-EC11A0-031
• Type:ROTARY ENCODER
• Place of Origin:Guangdong, China
• Brand Name:Beelee
• Usage:Location
• Theory:Pulse output
• Output:Number of pulses in 360° rotation
• Description:BL-BMQ-EC11A0-031 Rotary Encoder
• Contact Resistance:≤100MΩ at DC 5V 1mA
• Insulation Resistance:100MΩ min at 250VAC
• Operation fore:500±200gf
• Rated voltage:DC 5V
• Operating current:10mA
• Ambient Temperature:15℃ to35 ℃
• Air pressure:Air pressure
• Travel of switch:0.5±0.3mm
• Push-life:30000±200cycles.(0.5 Travel)
• Humidity:25-85%

1.11mm size low-profile rotary encoder(incremental type) for microscopic current circuits , used in electronic equipment.
2.Can effectively 10mA current.
3.Operating temperature range -30 ℃ to 80 ℃.
