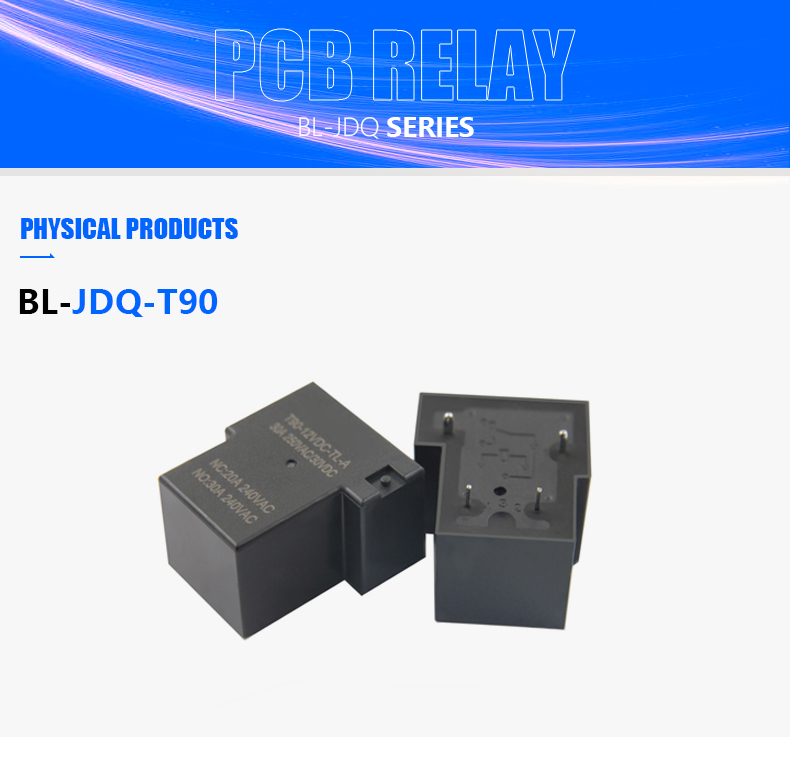

Beelee 30A high power current relay electrical relay for heater
BL-JDQ-T90
minimum order
1 piece
Quantity:
- Place of Origin:Guangdong, China
- Brand Name:GBeelee
- Model Number:BL-JDQ-T90
- Theory:GM relay
- Usage:Telecommunication

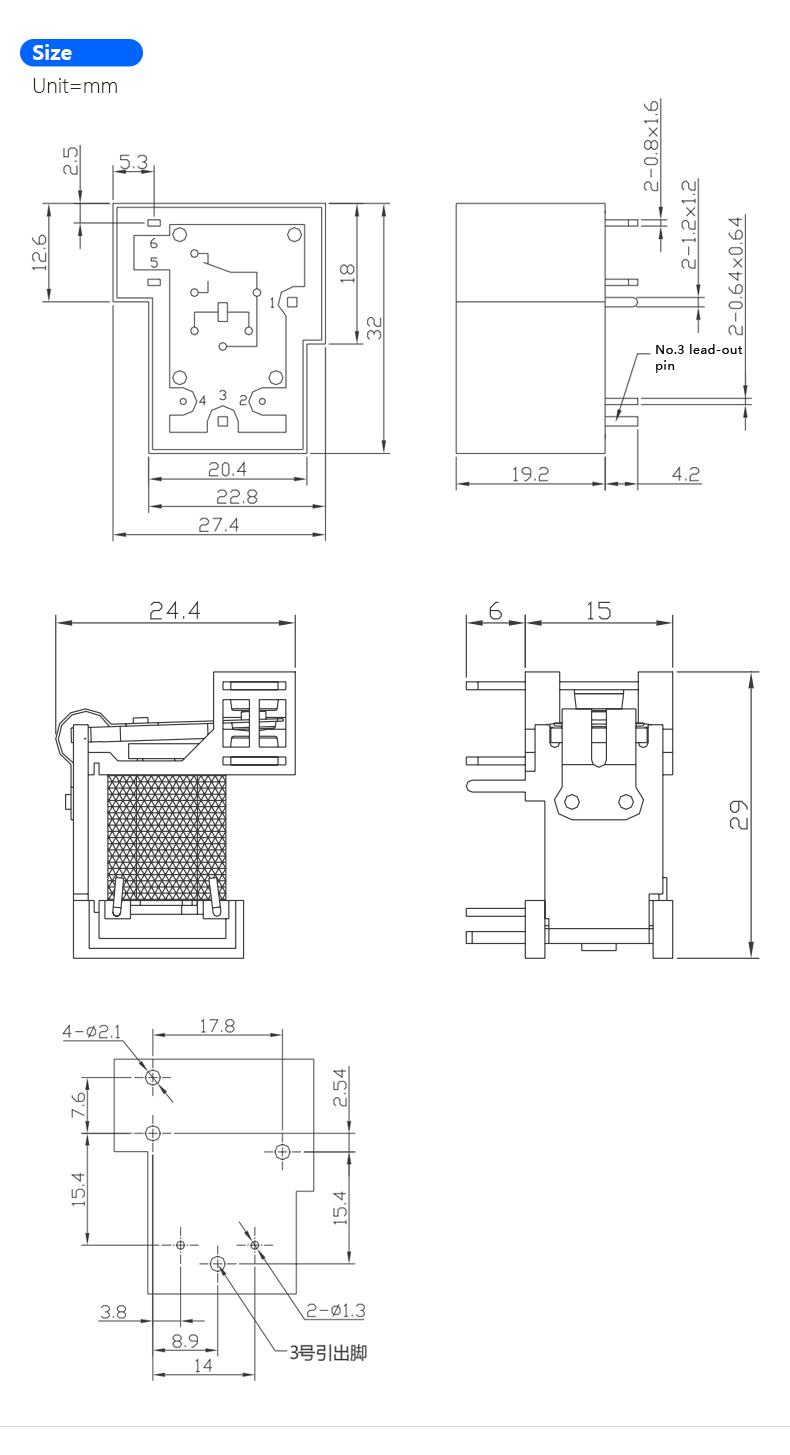

- Size:Miniature
- Protect Feature:Sealed
- Contact Load:High Power
- Insulation Resistance:100MΩMin at 500VDC
- Between Contacts and coil:1500VAC/2500VAC(for one minute)
- Operate Time:15ms
- Release Time:10ms
- Temperature Range:-40℃ to+70℃ (Class F:85℃ )
- Humidity:40-85%
- Weight:Approx 36g
- Vibration Resistance:10-55Hz, 1.5mm

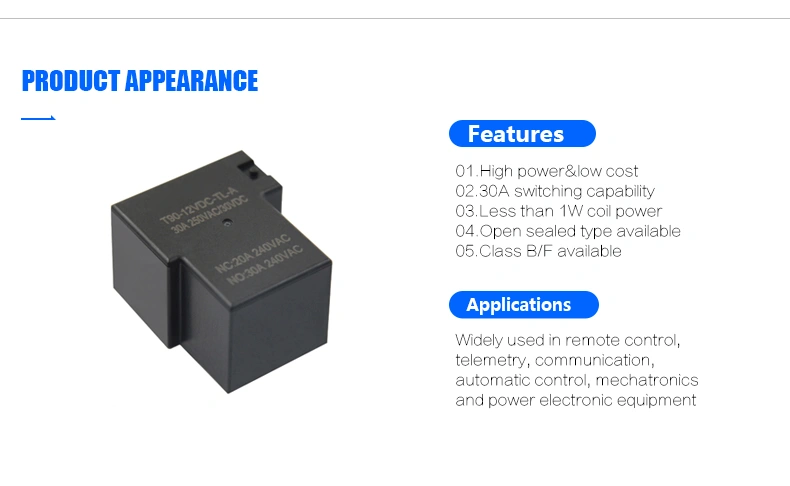

01. High power&low cost
02. 30A switching capability
03. Less than 1W coil power
04. Open sealed type available
05. Class B/F available
| Between Contacts and coil | 1500VAC/2500VAC(for one minute) |
| Operate Time | 15ms |
| Release Time | 10ms |
| Temperature Range | -40℃ to+70℃ (Class F:85℃ ) |
| Shock Resistance | Operating Extremes: 10G Damage Limits: 100G |
| Vibration Resistance | 10-55Hz, 1.5mm |
| Max. switching frequency | Mechanical:18,000operations/hr Electrical:1,800operations/hr |
| Humidity | 40-85% |
| Weight | Approx 36g |
| Life Expectancy | Electrical: 100,000 Operations(at30Operations/minute) |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
