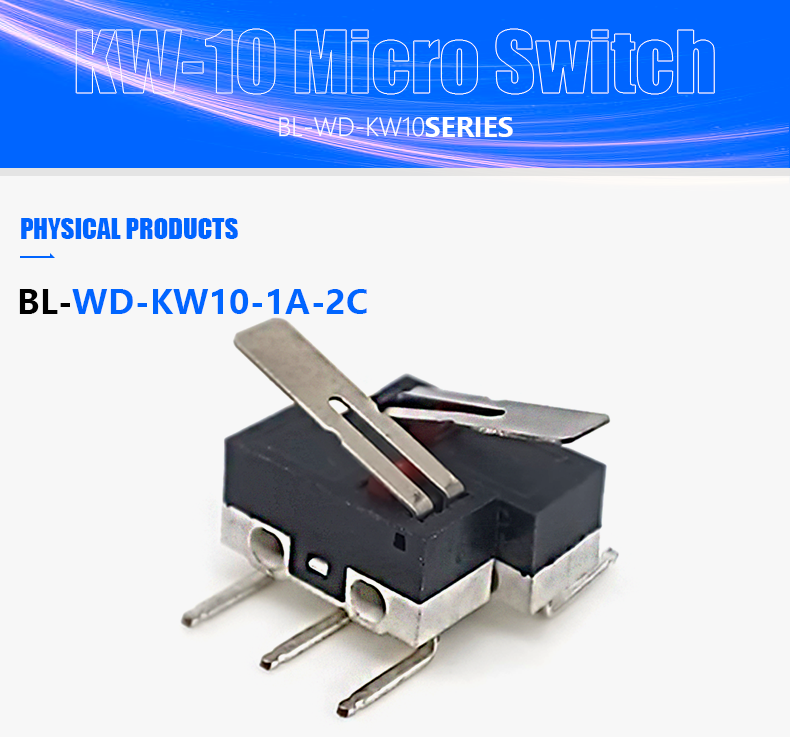

Beelee 3 pin smd micro switch latching micro switch for microwave oven
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Chian
- Brand Name:Beelee
- Model Number:BL-WD-KW10-1A-2C
- Max. Current:0.1A
- Max. Voltage:30VDC
- Operating Temperature:-25℃~85℃
- contact resistance:≤50mΩ
- Insulation resistance:≥100MΩ
- Electrical strength:500VAC(50-60Hz)/1min

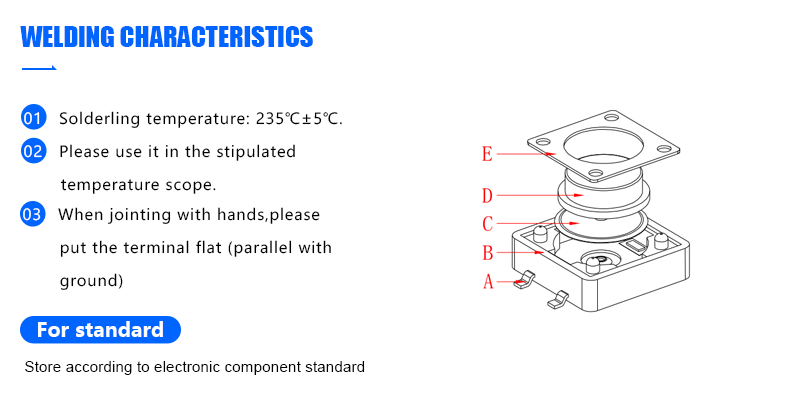

- Solder temperature:235±5℃
- Mechanical life:500,000cycles

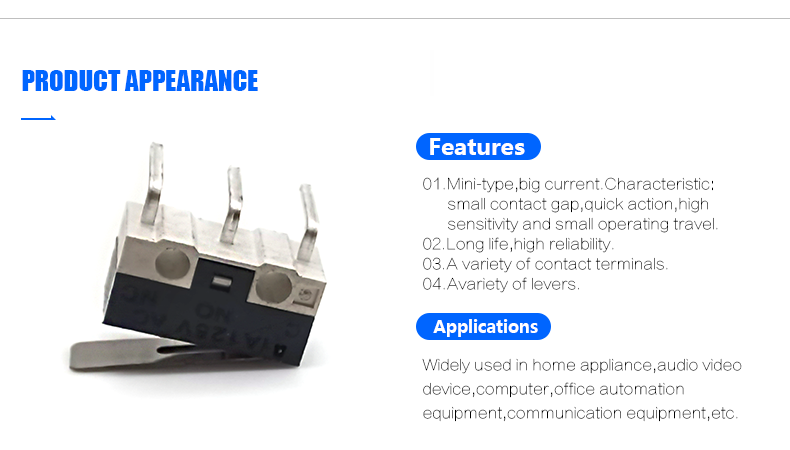

01.The BL-WD-KW10-1A-2C is Mini-type,big current.Charac- teristic:small contact gap,quick action,high sensitivity and small operating travel. Long life . A variety of contact terminals. A variety of levers
02.Please pay attention to the temperature class,if use it beyond the temperature class,switch standard characteristics cannot be guaranteed.
03.About the low operating force switches,please do not drop the switch so as to avoid damage to inside structure,because it is of special structure.
04.Please turn off the power when installing,disassembling,wiring work and maintenance check,otherwise,electric shock and burn will happen.
| Rating | 0.1A 30VDC |
| Storage temperature | -25℃~+85℃ |
| contact resistance | ≤50mΩ |
| Insulation resistance | ≥100MΩ |
| Electrical strength | 500VAC(50-60Hz)/1min |
| Solder temperature | 235±5℃ |
| Mechanical life | 500,000cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
