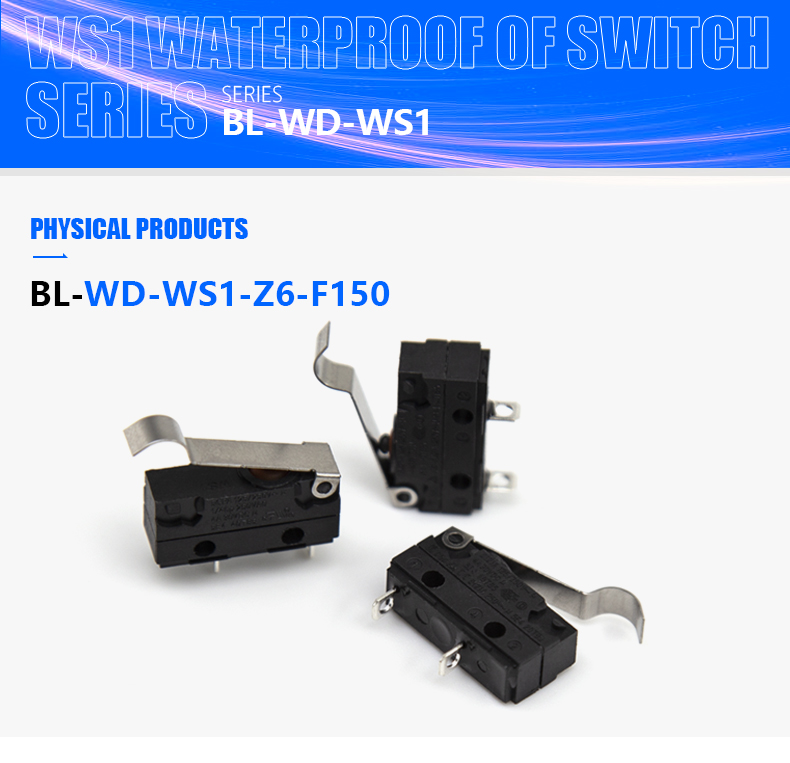

Beelee 2A wireless micro switch SMT 2 pin micro switch
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee
- Model Number:WS1-Z6-F150
- Max. Current:2A
- Max. Voltage:250V
- Insulation resistance:100MΩ Min
- Test voltage:AC1000V/1500V
- contact resistance:50mΩ Max
- Eoperating force:0.5N Max
- operating position:13.7±0.8mm
- DEGREE PROTECTION:IEC IP67

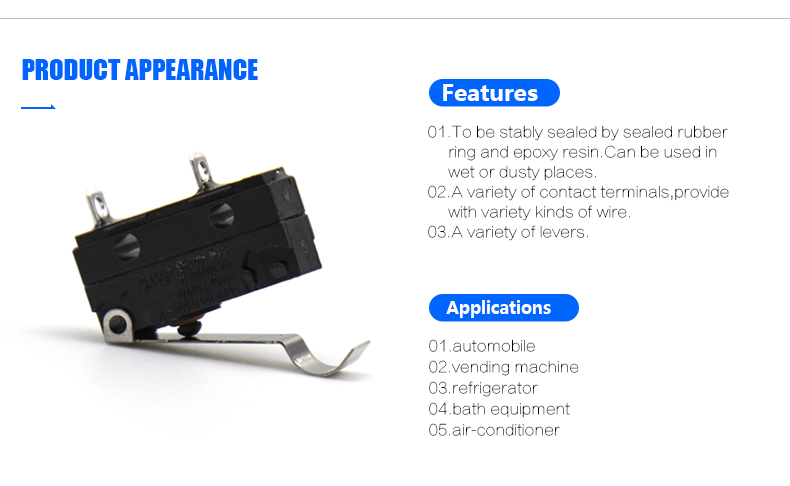

01.The BL-WD-WS1-Z6-F150 is Nice appearance,tight configuration.Characteristic:small contact clearance, quick action,high sensitivity and small operating travel.
02.Please pay attention to the temperature class,if use it beyond the temperature class,switch standard characteristics cannot be guaranteed.
03.About the low operating force switches,please do not drop the switch so as to avoid damage to inside structure,because it is of special structure.
04.Please turn off the power when installing,disassembling,wiring work and maintenance check,otherwise,electric shock and burn will happen.
| Ratings ELECTRONICAL LIFE TEMPERATURE | 5(2)A125/250V |
| 5GPA 125/250VAC 1/4hp 250VAC | |
| 4A 30VDC 5E4 40T85 | |
| Insulation resistance | 100MΩ Min |
| Test voltage | AC1000V/1500V |
| contact resistance | 50mΩMax |
| OPERATING FORCE | 0.5N Max |
| operating position | 13.7±0.8mm |
| DEGREE PROTECTION PROVIDED BY ENCLOSURE | IEC IP67 |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
