Beelee 12 pin dip switch black SMT digital patch toggle dial switch for remote control
- Certification:RoHS
- Whether the smart:NO
- Place of Origin:Guangdong, China
- Brand Name:Beelee

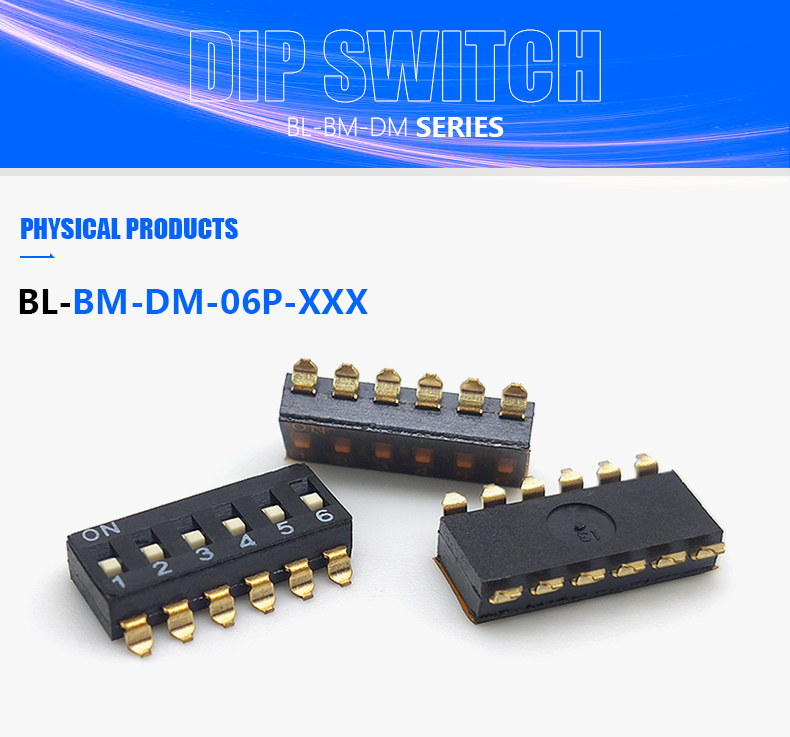

- Model Number:BL-BM-DM-06P-XXX
- Max. Current:25mA
- Max. Voltage:24V
- Contact rating:25mA 24VDC/100mA 50VDC
- Contact resistance:≤100mΩ
- Insulation resistance:100mΩ min at 500VDC
- Dielectric Strength:500VDC/1min
- Operating force:1000g Max
- Travel:0.9mm

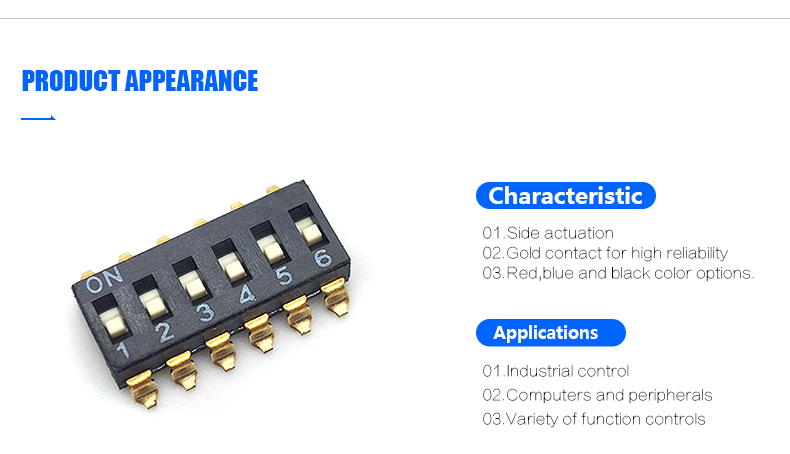

For the dip switch, there are two pins up and down on the back corresponding to each key. Turn it to the on side, and the upper and lower pins are connected; Otherwise, it will be disconnected.
01.For the dip switch, there are two pins up and down on the back corresponding to each key. Turn it to the on side, and the upper and lower pins are connected; Otherwise, it will be disconnected.
02.The whole terminal is plated with gold to prevent oxidation and blackening and improve service life.
03.Double shrapnel design can obtain better contact performance and stability.
| Contact rating | 25mA 24VDC/100mA 50VDC |
| Contact resistance | ≤100mΩ |
| Insulation resistance | 100mΩ min at 500VDC |
| Dielectric Strength | 500VDC/1min |
| Operating force | 1000g Max |
| Travel | 0.9mm |
| Mechanical life | 5000 cycles |
| Electrical life | 2000 cycles |
1.Q:Can I get sample from you?
A:Yes,we can provide the free samples for your testing,please contact us for free and tell us which product you need.
2.Q:Do you accept customization?
A:Yes,customization is acceptable,please contact our sales staffs for consult.
3.Q:Can you provide help for technical issues?
A:Yes,we have more than 15 years of research and development in the electronic switch industry. If you need technical help in the purchase process, please feel free to contact us
4.Q:How many types of switches do you have,and what about your quality?
A:We have 10 different types of switches for your choice,all our products is passed the ROHS and REACH,please trust we definitely could meet your quality stander.
